14.1.4 Precision digital process meter (MIKRON M60TS)
The M60TS is a 1/8 DIN digital process meter with front panel keyboard programmability. The M60TS is available in both 3
1/2 digit (for temperature below 2000 deg) and 4 digit (for temperatures above 2000 deg) versions. It provides monitoring and
display of the minimum and maximum process value input with keypad reset as a standard feature. The M60TS contains a built-
in 20 VDC power supply which simplifies connection to the “Infraducer”.
14.1.5 Precision digital process meter (MIKRON M60TD)
The M60TD offers all of the features of the M60TS as well as adjustable high and low set points. Set point adjustments are
made on the front panel keypad. The keypad requires coded entry to protect against accidental and unauthorized changes.
For more information about any of these meters, please request MIKRON Accessories Bulletin Number 1.
See figure 29 for mounting and dimensions.

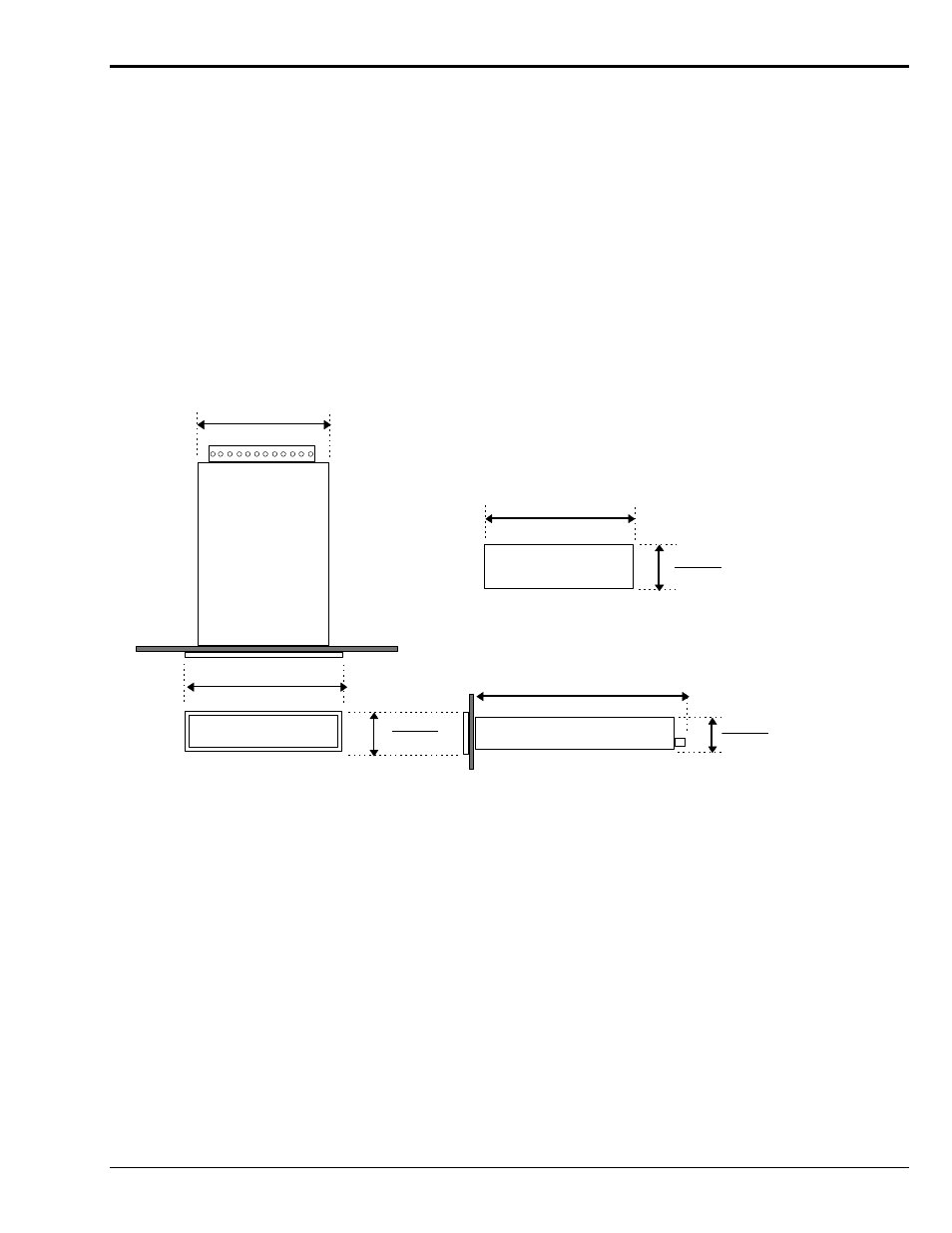

Figure 29 - Precision Digital Process Meters.
72mm
24mm
68mm
125mm max.
22mm
Cut out
68mm
22mm
OUTLINE & CUTOUT DIMENSIONS
(2.68 in.)
(2.68 in.)
(0.94 in.)
(2.83 in.)
(4.92 in.)
(0.87 in.)
(0.87 in.)
