7. Installation
The following installation instructions are provided to ensure a reliable and safe operation of the INFRADUCER. Follow
directions of those sections relevant to the options purchased.
7.1 Without protective jacket
The INFRADUCER must be installed using the mounting bracket, Part No. 11878. This is a light duty bracket designedIRU
indoor, low vibration applications. Refer to Figure 13 below for information and installation instructions.

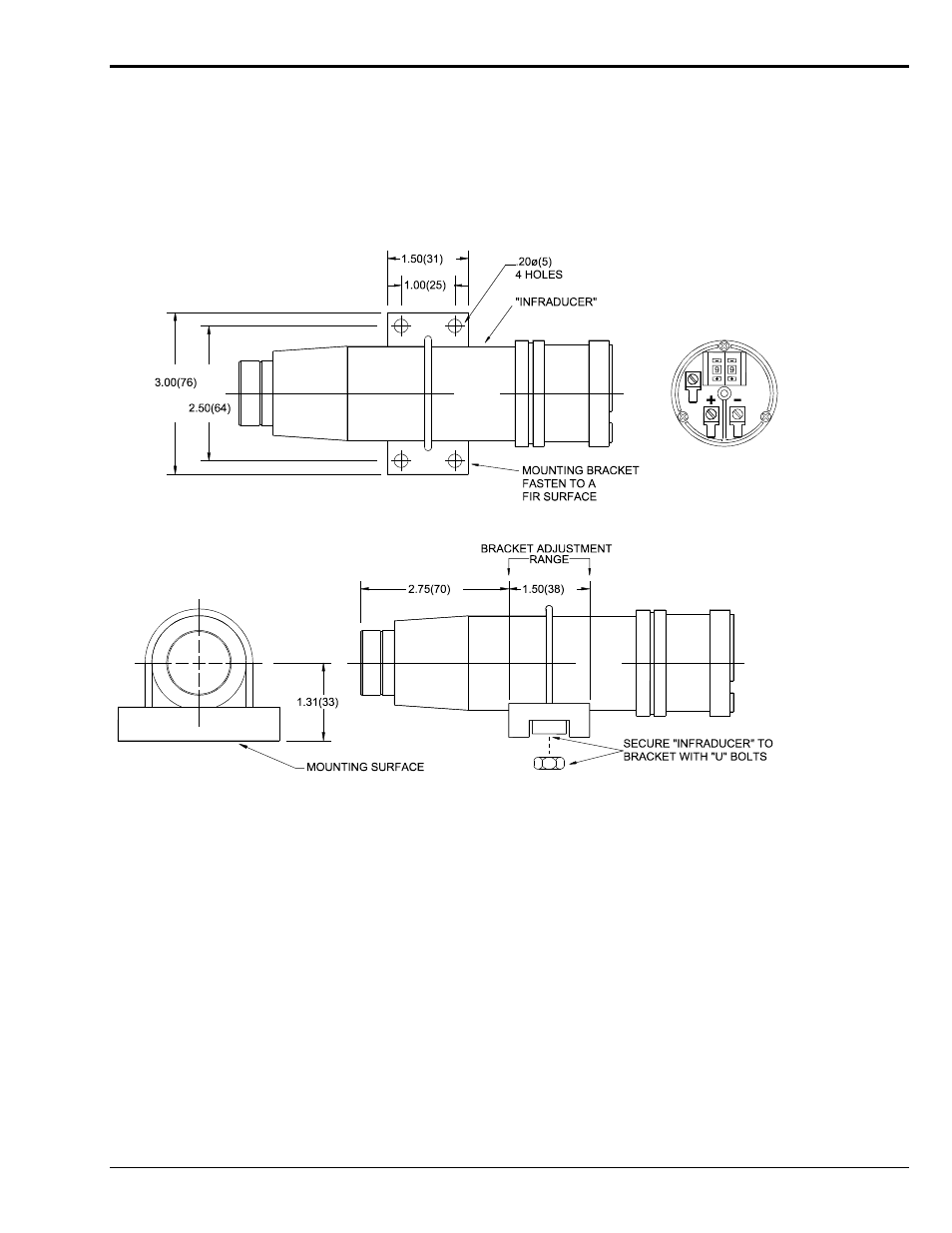

Figure 13 - Infraducer Mounting Method When Cooling Or Protective Jacket Is Not Used
7.2 With protective jacket
The M,.521 Protective Jacket is designed for heavy duty indoor and outdoor environments where the instrument is subject to
moisture, dust, vibration or shock.
The end cover supplied with the Protective Jacket is assembled in two sections shown in Figure 15. The inner section is
attached to the protective jacket with 3 removable screws. To access it, the 3 screws must be loosened, and the cover be twisted
slightly. This allows removal of both end covers to allow removal of the M67/67s from the jacket. The outer end cover in
Figure 15, allows access to the sighting system and emissivity switch setting. This feature means that wiring to the housing will
not be disturbed, as the conduit remains fixed to the protective jacket.
