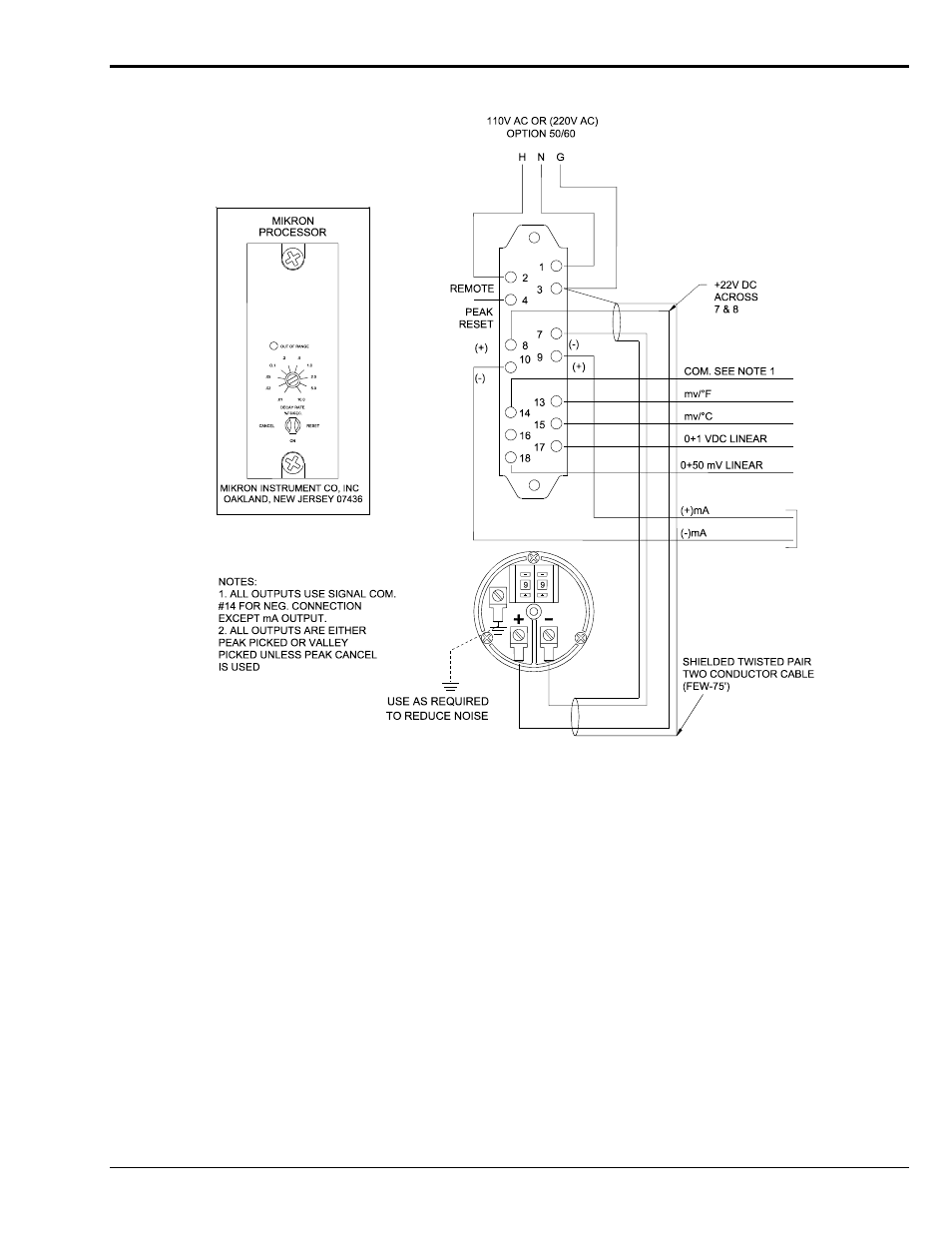

Figure 28 - M67EM Processor Wiring.
14.1.3 M67EM specifications
Input Signal Requirements:
4-20 mA linear from M67 output
Response Time Adjust:
10mS to 10 sec. Field adjustable
Peak/Valley Picker Decay Rate:
(Valley Picker optional) Continuously adjustable between 0.01 and 10% of full
scale/sound
Peak Picker Controls:
(Valley Picker optional) On, Cancel and Reset from front panel. Remote Reset
actuated by external SPST switch (customer supplied)
Standard Outputs (linear):
0-1V full scale; 0-50m VDC full scale; 1mV/Deg. F or C;
4-20mADC, 650 ohms max.
Output Supply Voltage:
+24VDC to power M67
Ambient Temperature range:
0 Deg. C to 50 Deg. C (32 Deg. F to 120 Deg. F)
Size:
64mm(W) x 128mm(h) x 230mm(D) (2.50 in x5.00 in x 9.00 in)
Panel Cutout
58mm x 108mm (2.25 in x 5.00 in)
