Hired-Hand Emergency Back-Up and Alarms: Secondary Sensing System User Manual
Page 32
Manual No. 4801- 2997 Rev 7-08
Secondary Sensing System
32 of 40
12.6 S
3

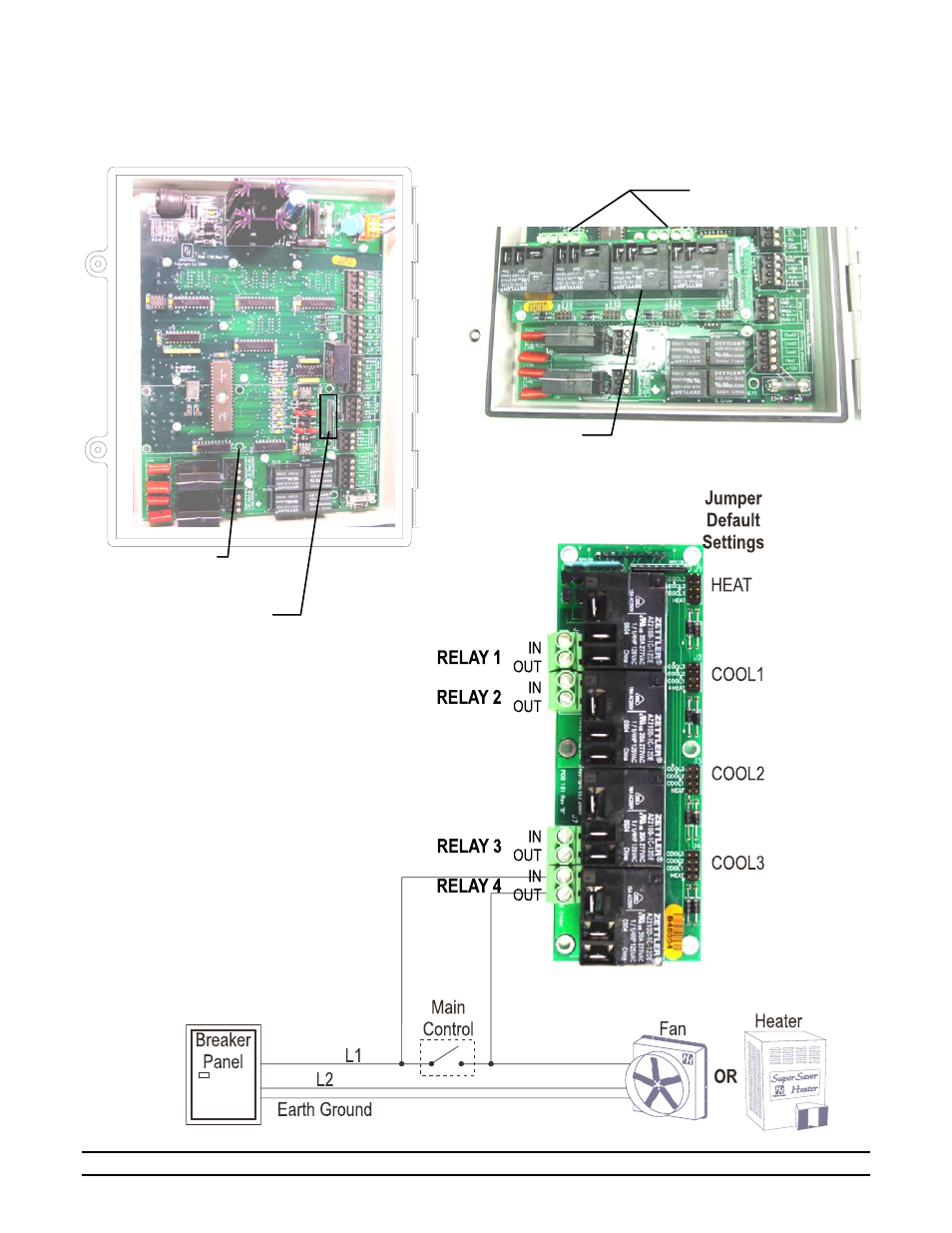

Relay Card Wiring
Secondary Sensing System
Inset A
Relay Card
Header Connection
For Relay Card
Relay Card
Six Stand-Off
Attachment Holes
Wire
Terminals
NOTE: Ensure the Relay Card connector
and the PCB header are properly
aligned during stand-off and Relay
Card installation.
Inset A
Relay Card
NOTE: The Relay Card is necessary on
Stand-Alone systems ONLY. If
S
3
is used in conjunction with
Evolution 3000/3001, this relay
card is optional.
