Part No. 4801-5309 rev 10-05 Evolution Back-Up 6 of 16
Type of Stage Operation Jumper Assignment
Cool Negative Fan COOL 1
Cool Negative Tunnel Fan COOL 2
Cool Tunnel Fan COOL 3
Heat Stage HEAT
Stage not on Back-Up No Jumper Installed
Additional information can be found in the Evolution 3000 Owners Manual, Part Number 4801-5307.
8. Day-to-Day Back-Up Operating Instructions
8.1 Toggle Sequence of Mode Button

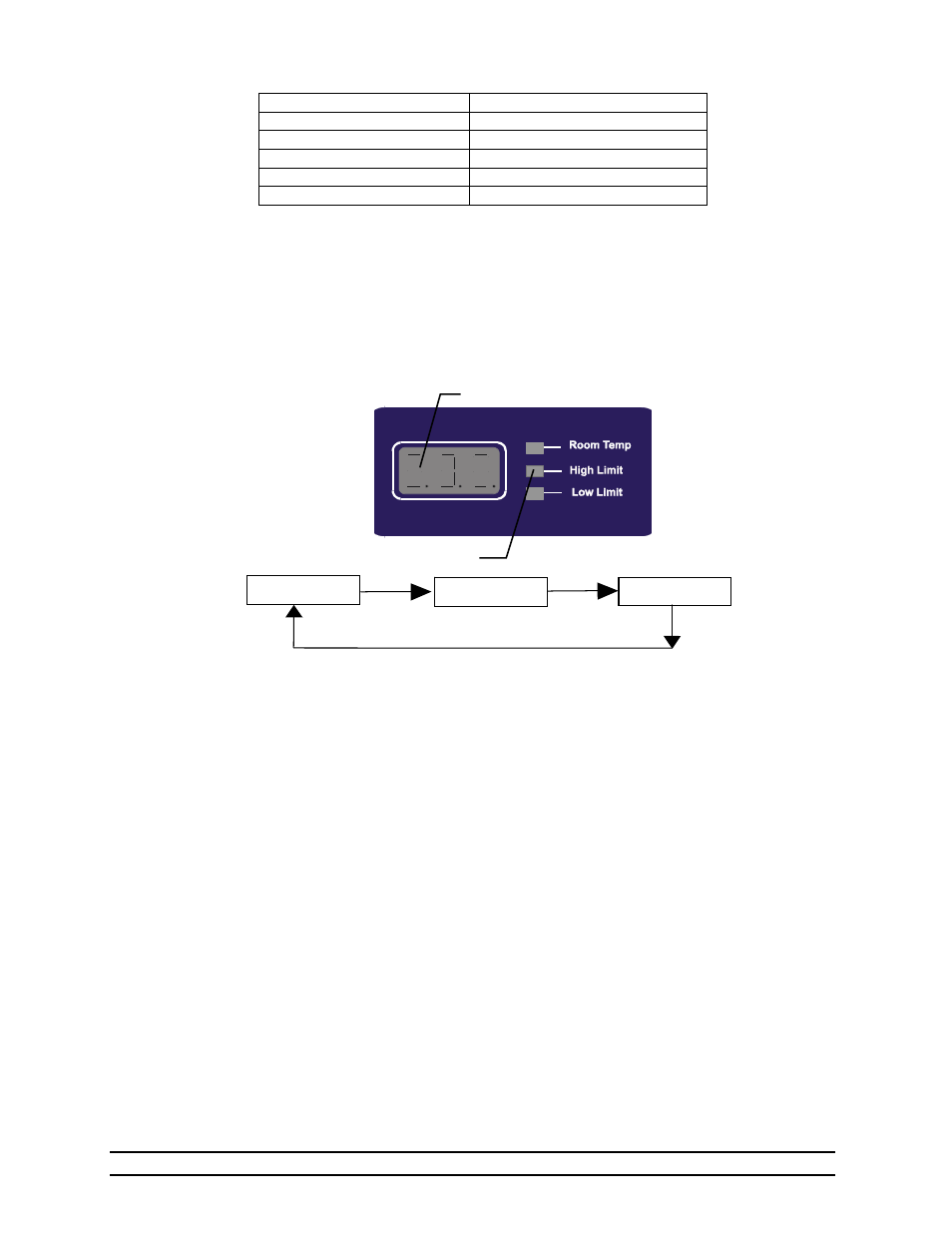

Continuously pressing the Mode button cycles the display through the parameter sequence as illustrated
below. The parameter data is shown in the display.
8.2 Checking/Adjusting Temperatures, and Settings
When you press the Mode button, watch the green LED’s beside the main display. Whichever LED is lit is
the parameter you are viewing: “Room Temp”, “High Limit”, and “Low Limit” values. Note: To adjust
these parameters, press the Mode button until you see the parameter you want to adjust, then use the +
button to increase the value, and the - button to decrease the value.
Room Temperature - The average of the sensors located inside the house.
High Limit - The temperature inside the house at which the controller will turn on the first Evolution
Back-Up cooling stage.
Low Limit - The temperature inside the house at which the controller will turn on the first Evolution
heating stage.
9. Set Limits
The EV-3000 Back-Up System requires setting of a High Limit and a Low Limit at which cool/heat stages
will turn on. To determine where to set the High Limit and the Low Limit, first decide on a target
temperature of the house. This is usually the target temperature of the primary controller. Then set the
High Limit to a temperature several degrees above the desired target temperature. Set the Low Limit to a
temperature several degrees below the desired target temperature. Note: It is recommended that the
High Limit be at least 10º above the room’s target temperature and that the Low Limit be 10º below
the room’s target temperature.
Room Temp High Limit Low Limit
Main Display
Display LEDs
