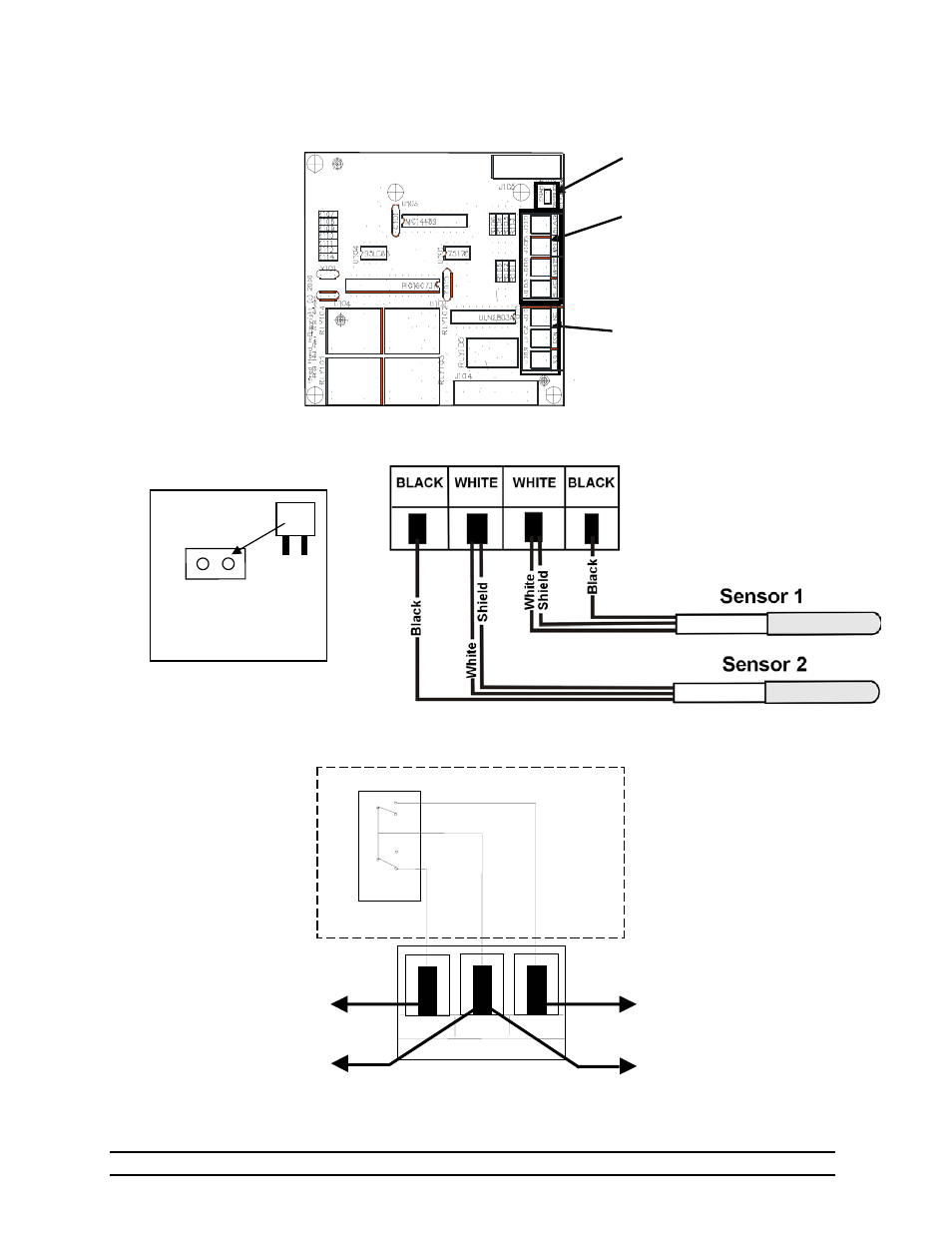

12.2 Wiring the Back-Up Board Sensors and Alarm Connections
Inset A
Jumper Connection to
Enable Sensor 2
Inset B
Sensor 1 & 2 Connections
Sensor 2
Enabled
Installed – Enabled
Vacant – Disabled
Jumper
Inset A
Inset B
Inset C
NOTE: Tape Shields to
Prevent Damage.
Inset C
Back-Up Alarm Connection
Internal Wiring
Switch
Contacts
NO COM NC
BACK-UP ALARM
For a Parallel
Alarm Connection
For a Series
Alarm Connection
