Part No. 4801-5098 Farm Hand Vent Master 25

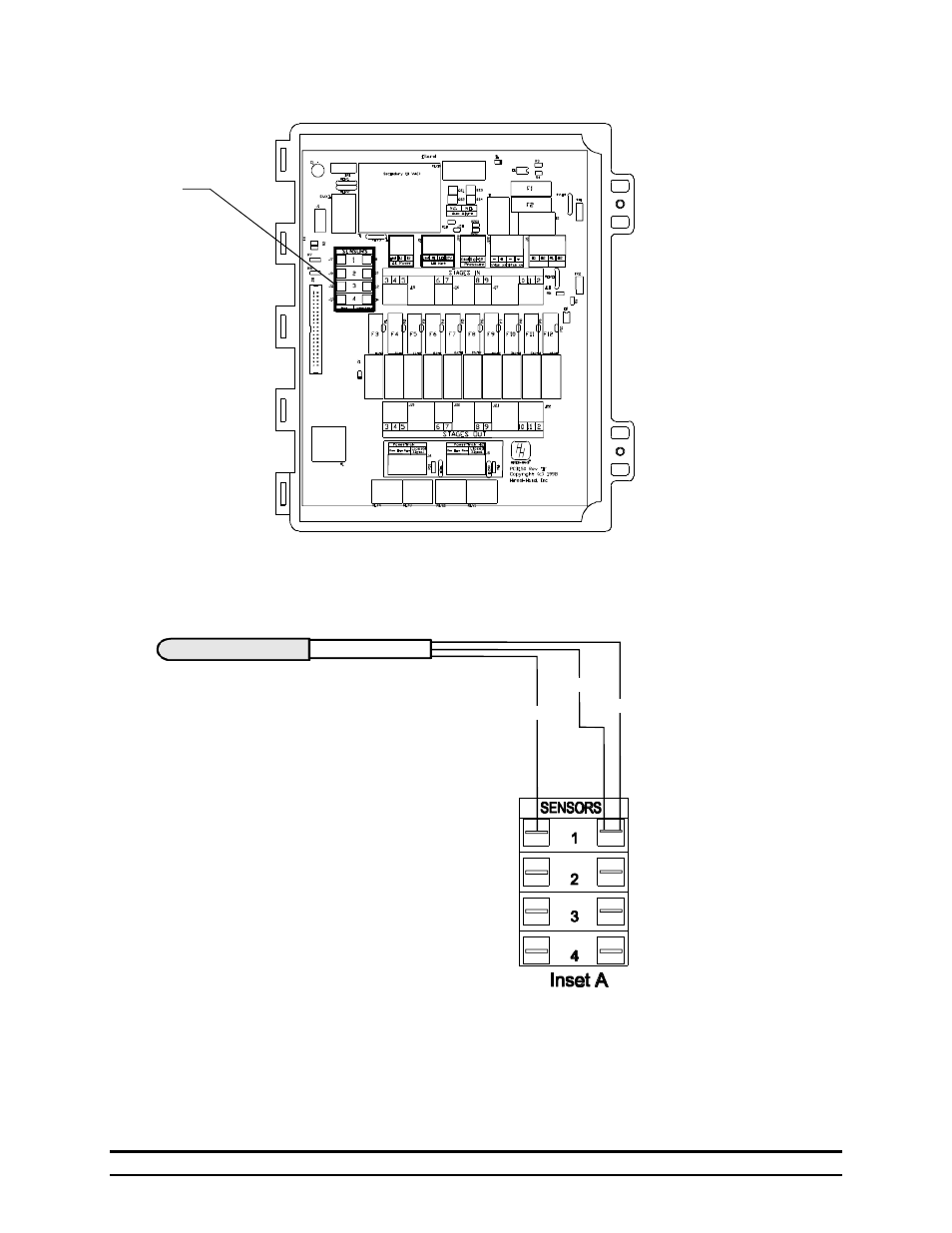

14.2 Connecting Sensors to the Vent Master
The controller has a switch for disabling Sensor 3. If you use a half house brood layout, you need to place
Sensor 3 in the non brood section of the house, and disable Sensor 3 by turning switch 4 of the Status
Switch Bank to off. (See “Rarely Changed Settings” for more information.)
Black
White
Shield
V FAN IN V FAN OUT
# 1
Inset A
