2 connecting equipment directly to a 4 st, Warning, Inset 1 – Hired-Hand Farm Hand Series: ST Temperature Controllers User Manual
Page 18
4801-5043 Rev 7/00
Farm Hand ST
17

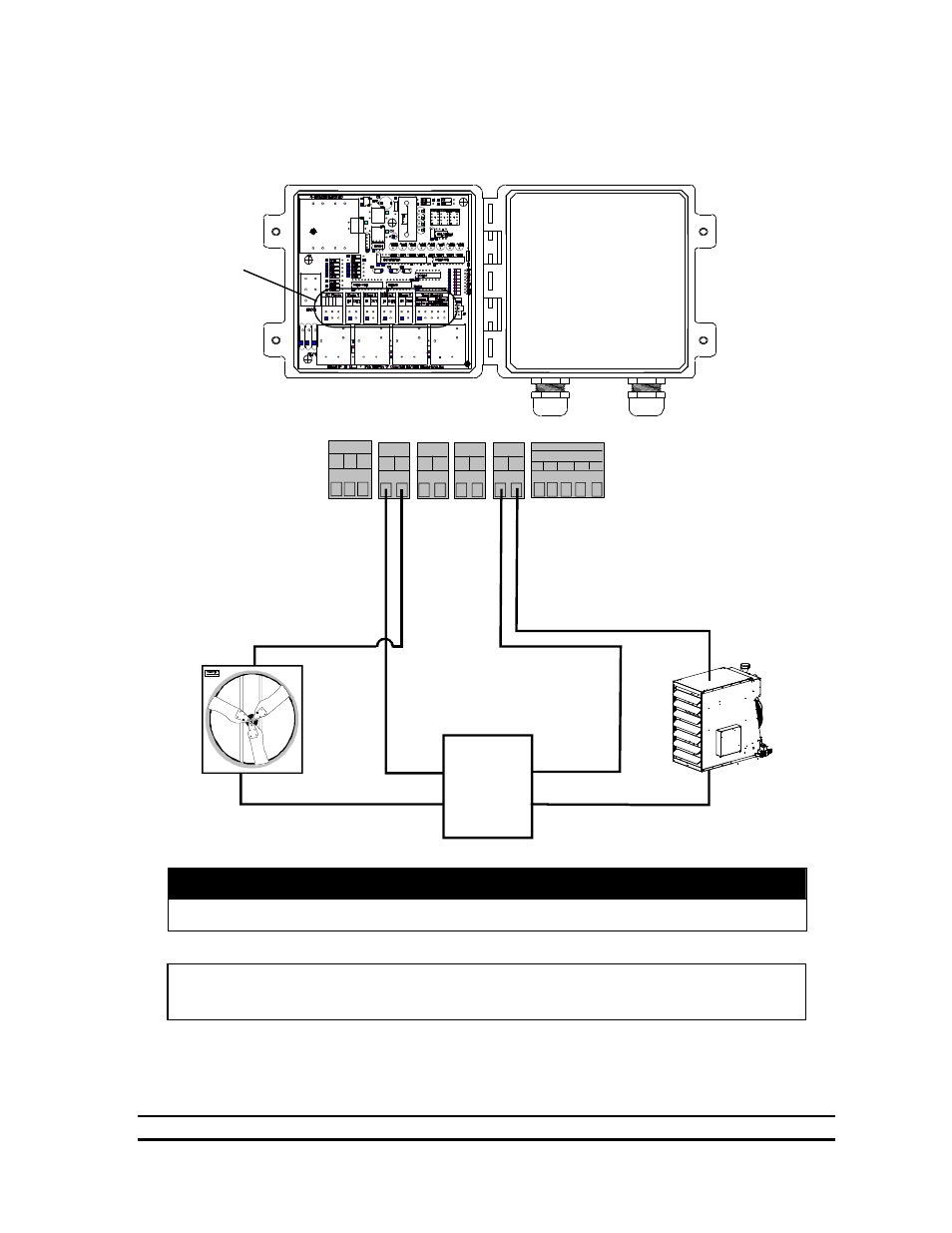

14.2 Connecting Equipment Directly To a 4 ST
AC Power
Stage 1
Stage 2
Stage 3
Stage 4
IN OUT
IN OUT
IN OUT
IN OUT
Sensor 1
Sensor 2
Blk Wht Shld Wht Blk
Temp. Sensors
Inset 1
Hot
Warning!
Warning: Do not connect more than 12 amps of load to a single stage!
Note: Hired-Hand, Inc. recommends the use of an external contact or relay
panel to drive equipment to guarantee longer life of the controller.
Inset 1
Neutral
Hot
Neutral
Breaker
Panel
Cooling
Heat
