Part No. 4801-5318 Rev 4-06 Evolution Variable Output Page 4 of 14
3. Introduction
The Evolution Variable Output models with Override Pot are Hired-Hand's latest addition to the electronic
controller product line. These additional models have the same operational features as the previous models
except the latest models contain the Intensity Control Pot. This Intensity Control Pot allows additional
functionality over the previous versions, including the ability to override the main control system or the ability to
use these units in conjunction with more primitive systems such as 24 hour time clocks for lights or thermostats
for fans. The Evolution Variable Output w/Override Pot is available in two versions: The 4KW/4HP model and the
8KW/8HP model.
The Evolution Variable Output models can be used in conjunction with Evolution 3000/3001 Control Systems,
Farm Hand Control Systems (Stage Master, etc.), alternative manufacturers, 24 hour Time Clocks as a stand-
alone unit, or to any dry contact control output for variable operation of lights or fans.
4. Specifications
4.1 Part Numbers and Electrical Ratings
Part No. Model No. Outputs
6607-8033 EV-VAR w/Override Pot 4KW / 4HP 2
6607-8034 EV-VAR w/Override Pot 8KW / 8HP 4
DEVICE RATINGS
Input Max Current (A)
PCB 174 1 A @ 120 VAC Fused At 1 A
Outputs for Each Circuit
Lights 2 KW @ 120 VAC Fused @ 20 A
Fans 2 h.p. @ 240 VAC Fused @ 20 A
4.2 Features
EV-VAR 4KW / 4HP EV-VAR 8KW / 8HP
1 Intensity Control Pot
(Controls the two output devices) 1 Intensity Control Pot
(Controls the four output devices)
2 Manual Override Switches
(3 positions: Variable – Off – On) 4 Manual Override Switches
(3 positions: Variable – Off – On)

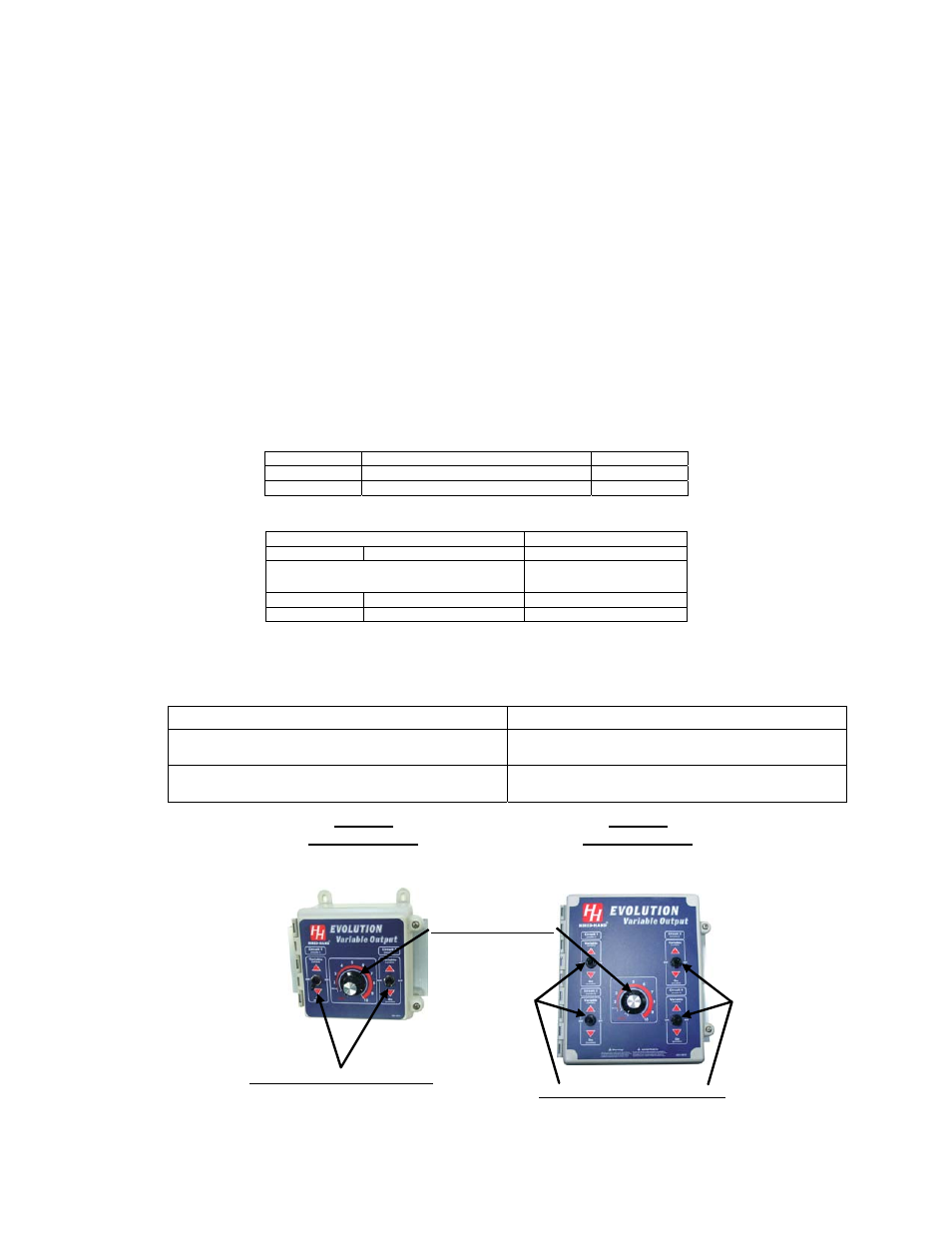

EV-VAR
w/Override Pot
8 KW
8 HP
EV-VAR
w/Override Pot
4 KW
4 HP
Intensity Control Pot
Two Manual Override Switches
Four Manual Override Switches
