Hired-Hand Evolution Series 3000/3001: Variable Output With Override Pot User Manual
Page 10
Part No. 4801-5318 Rev 4-06
Evolution Variable Output
Page 10 of 14
6.12 EV-VAR To Farm Hand Stage Master Wiring Connections

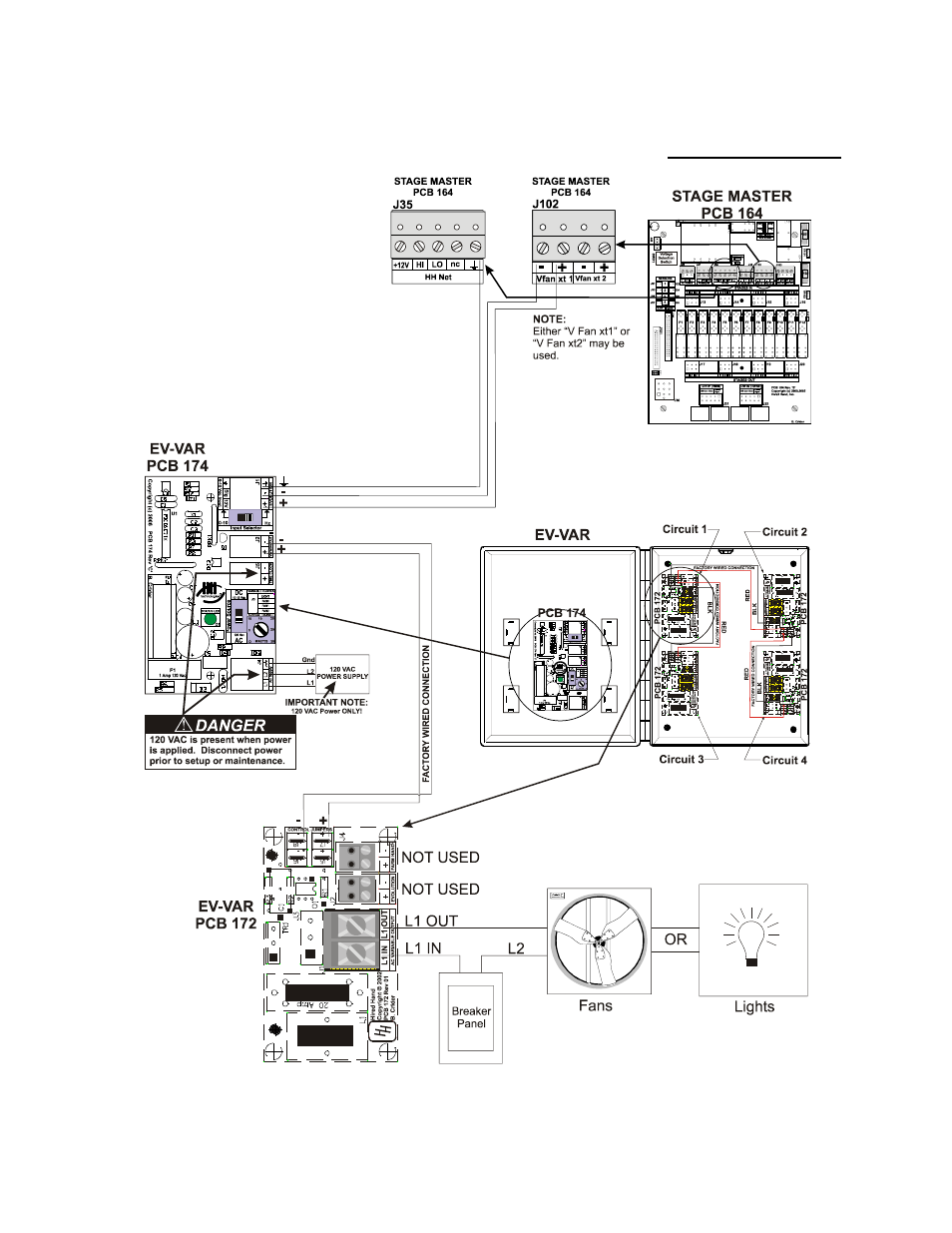

To control the EV-VAR output using a Farm Hand Stage Master controller, connect EV-VAR using the wiring diagrams below for
proper connections.
PCB 174 rev C or Later ONLY
NOTE:
The DC Ground connection
from PCB164 to PCB174 is
only necessary when the
Power Source selection
switch is set to DC Source.
