Hired-Hand Evolution Series 3000/3001: Variable Output With Override Pot - Manual (Page 13)

Part No. 4801-5318 Rev 4-06 Evolution Variable Output Page 13 of 14

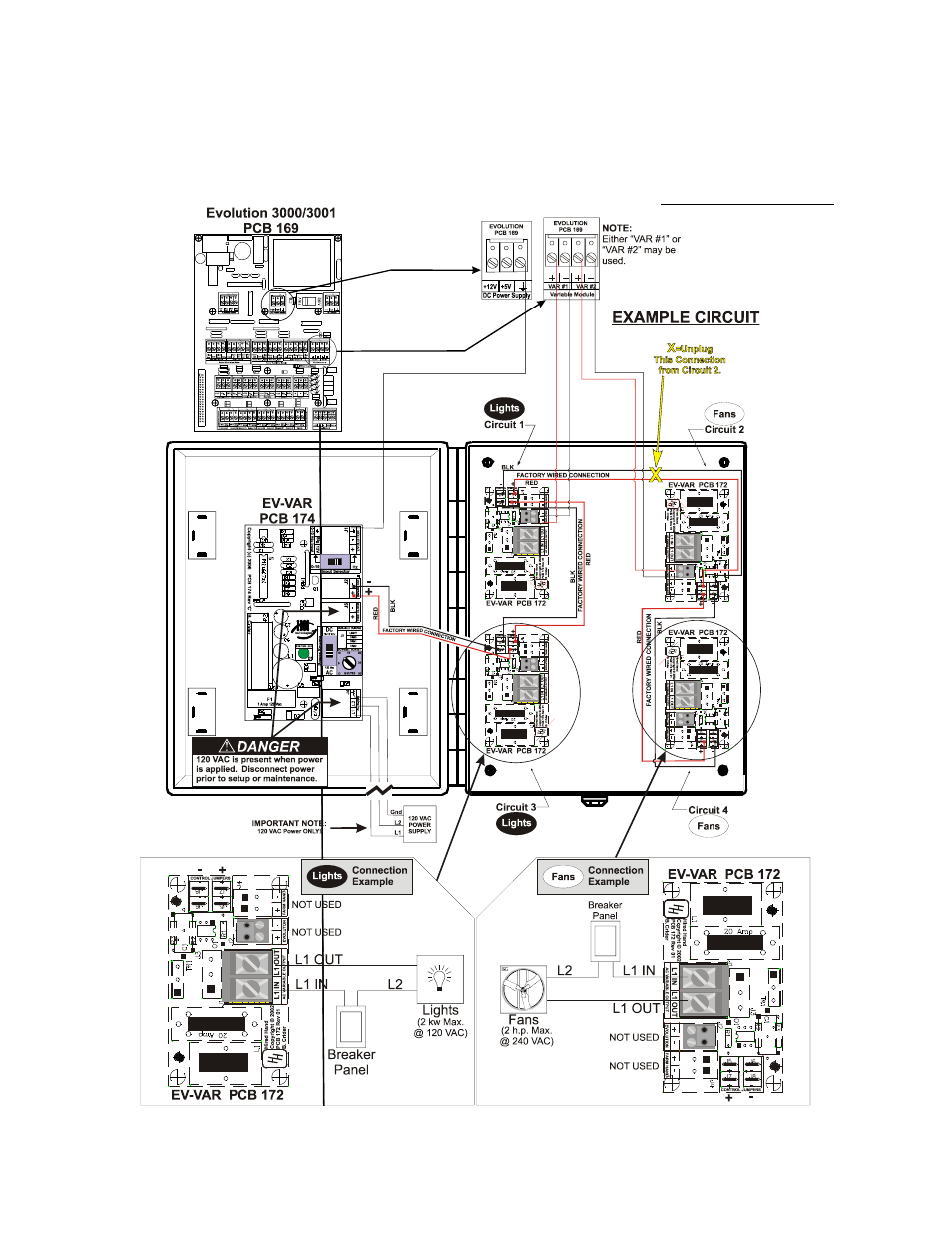

6.15 Separating Circuits to Operate Different Equipment
In some cases, you may want to operate a combination of lights and fans. This may be accomplished but only one can be operated
using the manual override pot. The following is an example of how one would wire two circuits for lights and then two circuits for
fans while integrated into the Evolution 3000.
NOTE: In this example, Manual Override using the Intensity Control Pot is only associated with the light circuit.
PCB 174 rev C or Later ONLY
