Hired-Hand Contactor Control System (CCS): 4, 8, or 12 Stage User Manual
Page 18
Contactor Control Systems
16

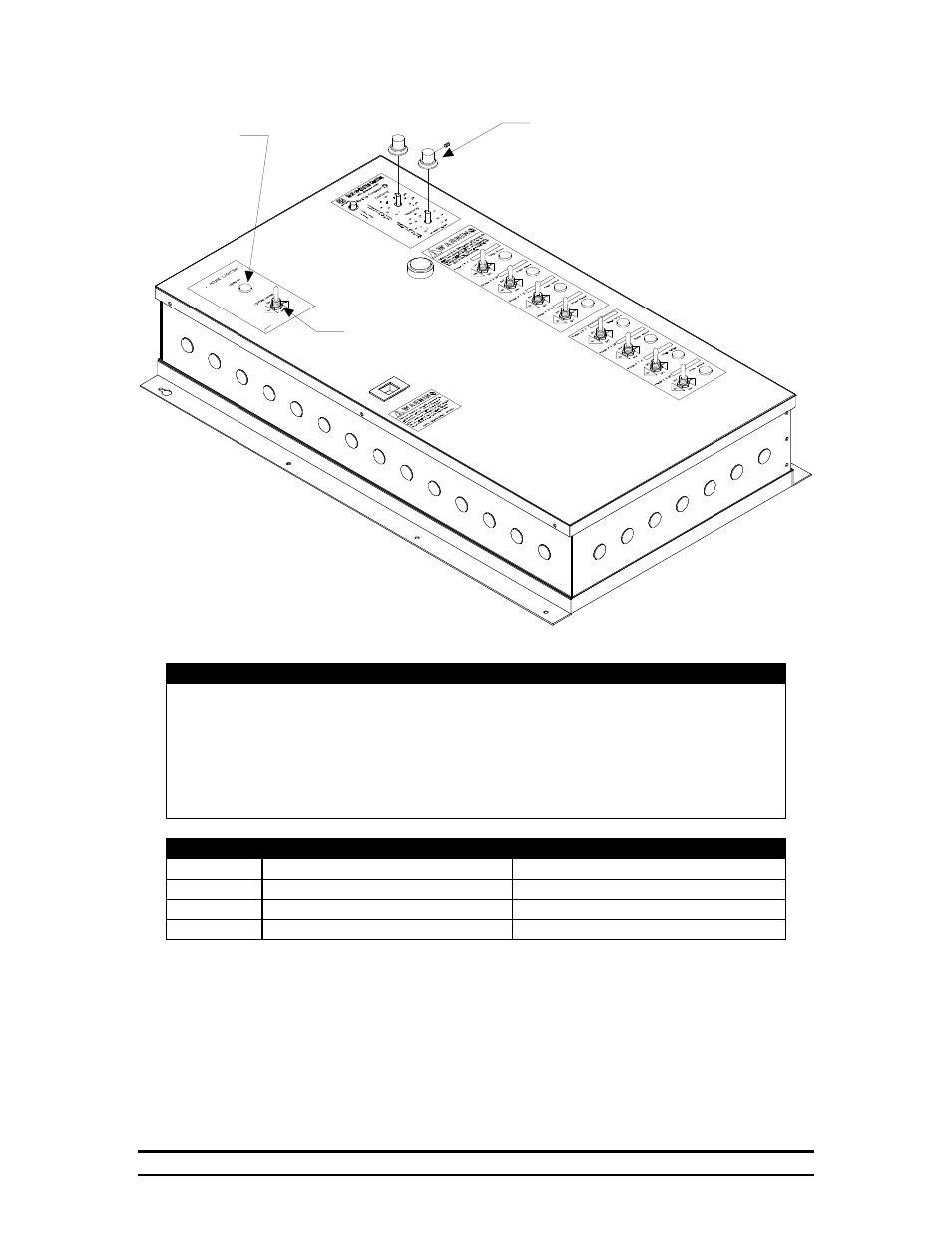

Ref Chart A
1039-2031
3001-2864
Part No.
Description
Application
1018-0104
STND_OFF LCBSB-10-01A-RT
All CCS Models with Back-up
1039-2031
KNOB 1" dia 1/4 shft indctr
All CCS Models with Back-up
1040-2518
LATCH Panel (CCS)
All CCS Models
3001-2864
SWTCH SPDT togle cen off tab
All CCS Models
3551-0101
BUZZER Pnl piezo 24VDC 1-1/8"
All CCS Models with Back-up
6404-1191
/PCB131 after QA
All CCS Models with Back-up
6407-2593
/Temperature sensor assy
All CCS Models with Back-up
Chart A - Indicator Lights
Part No.
Description
Application
3022-2183
LGHT Pnl 125VAC red tabs
All 120 Volt CCS Models
3022-2611
LGHT Pnl 250VAC red tabs
All 240 Volt CCS Models
3022-2612
LGHT Pnl 28VAC red tabs
All 24 Volt CCS Models
