Installing a redundant power supply
2

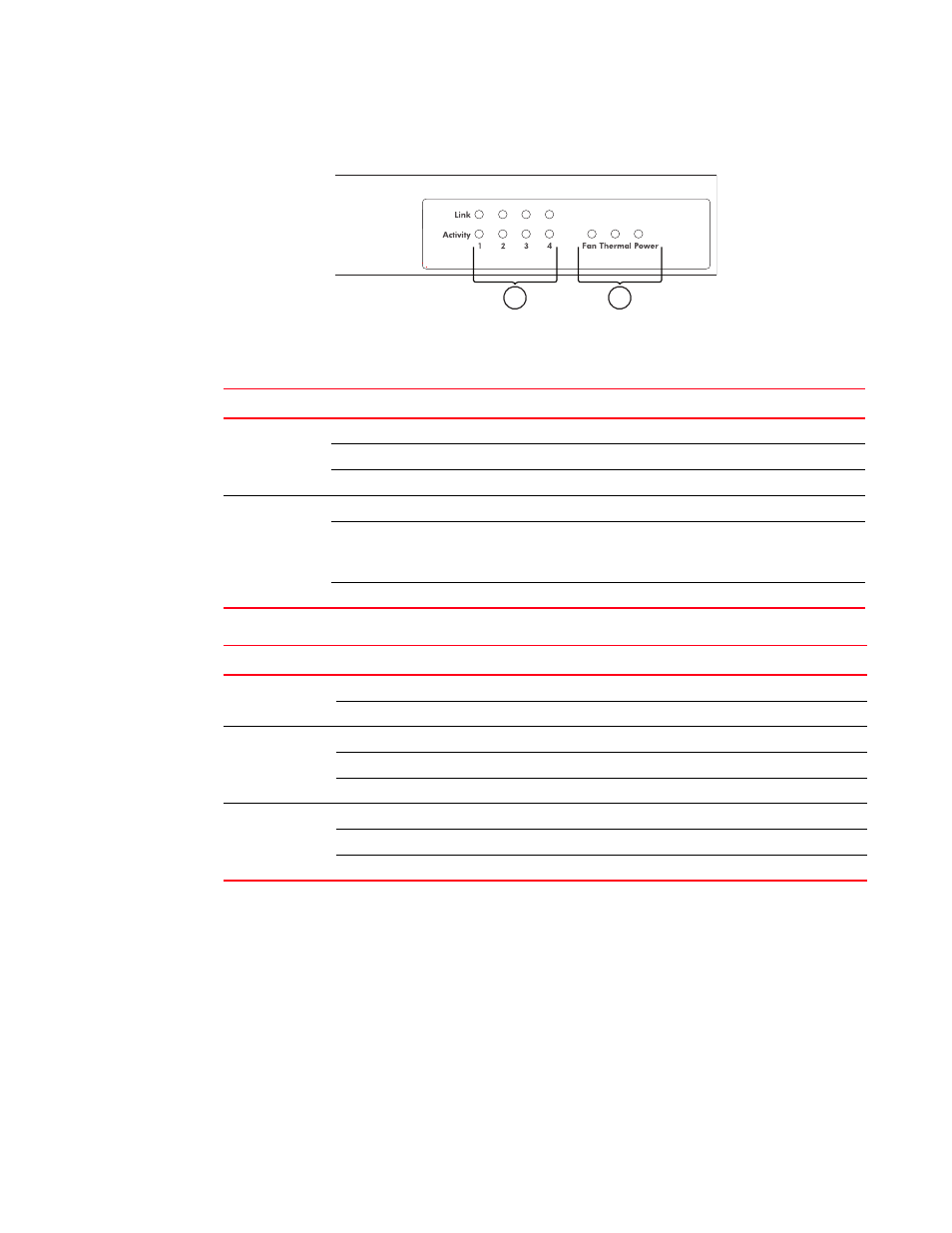

FIGURE 15 RPS2-EIF LEDs
RPS12 external redundant power supply
The external redundant power supply (RPS12) can supply backup power to one of four connected
devices in the event of an AC loss or failure of an internal power supply. The system supplies the
failed device with up to 120 W for primary 12 VDC power, and up to 780 W of -54 VDC PoE power
(for PoE devices connected to the failed device).
The RPS12 monitors the power status for all attached devices and provides power to first device
with a detected power failure. The RPS12 supports the full load of the device without affecting
network operation. When the RPS12 is supplying power to a device, it cannot provide power to
other connected devices.
1 Port indicators 2 System indicators
TABLE 5 Port status LEDs - RPS2-EIF
LED (1~4) Condition Status
Link Off The port does not have a valid connection to a device.
On Yellow The port has a valid connection to a device.
Flashing Yellow There has been an internal power failure.
Activity Off The port is not providing power to the connected device.
Flashing Green The port has been shut down due to one of the following conditions:
• The device has detected an over-current condition.
• One or more of the fans have failed.
On Green The port is providing power to a connected device.
TABLE 6 System status LEDs - RPS2-EIF
LED Condition Status
Power On Green AC power is being supplied to the power supply.
Off No AC power is being supplied to the power supply.
Fan On Green The fans are functioning normally.
Flashing Yellow One or more of the fans is not operating properly.
Off The fans are not receiveing power.
Thermal On Green The temperature of the unit is within an acceptable range.
Flashing Yellow The temperature is close to exceeding acceptable levels.
Off The thermal detector has failed, or the unit is powered off.
2 1
