Brocade FastIron WS Hardware Installation Guide 5
53-1002498-02
Hardware features
1
SFP network interfaces
Table 1 describes the network interfaces supported on the device. For network interface
specifications, refer to the table “Cable length summary table” on page 51.
Port and system status LEDs
FWS devices include an LED display panel on the front panel with indicators for key system and
port indications to simplify installation and network troubleshooting. The LEDs are shown in
Figure 7 and Figure 8 , and described in Table 2 and Table 3 .

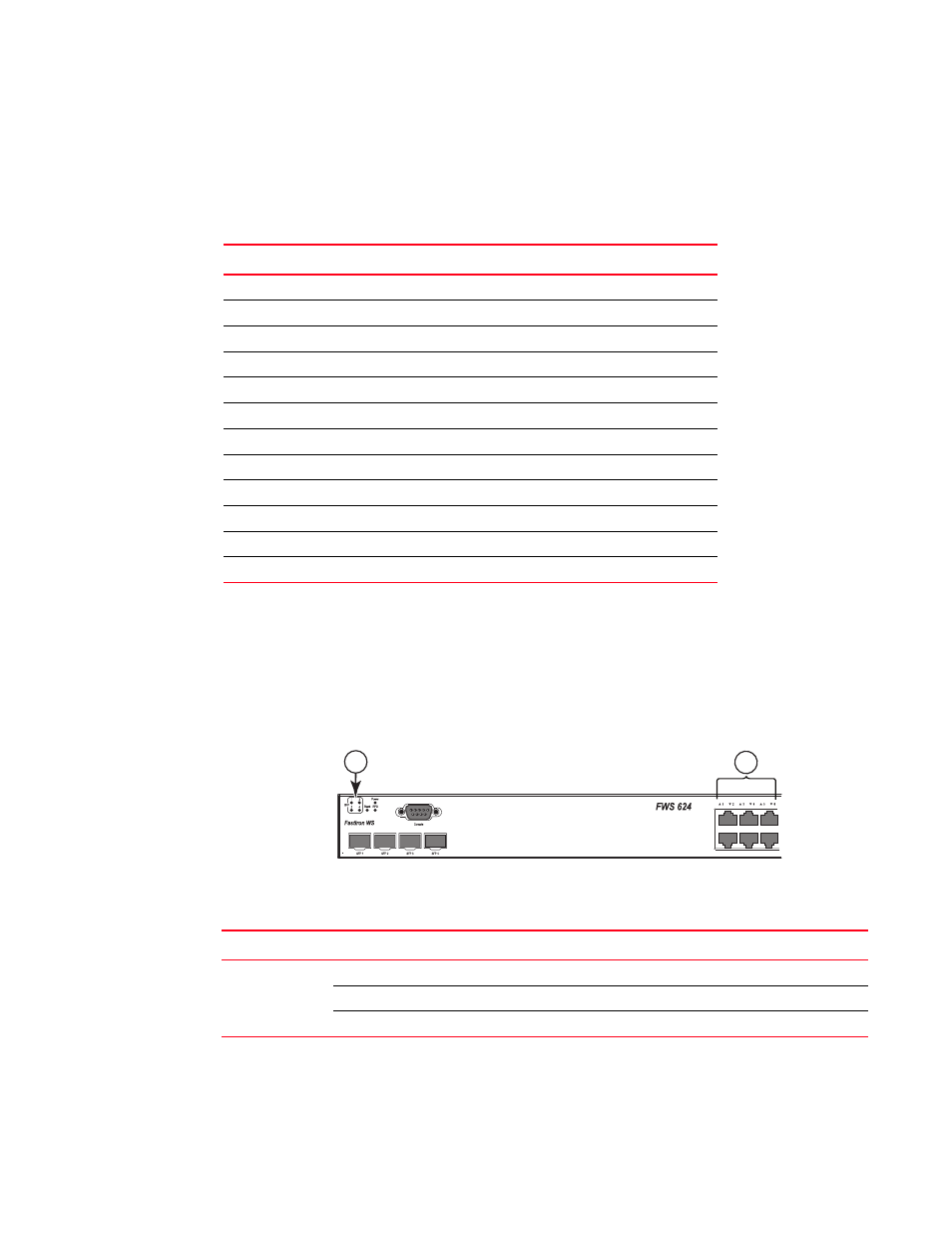

FIGURE 7 Port status LEDs
TABLE 1 Supported SFP network interfaces for FWS devices
Interface Show media description
1000Base-BX-D M-GBXD
1000Base-BX-U M-GBXU
1000Base-LHA M-LHA
1000Base-LHB M-LHB
1000Base-LX M-LX
1000Base-LH M-LH
1000Base-SX M-SX
1000Base-SX2 M-SX2
1000Base-T C
100Base-BX M-FBX
100Base-FX M-FX
1310-MMF 10GbE 1310-NM
1 Port status LEDs 2 Port status LEDs
TABLE 2 Port status LEDs
LED Status Status
Link or
Activity or Speed
(1-24/48)
SFP(1-4) On or Flashing Amber Port has a valid link at 10 or 100 Mbps. Flashing indicates activity.
On or Flashing Green Port has a valid link at 1000 Mbps. Flashing indicates activity.
Off The link is down.
1 2
