Page 34

For instructions on installing and replacing a power supply refer to
Installing and replacing a power

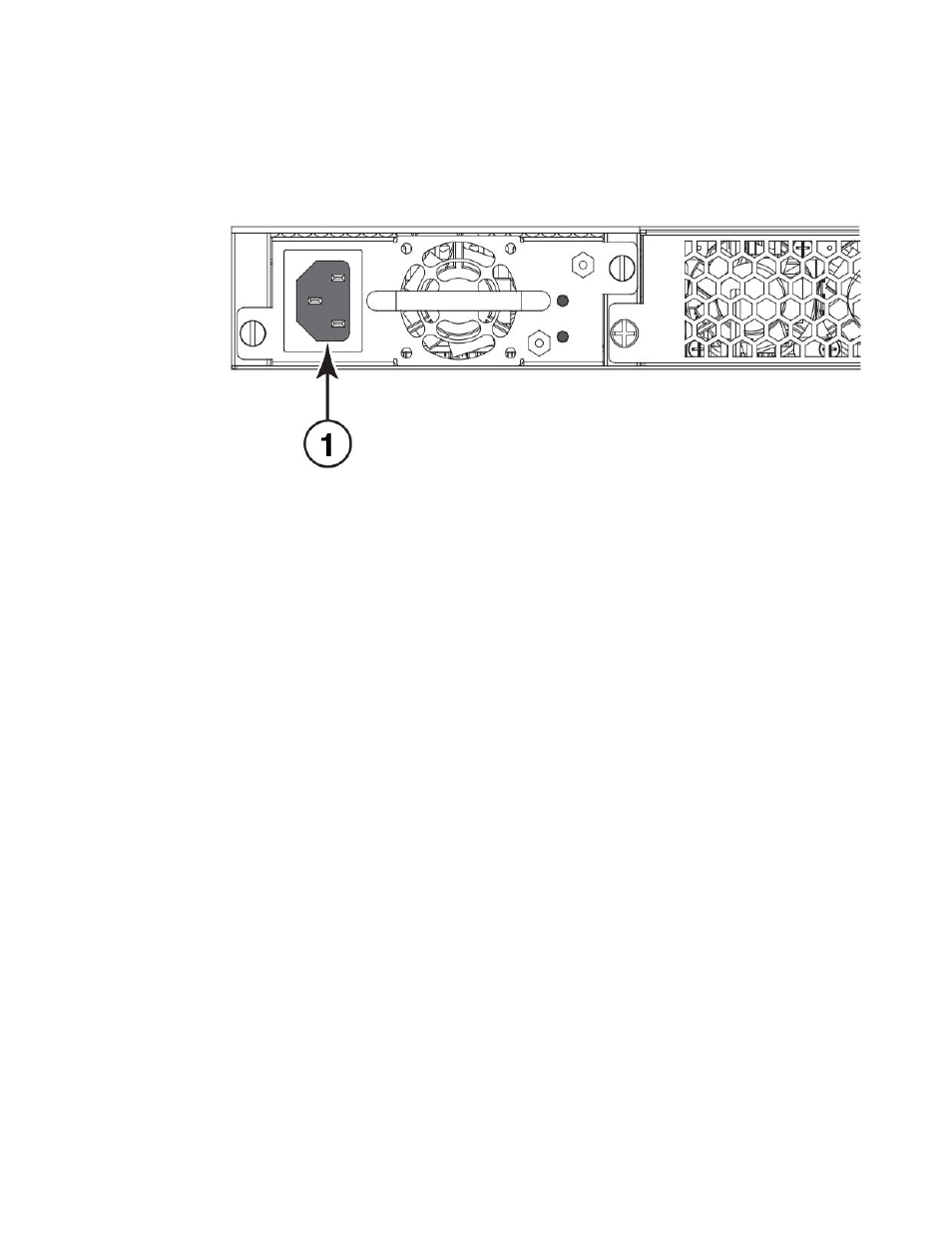

FIGURE 24 Brocade FCX 624-E, FCX 624-I, FCX 648-E, and FCX 648-I AC power supply receptacle
1.
AC power receptacle
Power supply unit operation
When only one PSU is installed, both "AC OK" and "DC OK" LEDs on the installed PSU must be green
for the FCX device to function normally.
When two PSUs are installed, both "AC OK" and "DC OK" LEDs for one of the installed PSUs must be
green for the FCX device to function normally.
HPOE and HPOE + power supplies
Brocade FCX 624S-HPOE and Brocade FCX 648S-HPOE devices use a 620W PSU. When one PSU
is powering the switch, the HPOE budget is 410W. If both PSUs are installed and powering the switch,
each PSU provides 410W to the switch, increasing the HPOE budget to 820W.
Power supply unit operation
32
Brocade FCX Series Hardware Installation Guide
53-1003077-01
