Port, system, and power status LEDs for Brocade FCX 624S, FCX 648S, FCX 624S-F, FCX
624S-HPOE, and FCX 648S-HPOE

FCX switches include a display panel for key system and port indicators that simplifies installation and
network troubleshooting. The LEDs are located on the front panel for easy viewing.

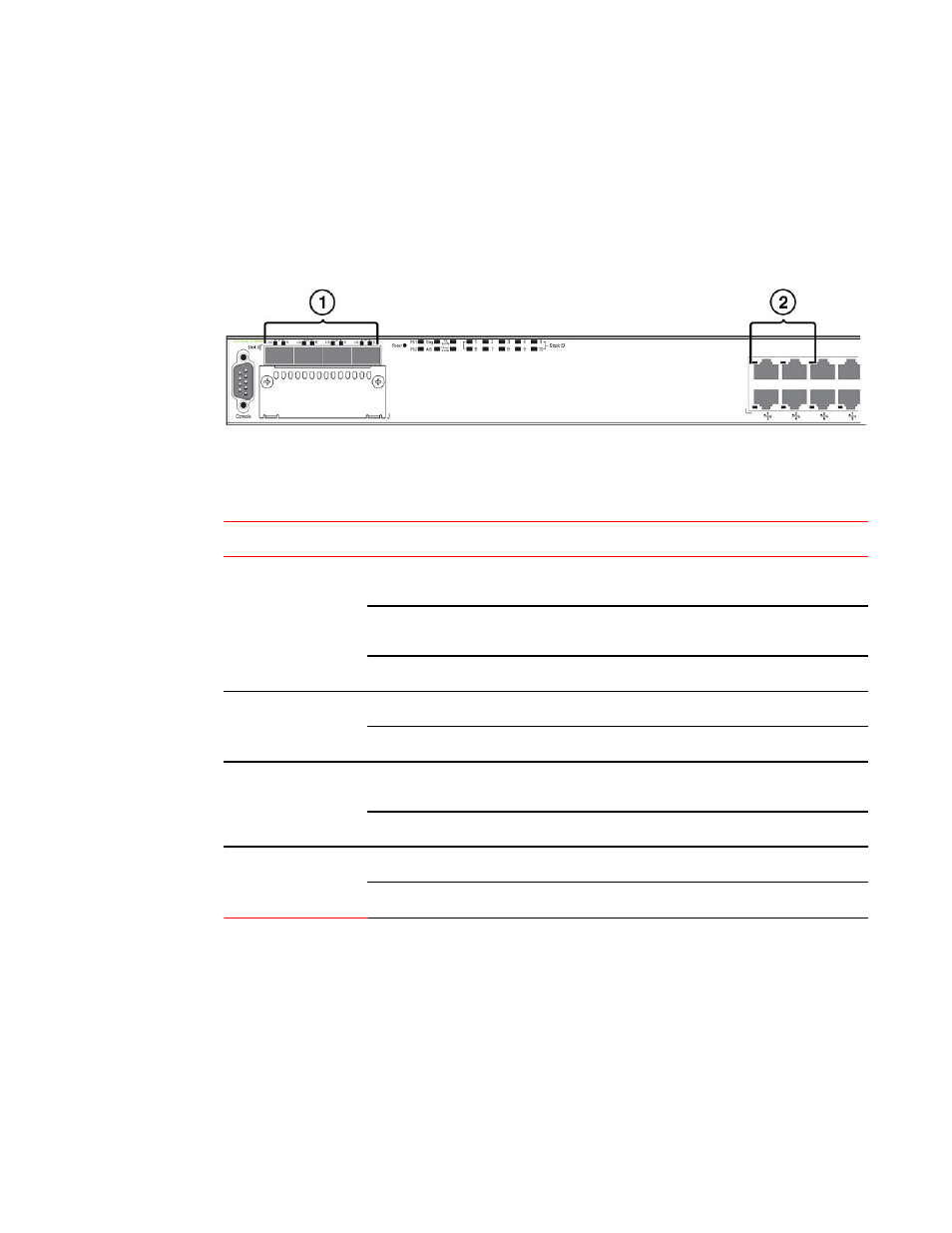

FIGURE 18 Port status LEDs

1.

Port status LEDs

2.

Port status LEDs

Port status LEDs

TABLE 7

LED

Condition

Status

Ethernet(1~24/48)

Link or Activity or Speed

On/Flashing Green The port has established a valid link at 1000 Mbps. Flashing

indicates the port is transmitting and receiving user packets.

On/Flashing Amber The port has established a valid link at 10 or 100 Mbps. Flashing

indicates the port is transmitting and receiving user packets.

Off

A link is not established with a remote port.

HPOE(1~24/48)

On Green

The port is providing HPOE power to a connected device.

Off

The port is not providing HPOE power.

SFP(1F~4F)

Link or Activity

On/Flashing Green The SFP port has established a valid link. Flashing indicates the

port is transmitting and receiving user packets.

Off

A link is not established with a remote port.

SFP(1F~4F)

Speed

On Green

The SFP port is operating at 1000 Mbps.

On Amber

The SFP port is operating at 100 Mbps.
