Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure User Manual
Page 9
Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure
9 of 24
Publication Number: 53-1003114-02
4. Attach the side duct to the left rail by aligning its mounting locations with the slotted holes on the rail. Secure
the duct to the rail using the two 6-32 screws (refer to
). Tighten screws according to specifications
under

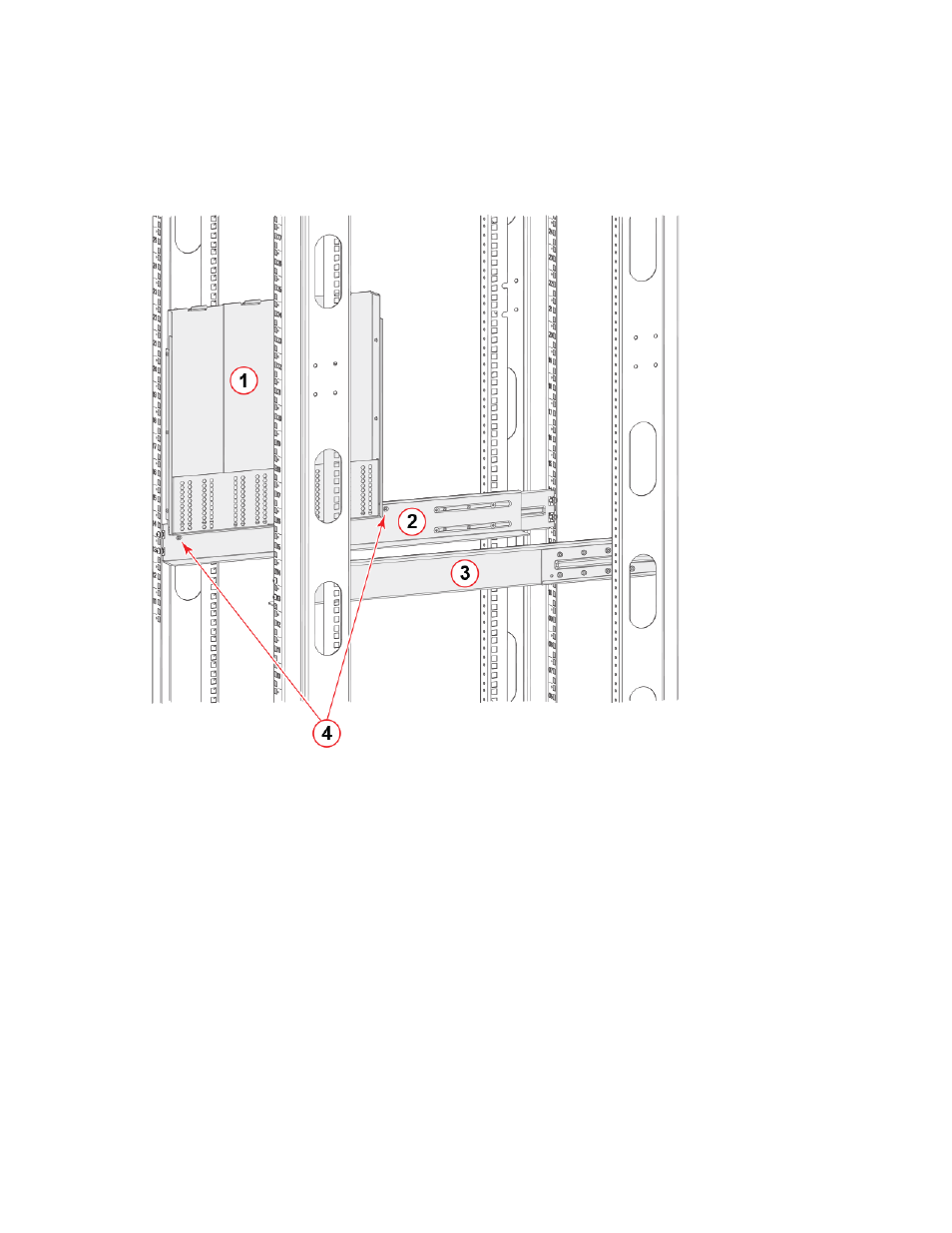

FIGURE 4
Attaching the side duct into the left rail (right-front view)
1
Side duct
3
Right rail
2
Left rail
4
Side duct screw locations in left rail
