Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure 19 of 24
Publication Number: 53-1003114-02
5. Install the top intake assembly into rack.
a. The top intake assembly can be adjusted to a length between 27 and 31 inches (68.58 to 78.74 cm) to fit in
the rack rails. To lengthen or shorten the intake assembly, loosen the 6-32 screws located in the four slots
at the rear of the intake assembly (
Figure 14 ). The length will be approximately the length of the adjustable
rails.

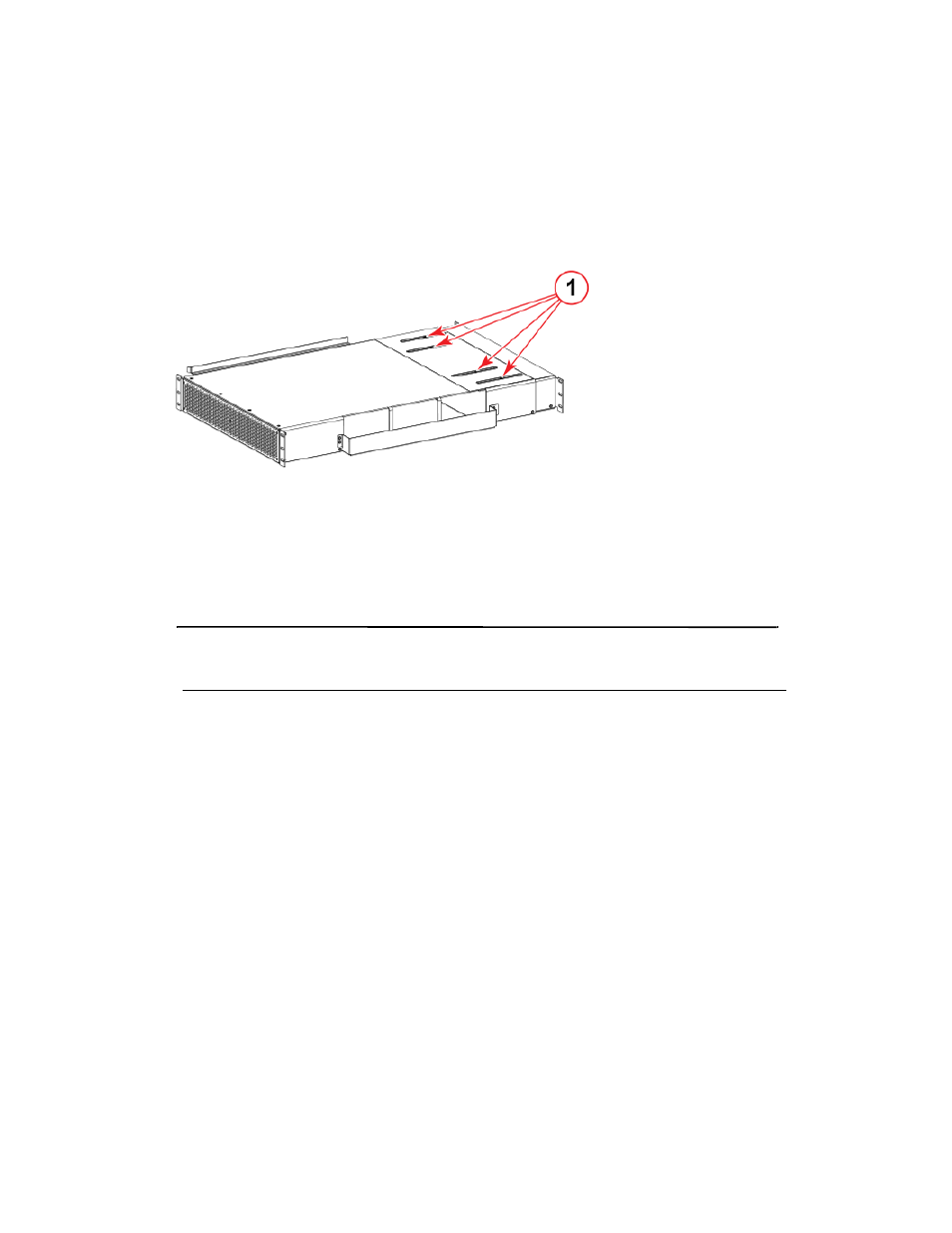

FIGURE 14 Adjusting length of top intake assembly
b. Insert the top intake assembly down onto the side duct and then secure the intake to the rails with eight
10-32 screws with washers ( Figure 15 on page 20 ). Tighten the screws according to specifications under
the “Torque requirements” on page 16.
NOTE
Be sure to allow for an additional 1U rack space above where you will install the top intake assembly to
provide clearance for raising the intake and inserting it on to side duct tabs.
1 Adjustment screw locations on intake
