12 of 24 Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure
Publication Number: 53-1003114-02
4. Secure the switch to the rack with six 10-32 screws with washers. Refer to Figure 7 . Tighten the screws
according to specifications under “Torque requirements” on page 6.
Use the 10-32 x .63 in.(1.60 cm) Phillips screws with square cone washers to secure the switch.
Use either 10-32 retainer nut for racks that have rails with square holes or 10-32 clip nut for racks that have
rails with round holes to retain screws.
NOTE
Screws, clip nuts, and retainer nuts to secure the switch to the rack are provided in the hardware accessory kit
that accompanies the switch.

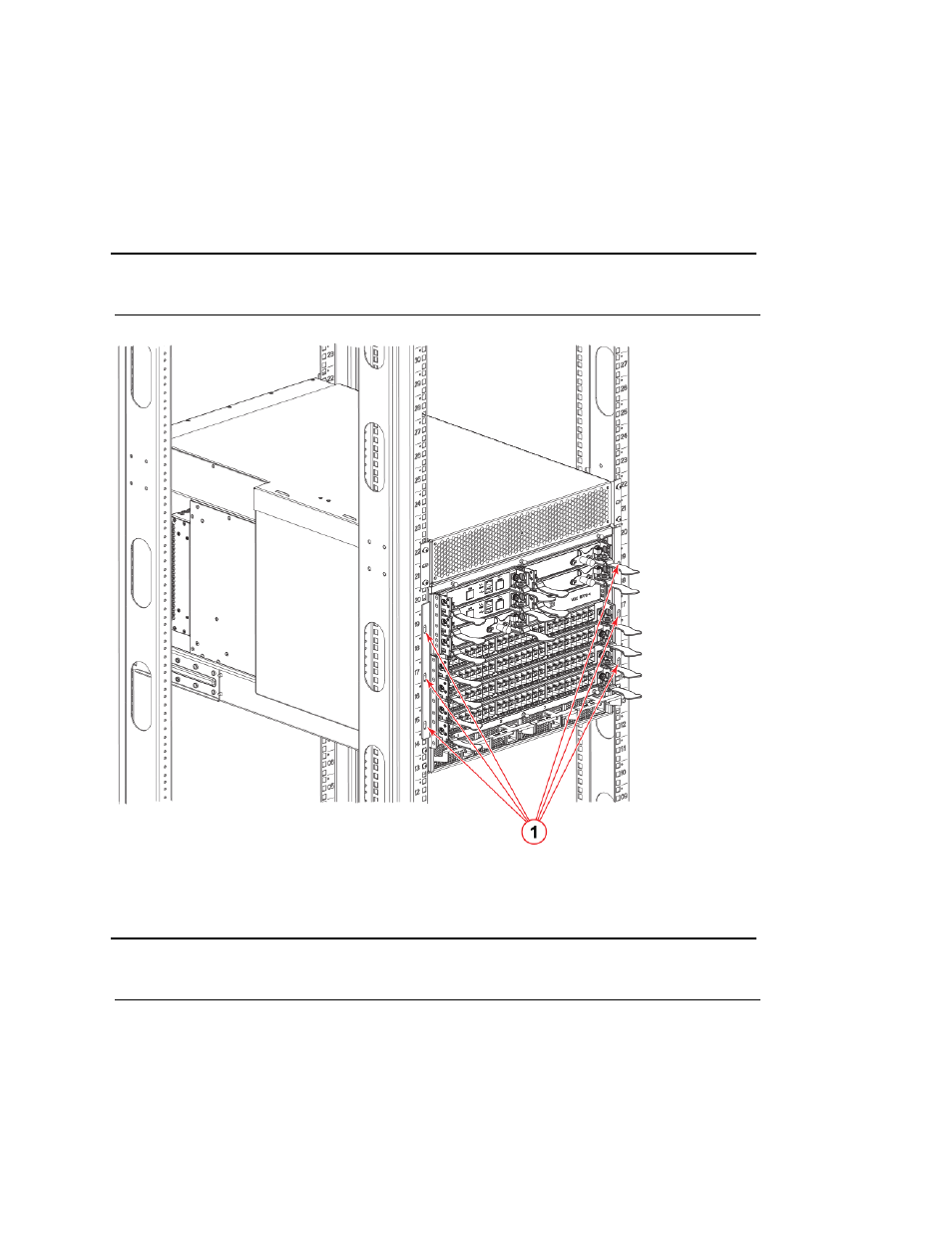

FIGURE 7 Chassis with Intake Air Duct Kit installed in the rack
NOTE
For rails with round holes, use the clip nuts on the rails for securing the 10-32 screws. For rails with square
holes, use the retainer nuts. Refer to
Figure 1 on page 5 and Figure 2 on page 7 .
1 Screw locations for mounting chassis
