Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure - Manual (Page 8)

8 of 24 Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure
Publication Number: 53-1003114-02
3. Install the rails on the rack posts. ( Figure 3 ).
a. Note that the kit contains a rail for the left side of the rack (facing the rack front) and rail for the right side.
b. The rails can be adjusted from 27 to 31 inches (68.58 and 78.74 cm) to accommodate your rack size. To
lengthen or shorten a rail, loosen the four 10-32 screws in the two slots on the rail (see Figure 1 on page 5)
and adjust the shelf to the desired length. Once adjusted, tighten the four 10-32 screws.
c. Secure the rails to the rack with eight 10-32 screws with washers (see Figure 3 ).
For rails with round holes, use two 10-32 screws with washers on each end of both rails. Tighten the screws
according to the specifications under
“Torque requirements” on page 6.
For rails with square holes, use the two standard 10-32 screws with the blue Loctite on the threads and
alignment washers on each end of both rails. Tighten the screws according to the specifications under
“Torque requirements” on page 6.

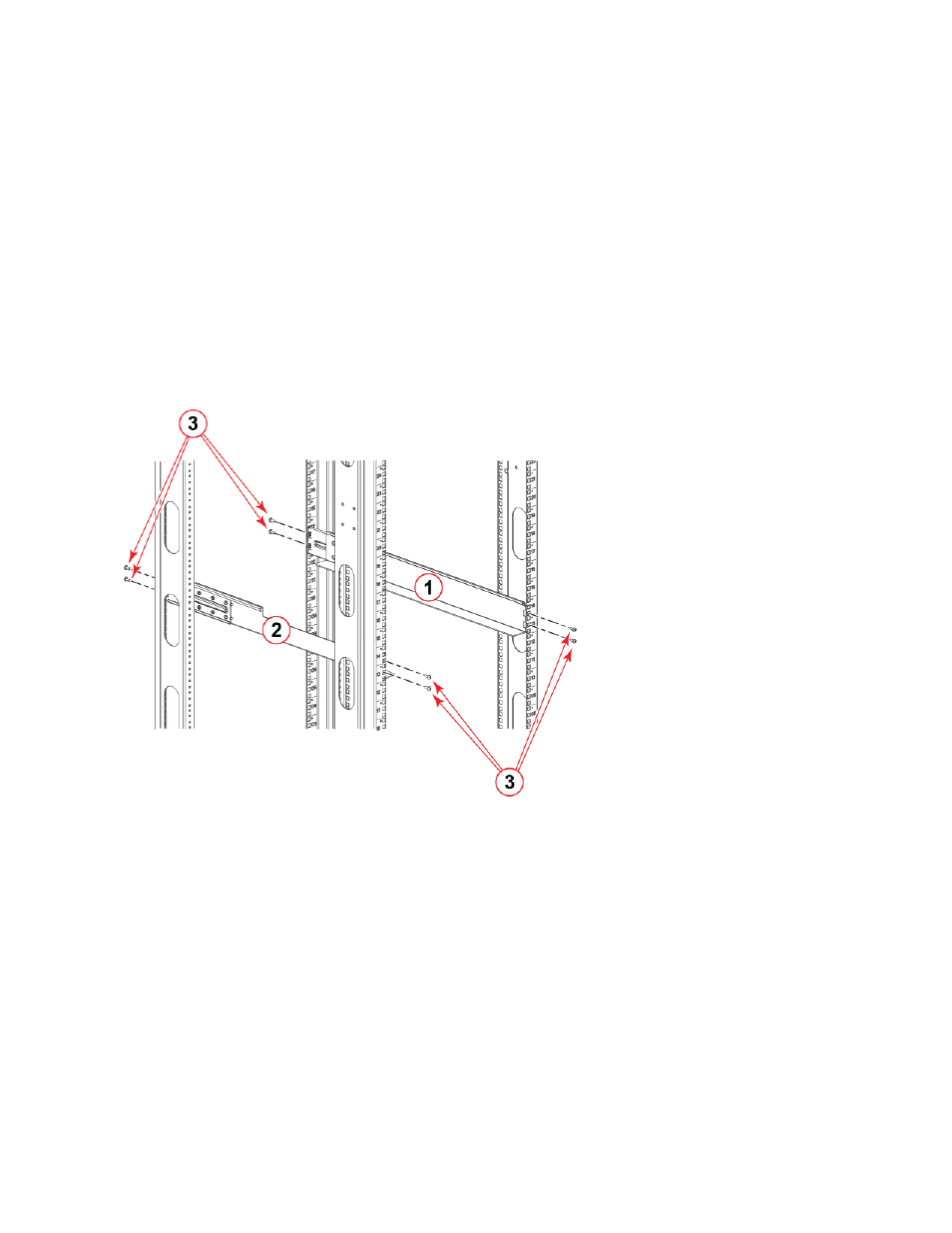

FIGURE 3 Installing rails
1 Right rail 3 Screw locations
3 :Left rail
