Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure User Manual
Page 5
Brocade VDX 8770-4 Four-Post Flush and Recessed Mount Intake Air Duct Rack Kit Installation Procedure
5 of 24
Publication Number: 53-1003114-02

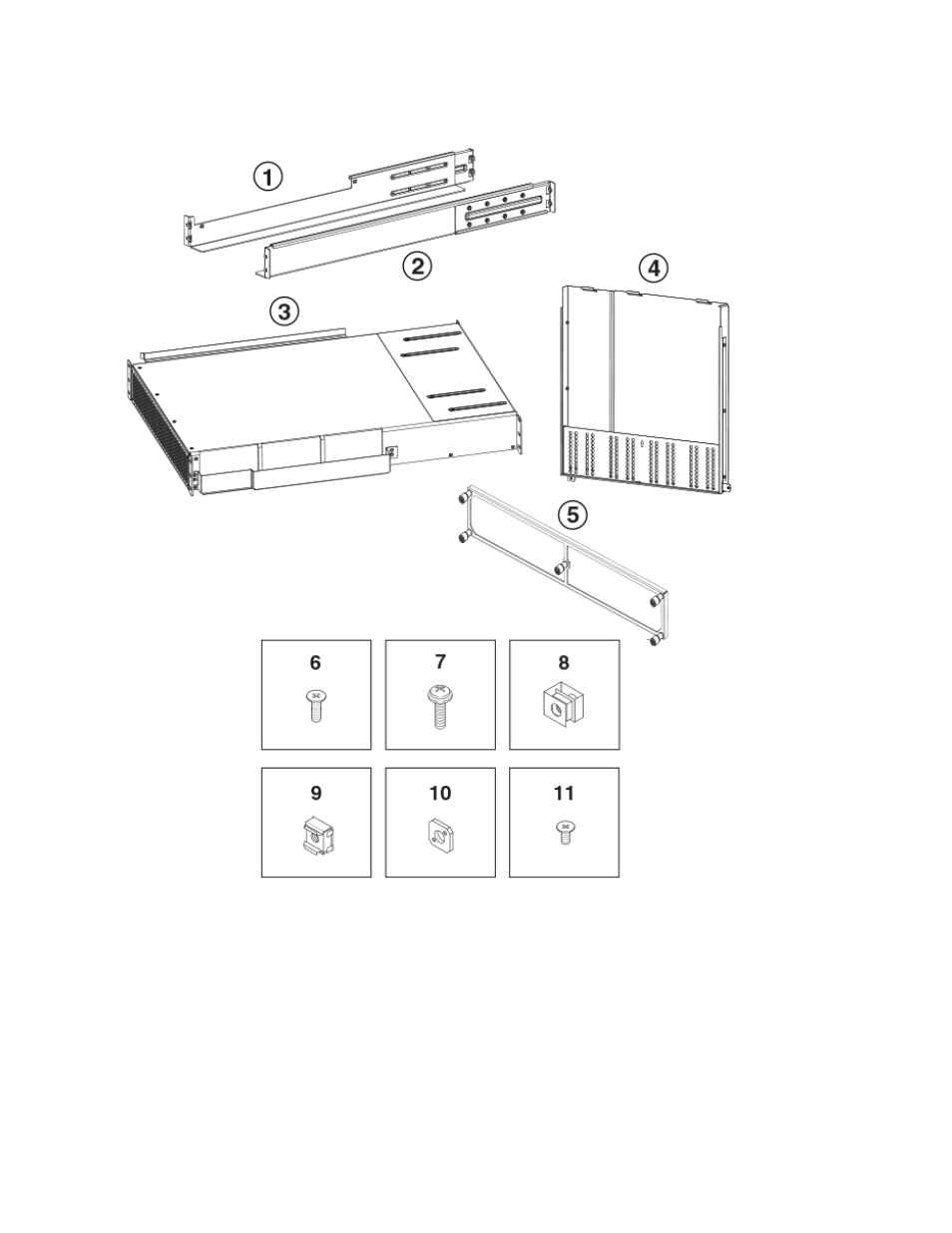

FIGURE 1
Flush mount Intake Air Duct Kit assembly for a four-post rack
1
Rail (left side)
7
10-32 x .63 in.(1.60 cm) Phillips screw with square cone washer for
racks that have rails with round holes (18)
2
Rail (right side)
8
10-32 clip nut for racks that have rails with round holes (14)
3
Top intake assembly
9
10-32 retainer nut for racks that have rails with square holes (14)
4
Side duct
10 Alignment washer for racks that have rails with square holes (4)
5
Air filter
11 6-32 x .25 in. (.635 cm) Phillips screw (2)
6
10-32 x .31 in. (.79 cm) Phillips screw with blue Loctite
on threads (16)
