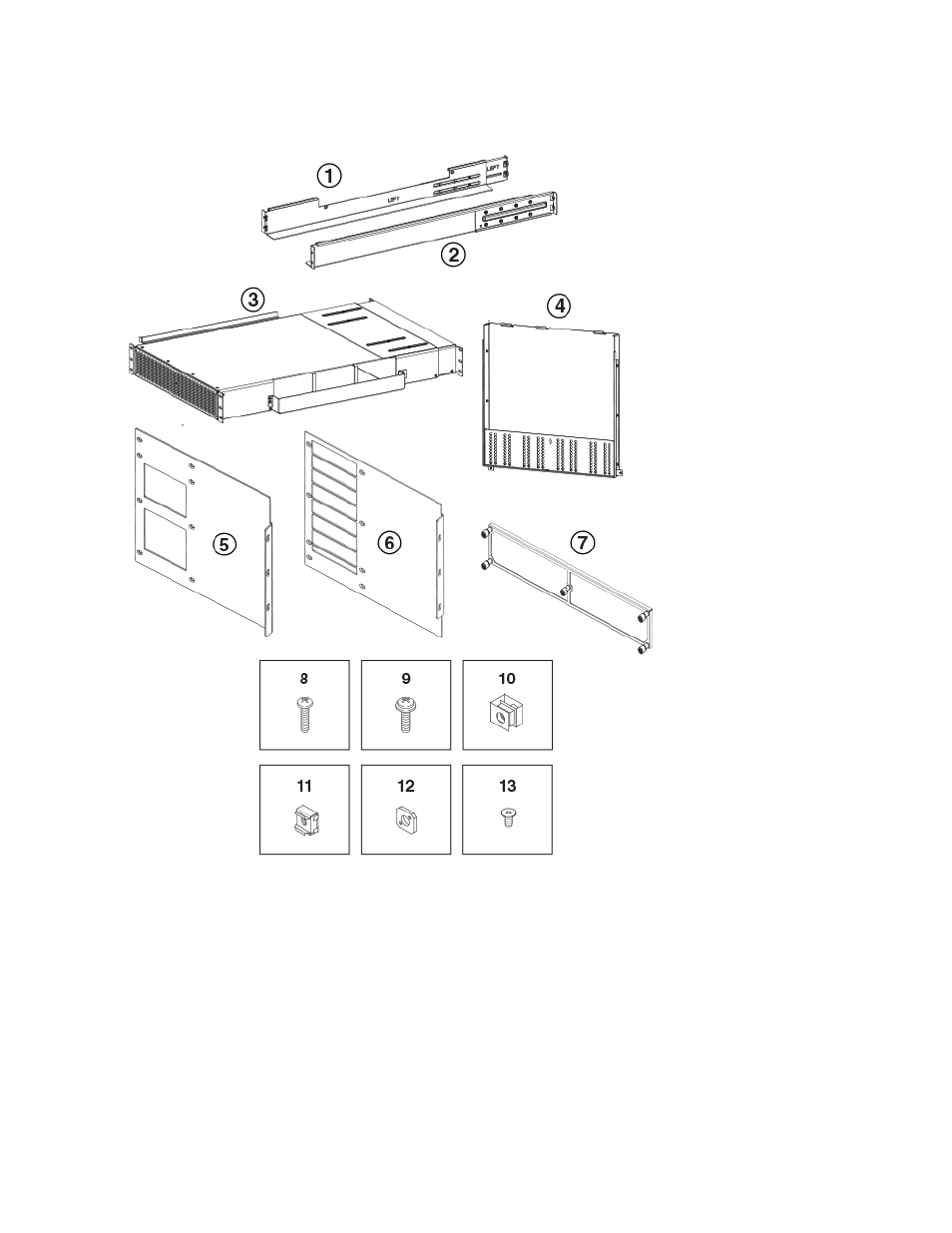

FIGURE 10 Recessed mount Intake Air Duct Kit assembly for a four-post rack
1 Left rail 8 10-32 x .31 in. (.79 cm) Phillips screw with blue Loctite on threads (16)
2 Right rail 9 10-32 x .63 in.(1.60 cm) Phillips screw with square cone washer for racks that have rails with
round holes (18)
3 Top intake assembly 10 10-32 clip nut for racks that have rails with round holes (14)
4 Side duct 11 10-32 retainer nut for racks that have rails with square holes (14)
5 Left recessed rack ear 12 Alignment washer for racks that have rails with square holes (4)
6 Right recessed rack ear 13 6-32 x .25 in. (.635 cm) Phillips screw (2)
7 Air filter
