1) replacing o-rings, 2) replacing gaskets – Yokogawa SC72 Personal Handheld Conductivity Meter User Manual
Page 51
IM 12D03D02-01E
5-8
5. Handling of the SC72 Personal Conductivity Meter
(1) Replacing O-rings
O-ring

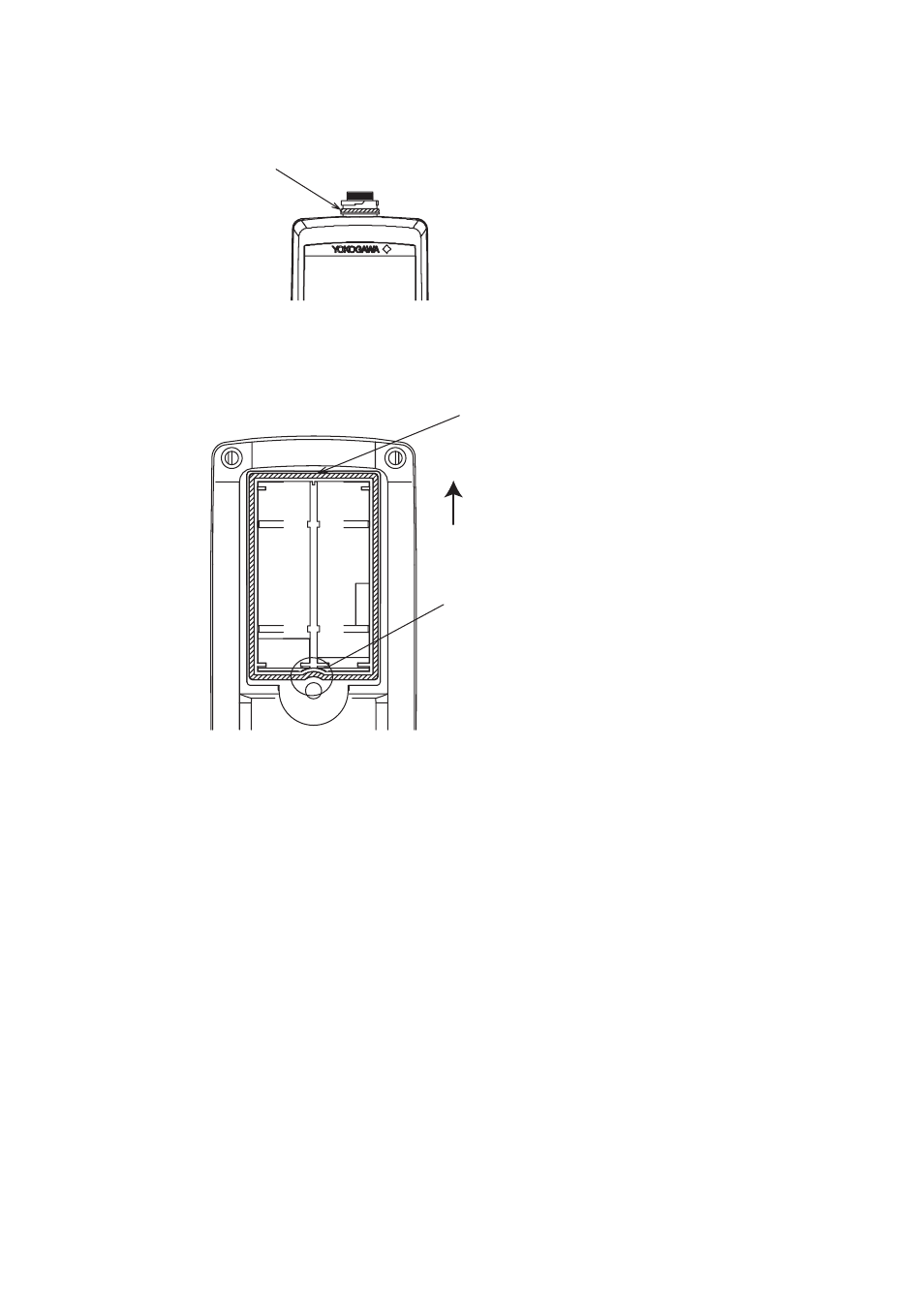

Install the O-ring on the cylindrical flat part as shown in the figure.
F050501.EPS
(2) Replacing gaskets
Gasket
Raised part
SC72 meter top
Install the gasket with its raised part facing downwards on the groove of th meter case.
Gaskets are symmetrical (on the right and left, and on the front and rear).
F050502.EPS
