IM 12D03D02-01E 4-10
4. Keyswitch Functions
(4) Cell constant setting (C.C) panel
This panel with the mark is used to set the cell constant manually.
Use the keys to set the cell constant. Then press the F/ENT key.
Typical cell constants are as follows:
For pure water sensor (SC72-11): 0.05 cm -1
For general-purpose (SC72-21, -23) and chemical-resistant sensors (SC72-31): 5 cm -1
Sensors for high-conductivity measurement: 50 cm -1
When setting the cell constant, you should check the nameplate (attached to sensor cable)
for the model number and cell constant.
The cell constant can be set in the range
؎ 20% of standard cell constant. For example,
for general-purpose sensors with standard cell constant of 5 cm -1 , a cell constant ranging
from 4.00 to 6.00 can be set.
Once the cell constant is set, it remains stored in memory even when batteries are
removed.
The general-purpose cell has the same cell constant whether used with SC72-21 or SC72-
23 type.
Refer to Sec. 2.4 for cell constant setting procedure.

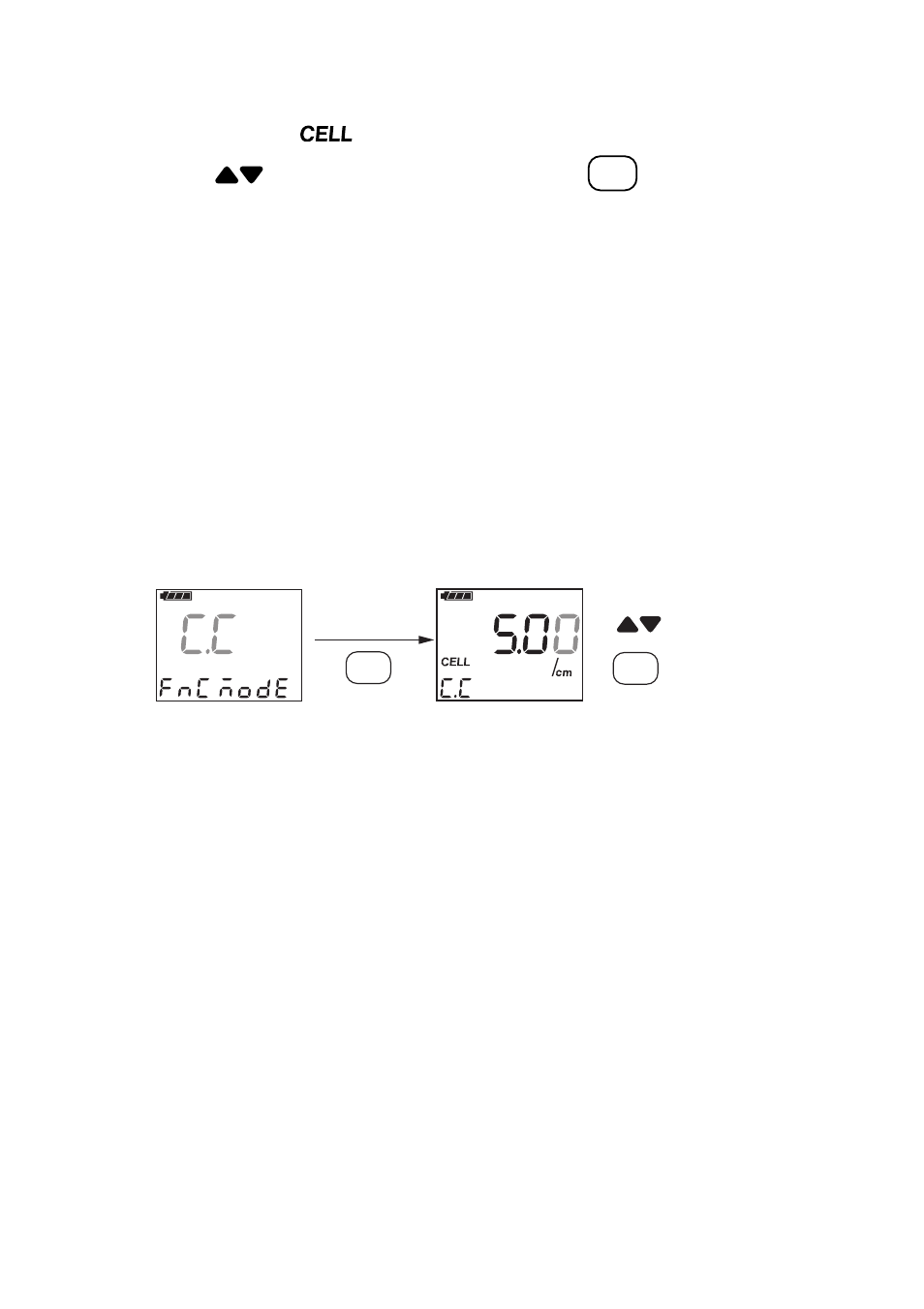

F040304.EPS
Use key to set
the cell constant. Then press
the key to complete setting. F/ENT F/ENT
