D2-7
IM 01W02E01-01EN
FD0206.ai

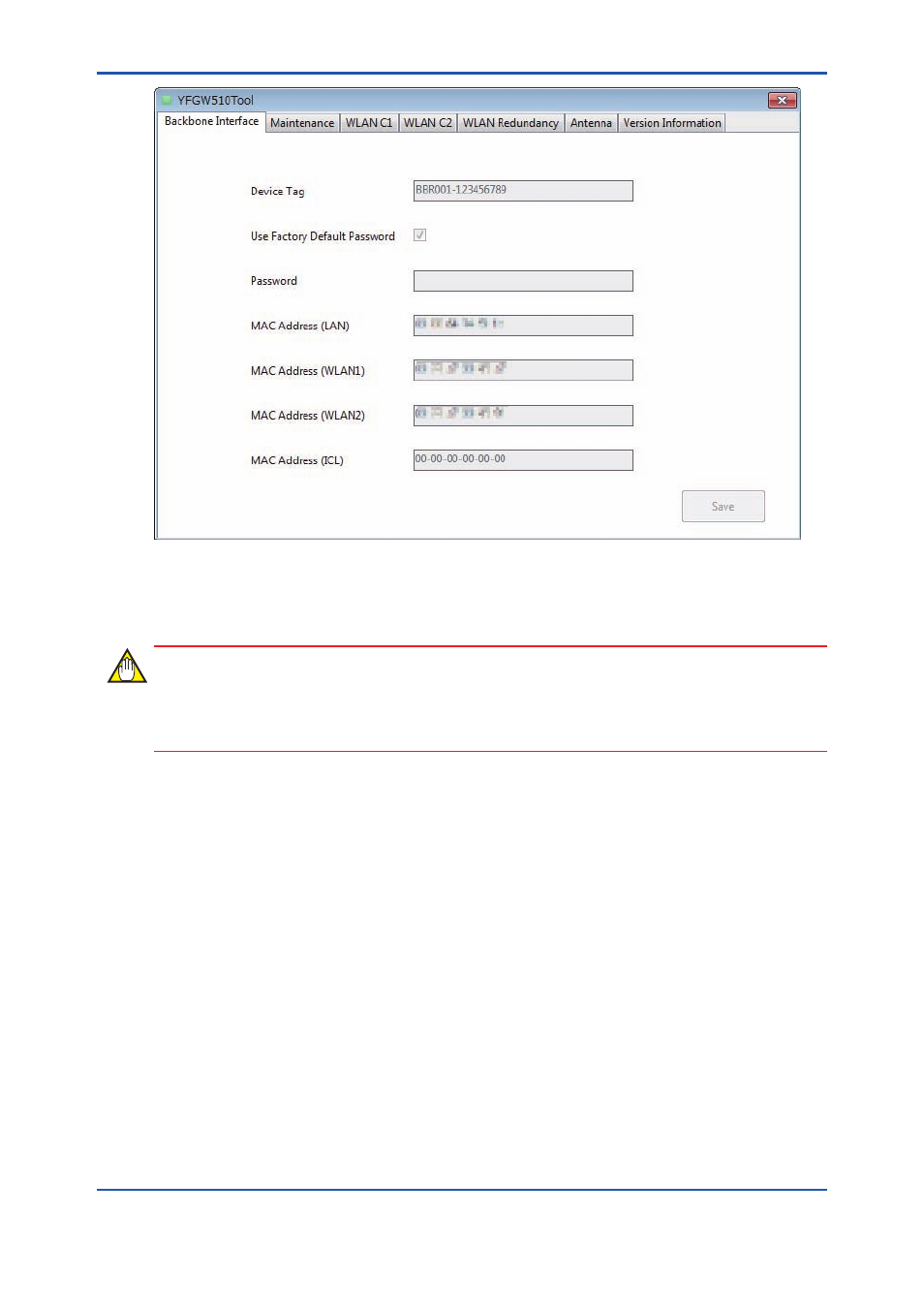

Figure D2-6 Main window
The Backbone Interface tab of the window is always shown at startup of the setup tool.
IMPORTANT
If YFGW510 is factory default, the setup tool starts in Edit mode.
Otherwise, the setup tool starts in Display mode and each field and button is grayed out.
l Problem with infrared communications
If, after login to YFGW510, an infrared communication failure occurs, the communication error
window shown in Figure D2-4 appears similarly when an error occurs during login to Configura-
tion tool.
After verifying and fixing the problem, click the [OK] button to close the window. In this case, retry
to log in again.
l Setup tool operation timeout
If there is no operation for five minutes during the configuration of the Setup Tool indicate a time-
out error shown in Figure D2-7, will appear on top of the main window. In this case, retry to log in
again.
