D2.1.3 connection example, D2.1.3, D2-2 – Yokogawa YFGW510 User Manual
Page 52
D2-2
IM 01W02E01-01EN
D2.1.3 Connection Example
To use the setup tool, infrared communication between the PC and YFGW510 is required. Con-
nect the infrared adapter to a USB port on the PC. Place the infrared adapter close to the infrared
port of YFGW510 and ensure that they face each other. For distance between YFGW510 and the
infrared adapter, see the table below.
FD0201.ai
Less than 30 cm
Infrared adapter
YFGW510
Field wireless access point setup tool

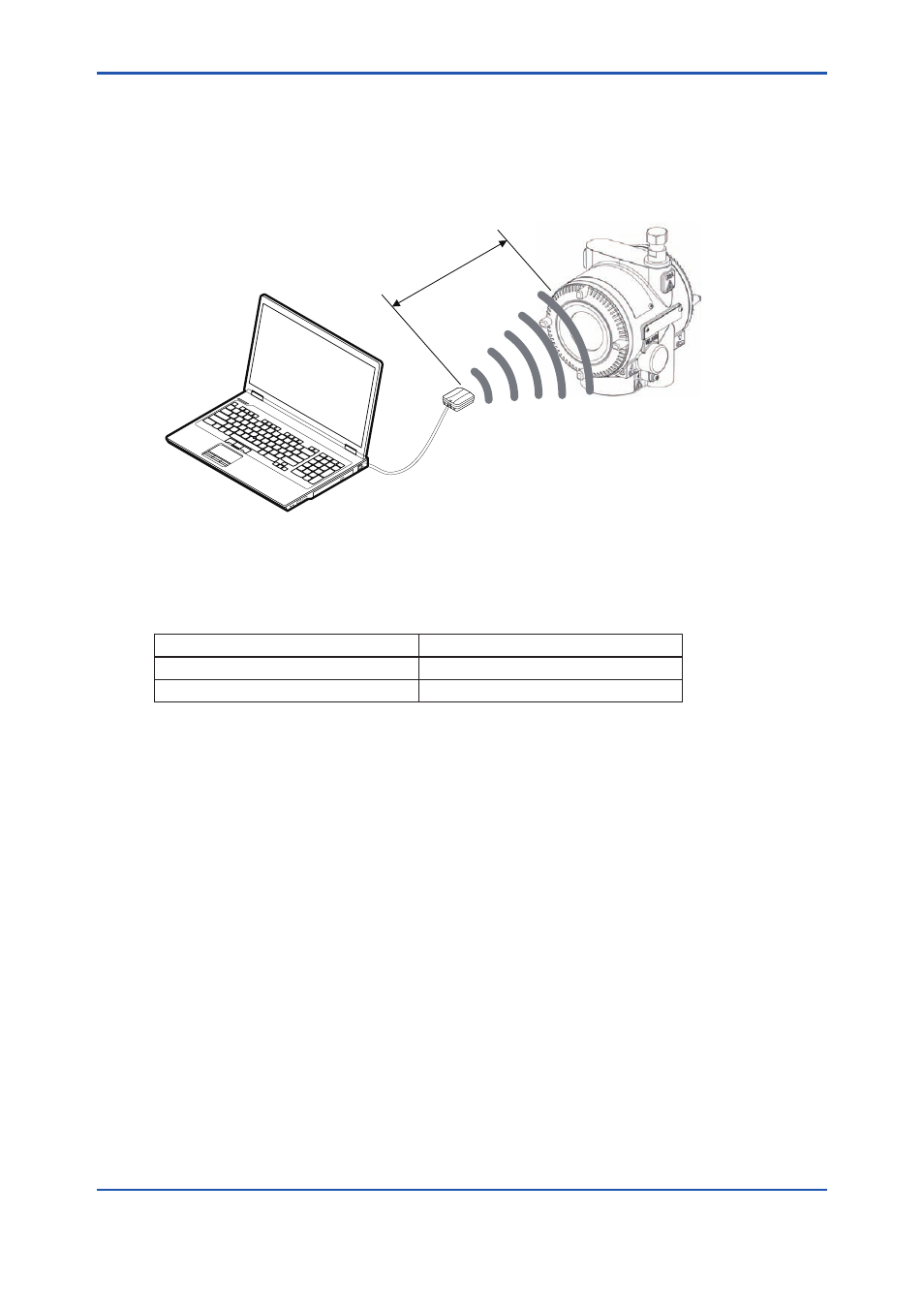

Figure D2-1 Connection example for field wireless access point setup tool
Table D2-4 Communications distance between YFGW510 and the infrared adapter
Item
Communications distance
Recommended communications distance Within 20 cm
Maximum communications distance
30 cm
