C5-2 – Yokogawa YFGW510 User Manual
Page 34
C5-2
IM 01W02E01-01EN
l
Power supply cable connection procedure
1. Insert the power supply cable through the power supply cable gland into the housing.
2. Screw the cable gland into the housing to fasten it.
3. Connect the + cable to the + terminal and the – cable to the – terminal.
4. For shielding the power supply cable, connect the grounding cable to the ground terminal
next to the power supply terminal.

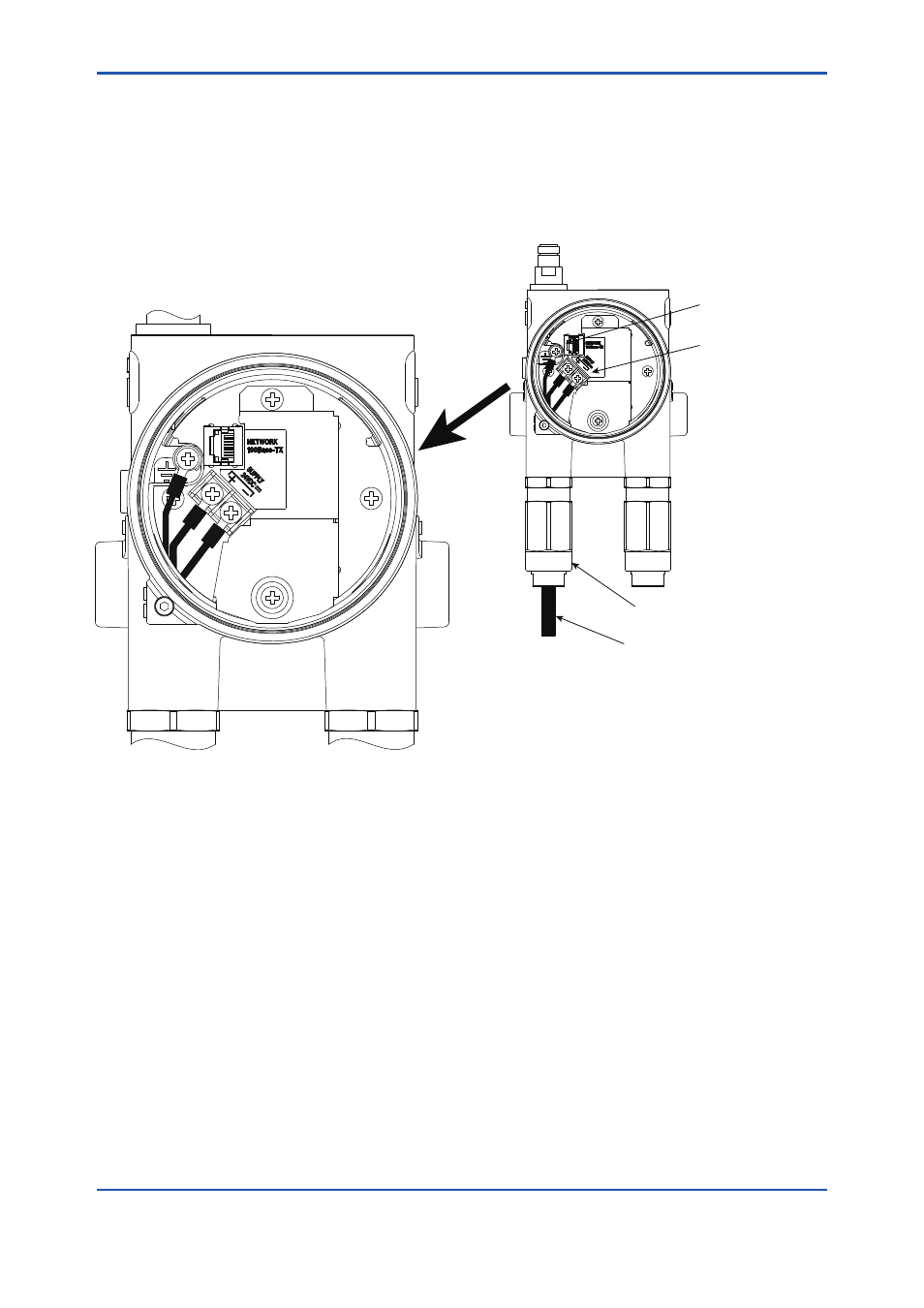

FC0501.ai
Ground terminal
Power supply terminal
Power supply cable
Cable gland
Figure C5-1 Connecting power supply cable
