IM 01C50T03-01E 3-9
3. OPERATION
(f) Display error code
M55: Err-NO DISP
If an error occurs, the error code is displayed on the
LCD indicator.
SHOW : Error code is displayed
INHIBIT : Error code is not displayed
Integral indicator display parameter setting
M10: PROCESS DISP = PV, SV
M20: %/mA DISP
= mA
M30: MATRIX DISP = PROCESS, TYPE
M40: BAR GRAPH = SHOW
Process variable display PV value PV value SV value SV value
%/mA display: mA
Matorix display: Process variable Sensor type Process variable Sensor type
Bar graph ON
Assumed current status and parameter settings
A10: PV = 50.0 degC
A11: mA of RANGE = 12.00 mA
A20: SV = 25.16 degC
B10: PV is = Sensor1
B20: SV is = Sensor1-Term
D10: SENSOR1 TYPE = TYPE B
F0306.EPS

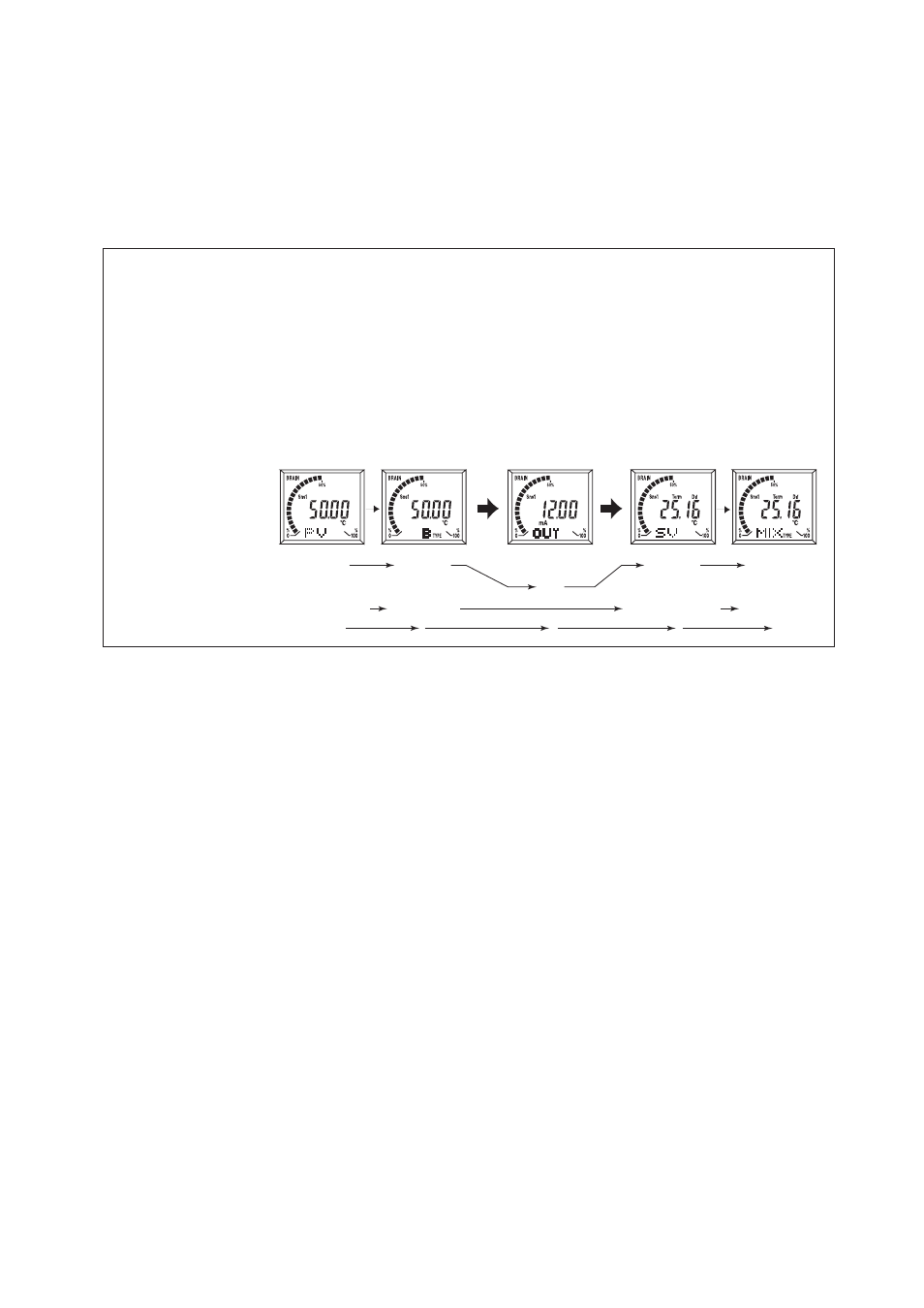

● Example of LCD display cycle
The example of the LCD indicator is based on the following settings.
