Wa t l o w S e r i e s S D 6 L i m i t w i t h D e v i c e N e t ■ 6 ■

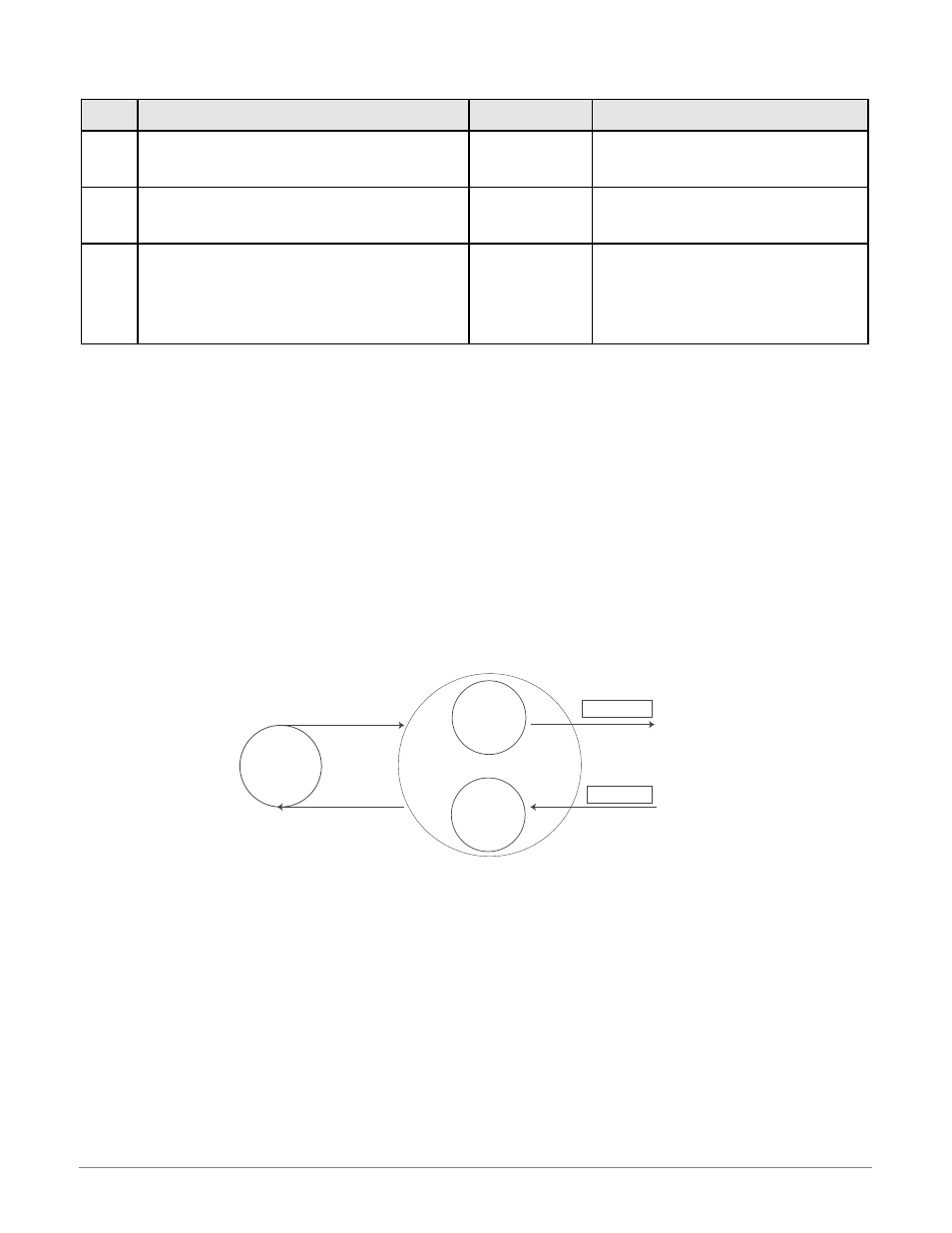

Table 12. Static Output – Instance 100 in the Assembly Object (total of 9 bytes)
Class Services: NONE
Instance Services:
• 0x0E GET ATTRIBUTE SINGLE
• 0x10 SET ATTRIBUTE SINGLE
Link
Producer
Transmission
Reception
Application
Link
Consumer
Connection Object
Connection Object
Class Code: 05hex
The Connection Class allocates and manages the internal
resources associated with both I/O and Explicit Messaging
Connections. The specific instance generated by the
Connection Class is referred to as a Connection Instance or
a Connection Object.
A Connection Object within a particular module actually
represents one of the end-points of a Connection. It is pos-
sible for one of the Connection end-points to be configured
and “active” (e.g., transmitting) without the other end-
point(s) being present. Connection Objects are used to
model the communication specific characteristics of a par-
ticular application-to-application relationship.
A specific Connection Object Instance manages the commu-
nication-specific aspects related to an end-point.
Byte Parameter and Description Size of Data Range
0-3 Limit 1 Low
Low limit set point for output 1.
DINT -1999.000 to 9999.000
4-7 Limit 2 High
High limit set point for output 1.
DINT -1999.000 to 9999.000
8 Set Point Control
Breakdown of byte:
Bit 0 : Selects whether setting output 1's set
points is done via the SD front panel or through
DeviceNet.
USINT (0) DeviceNet
(1) SD front panel
