WATLOW Series 965 User's Manual 15 Setup, Chapter 4
LOC
In
C _ F
rL
rH
Ot 1
HSC
Ot2
LAt
SIL
rtd
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
75
rP
rt
PL
( )
( )
( )
User lock out
Input type
Celcius__Fahrenheit
Range low
Range high
Output 1
Control hysteresis
Output 2
Latching for alarm
Silence alarm
RTD calibration curve
Ramp function
Ramp rate
% Power limiting
dEC
( )
Decimal place
HSA Output 2 hysteresis ( )
dSP ( ) Display
Setup
Mode Key M
= Parameter may or may not
appear depending on your
control configuration.
Control Set Point
Figure 23 -
The Setup Menu
NOTE:
While in the Setup
Menu, all outputs
are off.

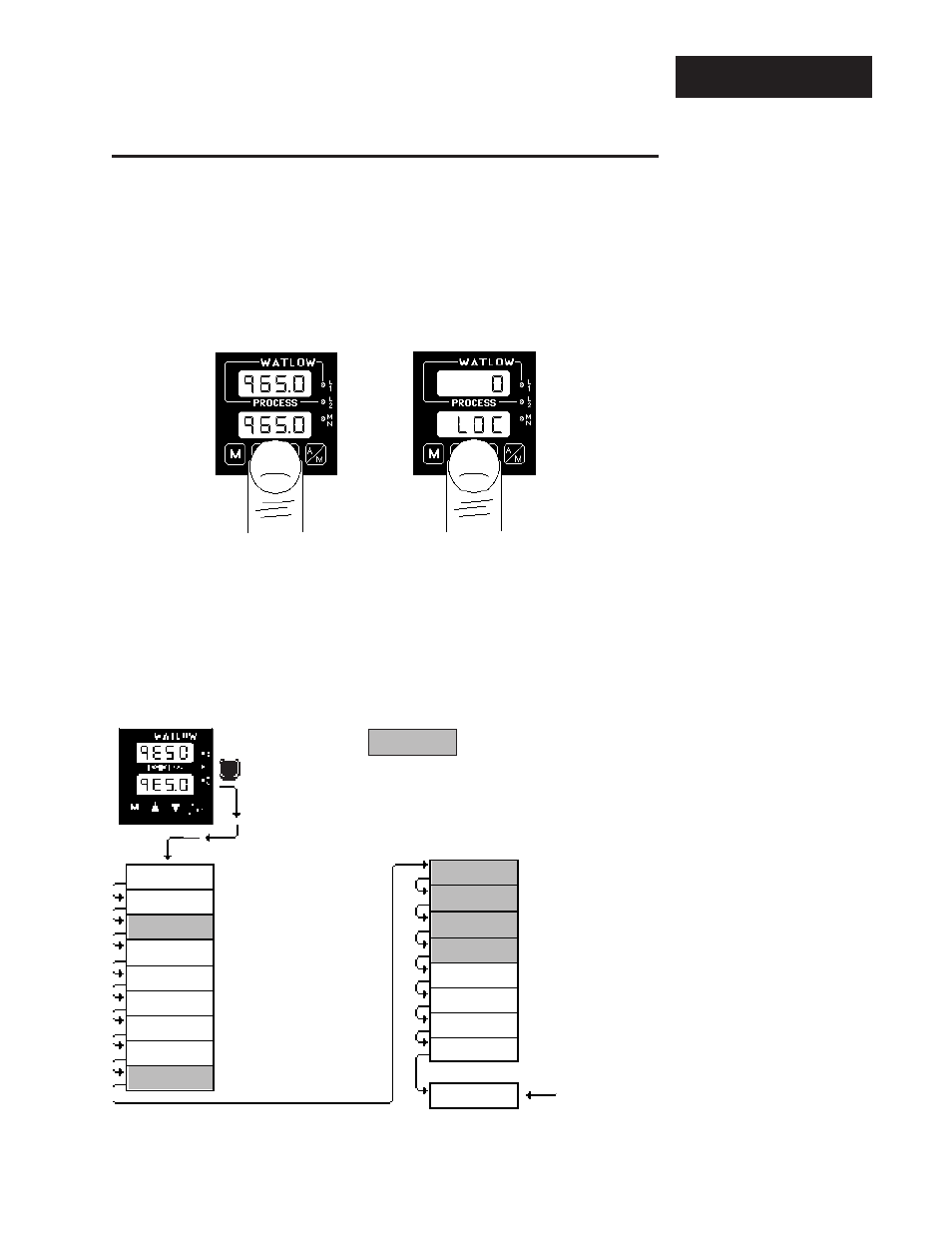

Entering the Setup Menu
The Setup Menu displays the parameters that configure the Series 965's features
to your application.
Enter the Setup Menu by pressing the Up-arrow and Down-arrow keys simulta-
neously for 3 seconds. The lower display shows the LOC parameter, and the
upper display shows its current level. All keys are inactive until you release both
keys. You can reach the LOC parameter from anywhere.
You will not see all parameters in this menu, depending on the unit's configura-
tion and model number. After stepping through the menu it returns to the control
set point parameter under the Operation Menu.
Figure 22 -
Entering the Setup
Menu
Output 2 alarm hysteresis
