PS-3450A Series Hardware Manual
3-20

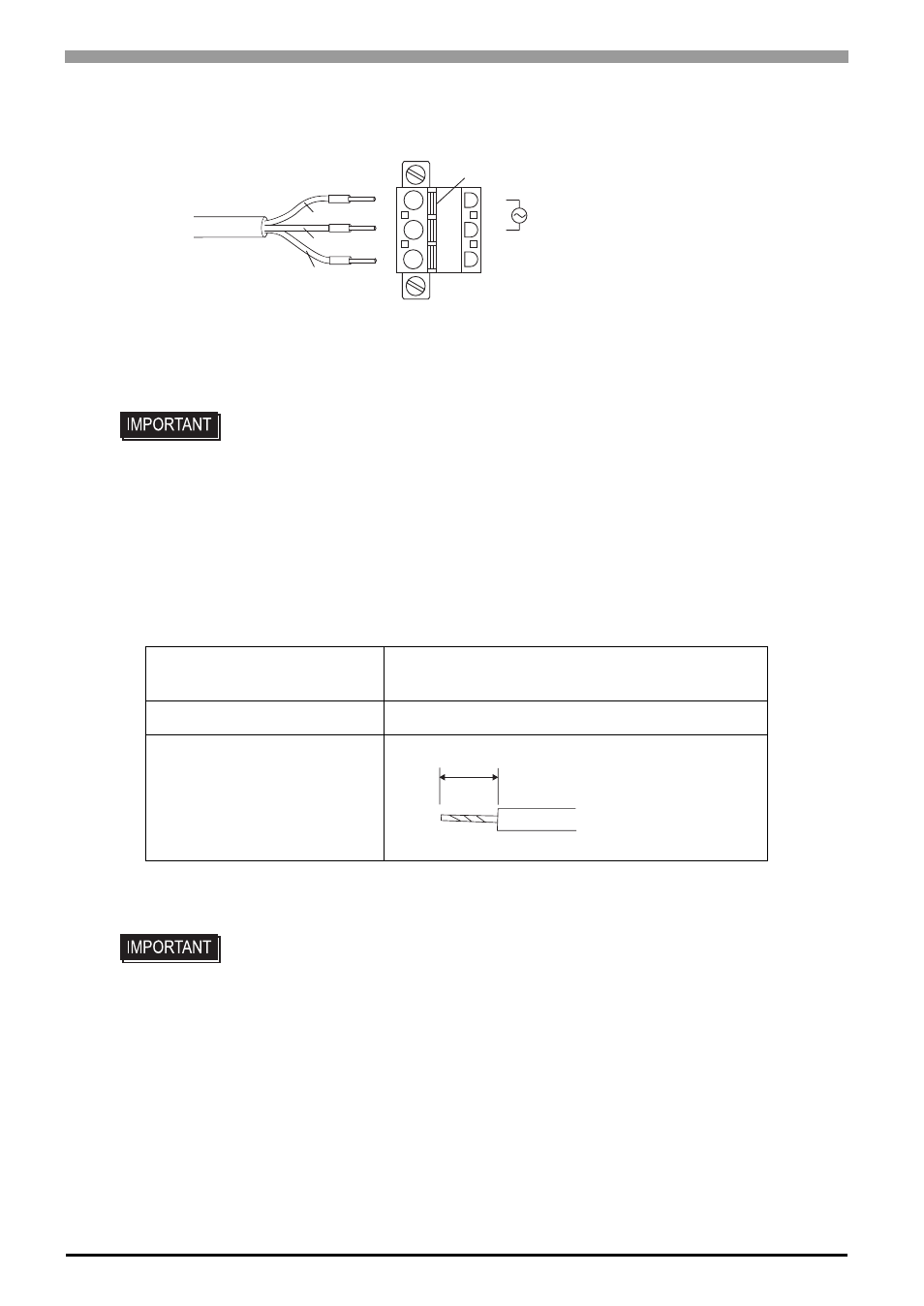

(4) Insert each pin terminal into its each hole. Release the Opening button to clamp the pin place.
(5) After inserting all three pins, insert the Power Plug into the Power Connector at PS-A. Fix the plug with
two (2) minus screws.
„ When the DC Type
Power Cord Specifications
• Confirm that all wires are connected correctly.
• The torque required to tighten these screws is 0.5 to 0.6N
•m.
• To prevent the possibility of a terminal short, use a pin terminal that has an
insulating sleeve.
Power Cord Diameter
0.75 to 2.5mm
2
(18 to 12 AWG)
Conductor Type Simple or Stranded Wire
*1
*1 If the Conductor’s end (individual) wires are not twisted correctly, the end
wires may either short against each other, or against an electrode.
Conductor Length
• Use copper conductors only.
• The temperature rating of field installed conductors: 75
o
C only.
L
N
FG
Opening Button
Black
White
Green/Yellow
AC power supply cord
10mm[0.39in.]
