PS-3450A Series Hardware Manual
2-30

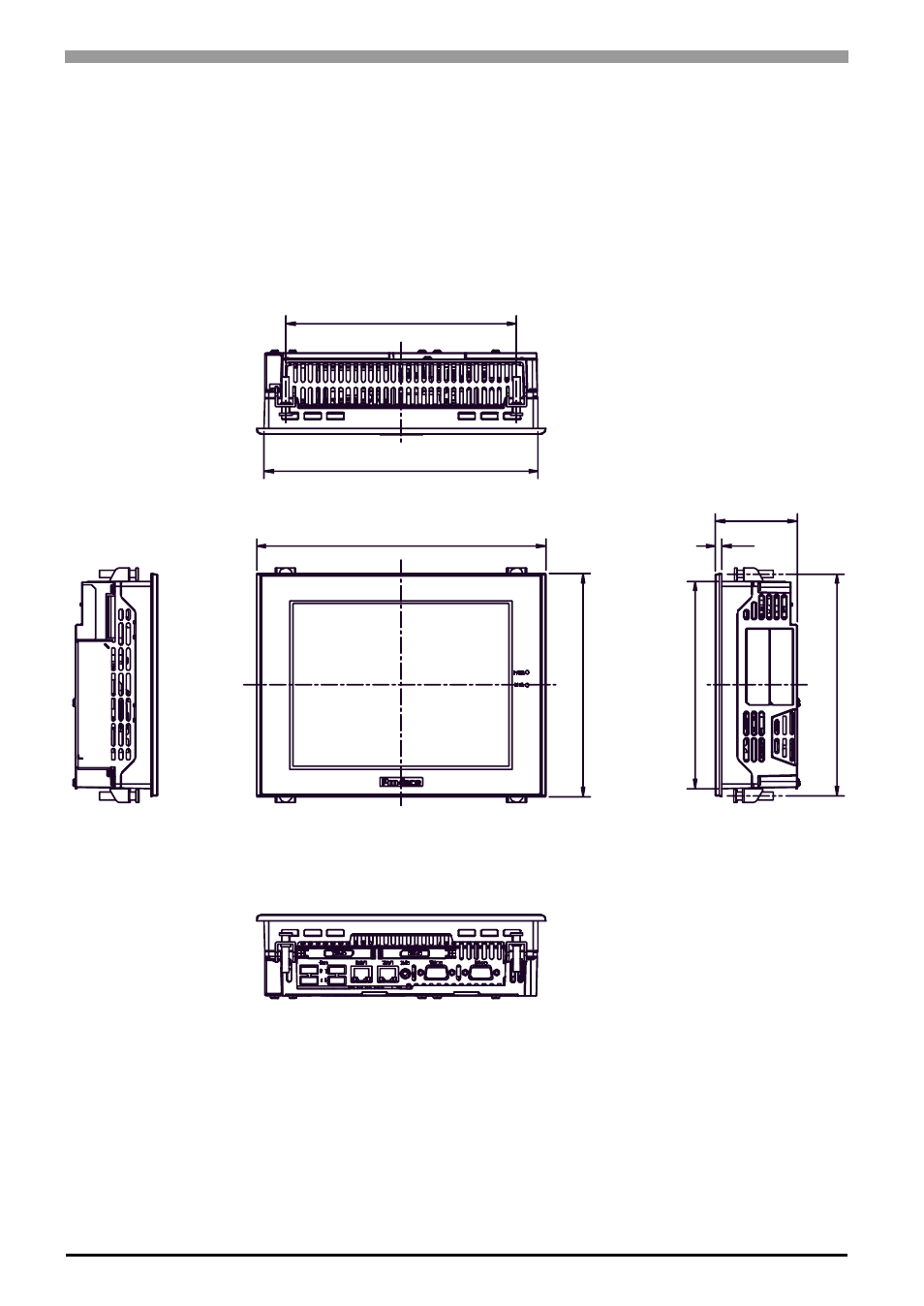

2.2.4 Dimensions
The following dimensions apply to PS-3451A Series.
„ Installation Fasteners Attached Dimensions
‹ The unit NOT attached HDD unit
Unit: mm[in.]
Front
Right Side
Bottom
Left Side
Top
5 [0.20]
218 [8.58]
17
7 [6.97
]
65 [2.56]
183.6 [7.23]
16
5 [6.50
]
17
6.3 [6.94
]
230 [9.06]
