-4-

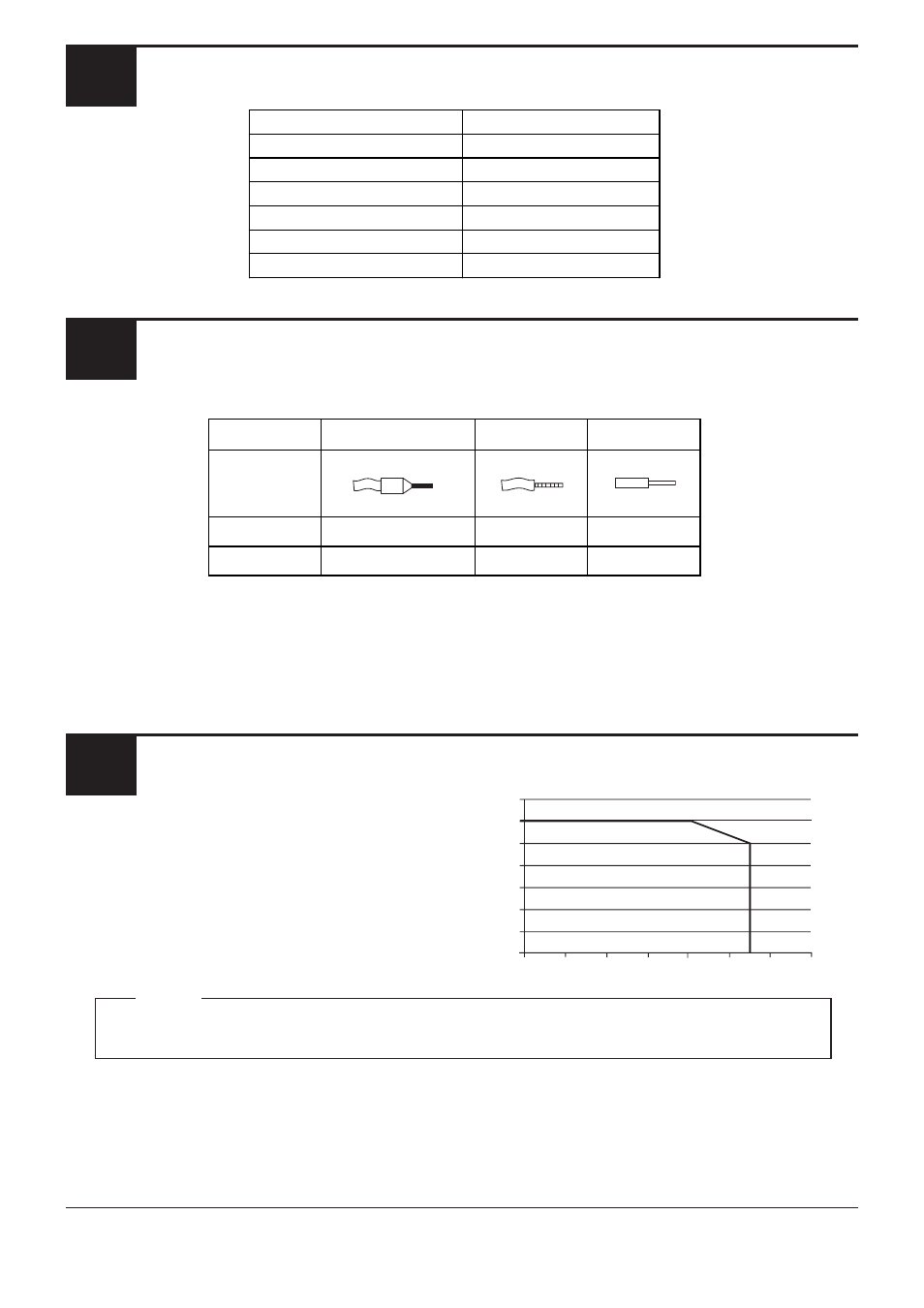

Specifications 3
Wiring 4
The ambient temperature and the power supply
5
Please be aware that Digital Electronics Corporation shall not be held liable by the user for
any damages, losses, or third party claims arising from the use of this product.
Digital Electronics Corporation
8-2-52 Nanko Higashi, Suminoe-ku, Osaka 559-0031, Japan
TEL:
+81-(0)6-6613-3116
FAX: +81-(0)6-6613-5888
URL: http://www.pro-face.com/
Note
• Strip the wire’s plastic covering to expose approximately 6.8mm of wire.
• When using a lay wire, Pro-face recommends you install a pin-type terminal
connector.
• The torque required to secure a wire to a terminal is 0.6 N•m.
The following types of wires can be used:
*1 AWG stands for “American Wire Gauge” and indicates conductor thickness.
The graph shows the power (in relation
to the nominal power) which the ABL-
DRM03024 can deliver continuously,
according to the ambient temperature.
Maximum operating temperature(͠)
P/Pn(%)
© 2005 Digital Electronics Corporation
Item Specifications
Input Voltage AC100 to 240V
Allowable Voltage Range AC85 to 264V
Allowable Frequency Range 47Hz to 63Hz
Nominal Current 1.3A
Output voltage DC24V
Output Power 31W
Wire Type Pin-type Terminal Lay wire Simple Wire
mm
2
0.14 to 1.5 0.14 to 2.5 0.14 to 4
AWG
*1
26 to 16 26 to 14 26 to 12
