HMI5000L Installation Guide

1010-1018 Rev 01 www.maplesystems.com

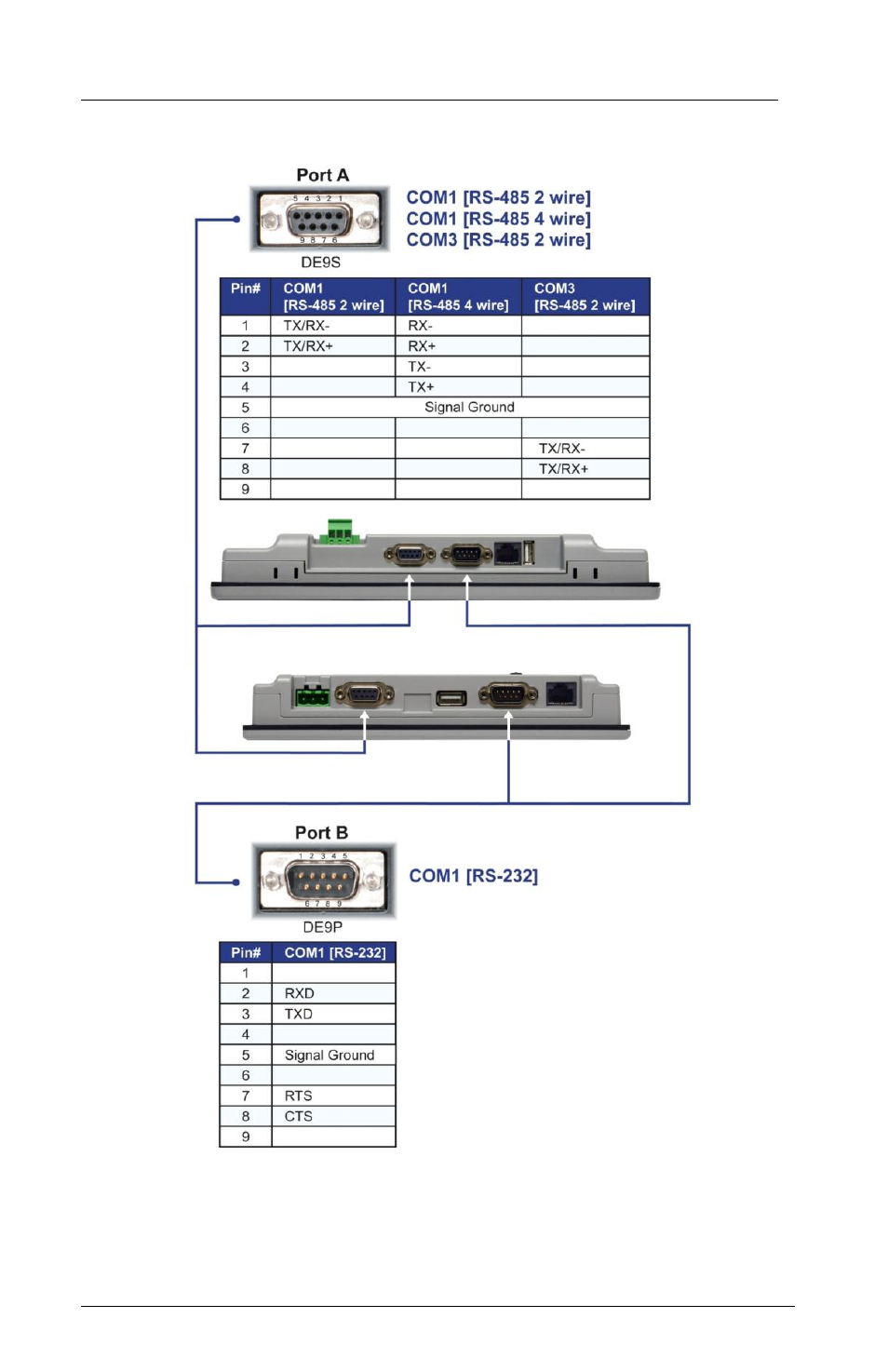

Figure 7b: Serial Port Pinouts HMI5100L, HMI5070L, HMI5070NL

* No Ethernet connection on HMI5070NL

HMI5100L

HMI5070L,
HMI5070NL

*
