HMI5000L Installation Guide

1010-1018 Rev 01 www.maplesystems.com

prevent the gasket from sealing properly. If the panel or mounting

surface is not uniform, thick, flat, stiff, or smooth enough, then a sealant

such as silicone may be required.

NOTE: Clean and deburr the panel cutout before the HMI is installed.

Warning: The HMI requires a stiff, flat, smooth mounting

surface free of blemishes to seal properly to NEMA 4. All

supplied mounting clamps must be used and the panel cannot

flex more than 0.010”.

Mount the HMI to the Panel

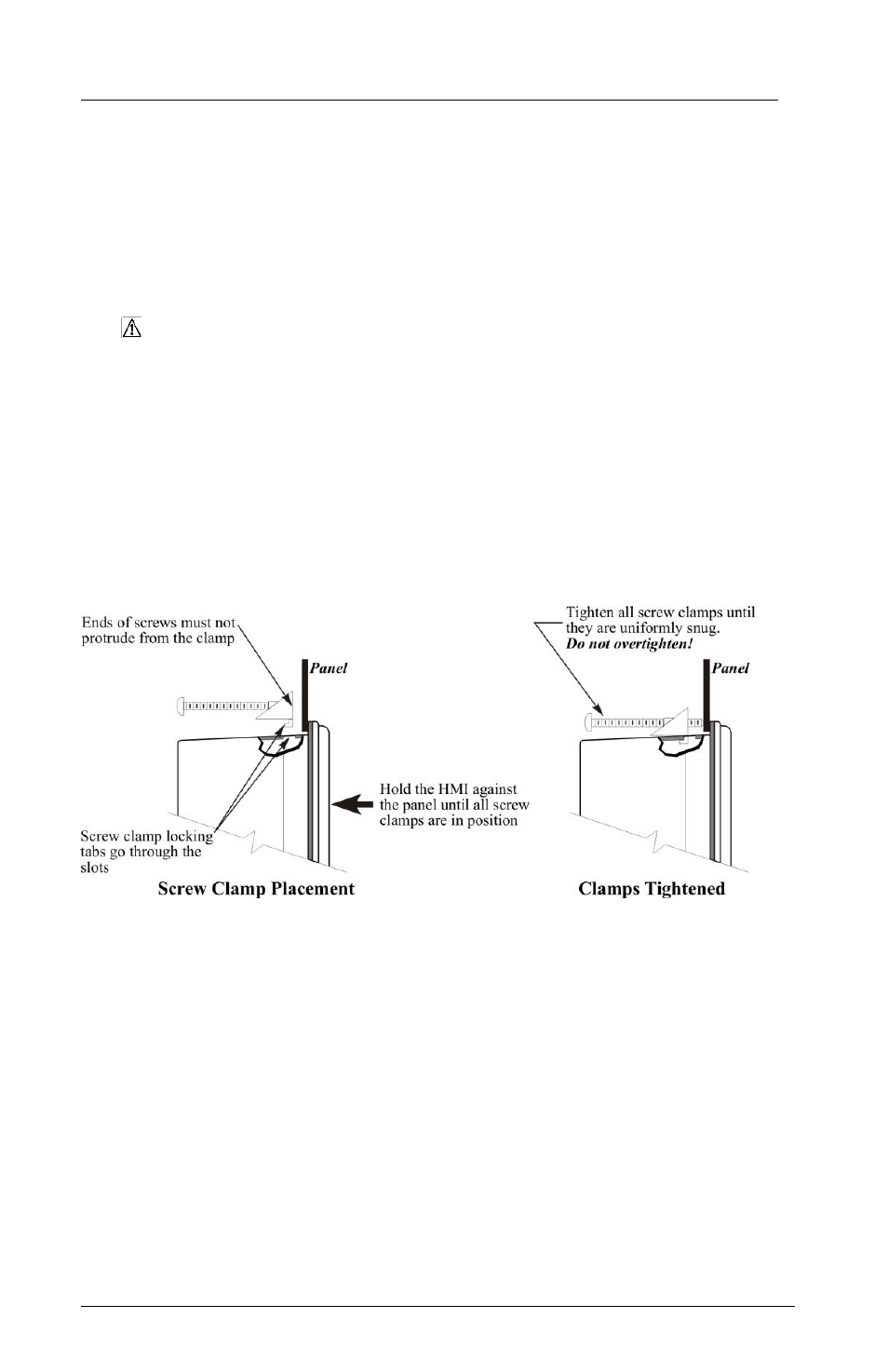

Figure 5: Installing Screw Clamps to the HMI

Note: The clamps for your model may be slightly different than shown

here, but essentially work in the same way.

STEPS:

1. Prepare the clamps for the HMI by inserting the screws into the

clamp as shown above. Position the screws so that the ends don’t

protrude through the clamp’s hole.
