16 HMI5000L Installation Guide
1010-1018 Rev 01 www.maplesystems.com
Maintenance

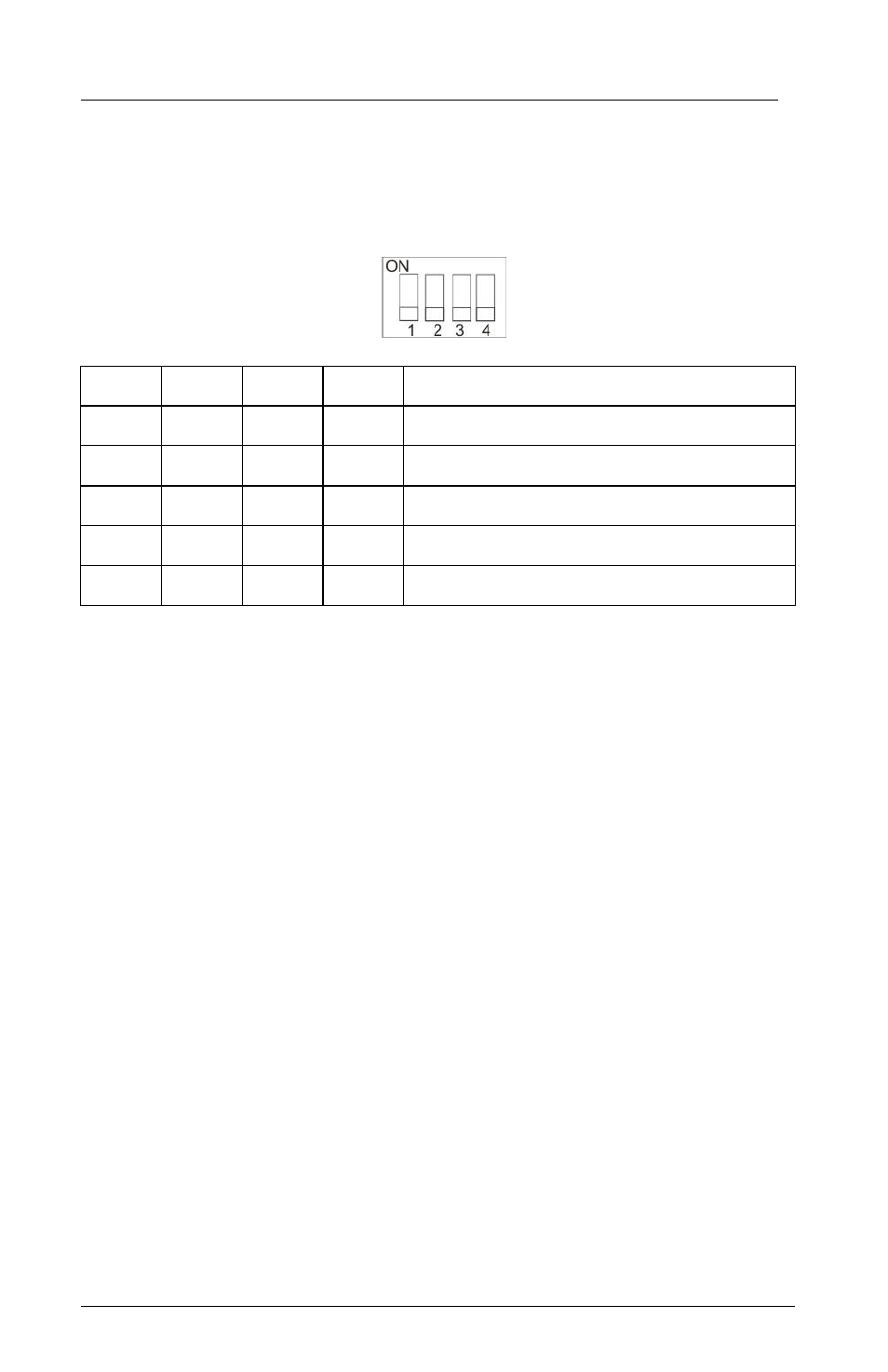

Figure 6: DIP switch positions (power must be cycled on the HMI to enable the DIP
switch mode). (Except HMI5043L, HMI5121XL, HMI5150XL)
SW1 SW2 SW3 SW4 Mode
ON OFF OFF OFF Calibration mode
OFF ON OFF OFF Hide System Toolbar
OFF OFF ON OFF Force into Boot Loader mode
OFF OFF OFF ON Reserved
OFF OFF OFF OFF Normal operation
Touchscreen Calibration mode: This mode allows you to recalibrate
the touchscreen. Units without DIP switches have a Calibration button on
the system toolbar.
Hide System Toolbar: Hides the arrow in the bottom-right corner of the
screen that accesses the System Toolbar (same as “Hide System Toolbar”
in System Parameters and LB9020).
Boot Loader mode: This mode forces the HMI to not execute the
project. This mode is used when replacing or reinstalling the operating
system. All units have an Upgrade Firmware button in the system menus.
Contact Maple Systems for more information.
Fusing Requirements
If the display does not come on within two seconds of power up, remove
power. An internal fuse (except HMI5043L) will prevent damage if the
polarity of the DC power is incorrect. Check wiring to insure proper
connections and try to power up again.
