OMI5000 Series Installation Guide

1010-1013 Rev 01 www.maplesystems.com

The area of the panel or mounting surface where the gasket comes into
contact must be flat and free of scratches, pits, and other features that
prevent the gasket from sealing properly. If the panel or mounting
surface is not uniform, thick, flat, stiff, or smooth enough, then a sealant
such as silicone may be required.

NOTE: Clean and deburr the panel cutout before the OMI is installed.

Warning: The OMI requires a stiff, flat, smooth mounting

surface free of blemishes to seal properly to NEMA 4.

Mount the OMI to the Panel

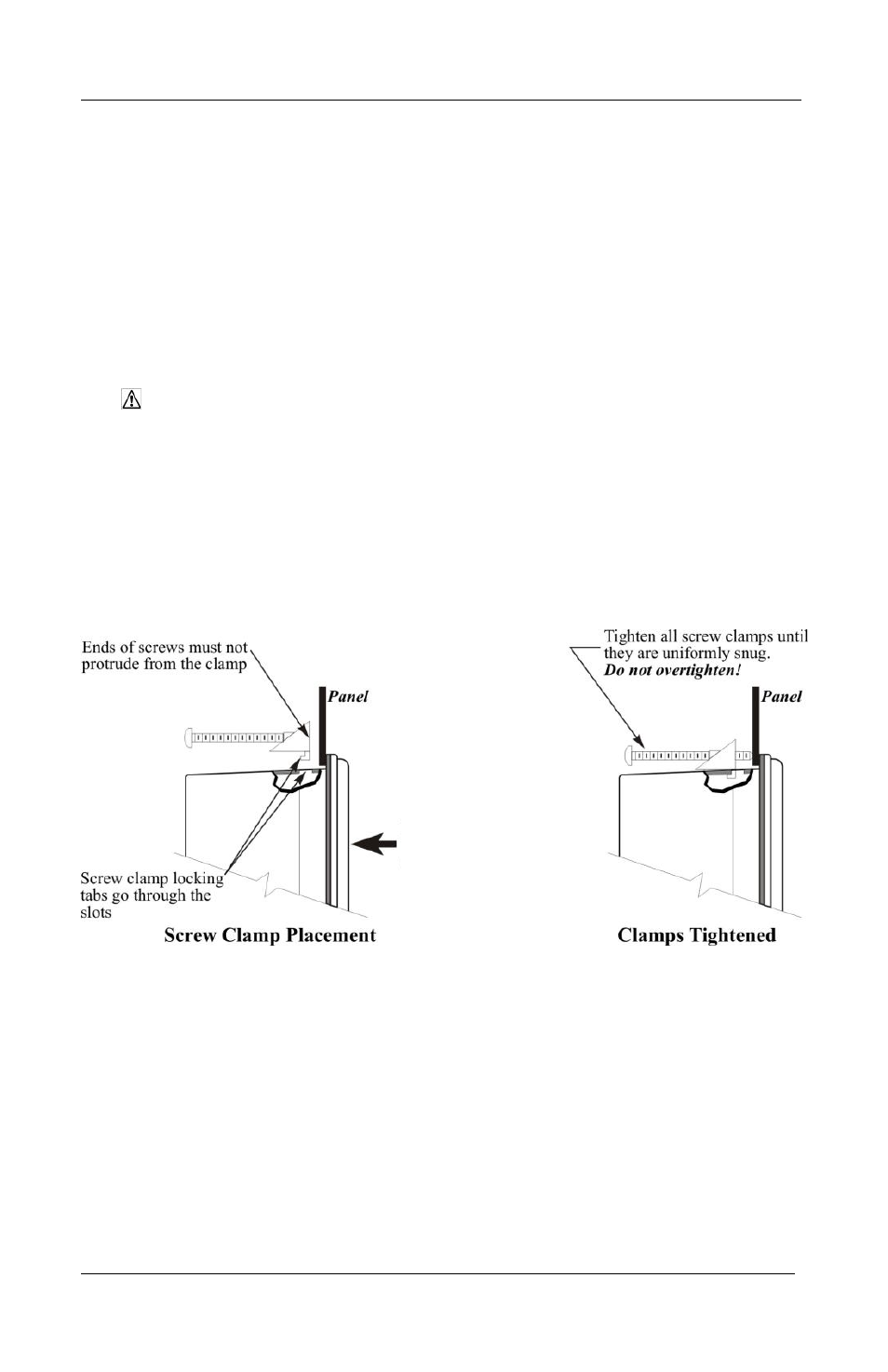

Figure 5: Installing Screw Clamps to the OMI

Note: The clamps for your model may be slightly different than shown
here, but essentially work in the same way.

STEPS:

1. Prepare the clamps for the OMI by inserting the screws into the

clamp as shown above. Position the screws so that the ends don’t
protrude through the clamp’s hole.

Hold the OMI against
the panel until all screw
clamps are in position
