Mounting and Installation

19

Metreau Entry Communicators

5.

Install the (provided) Ferrite clip onto the Ethernet cable (see FIG. 8 on page 12).

6.

Connect the Ethernet cable in the back of the Metreau Entry Communicator.

7.

Insert the Metreau Entry Communicator into the wall box, and push until the device is flush to the
wall.

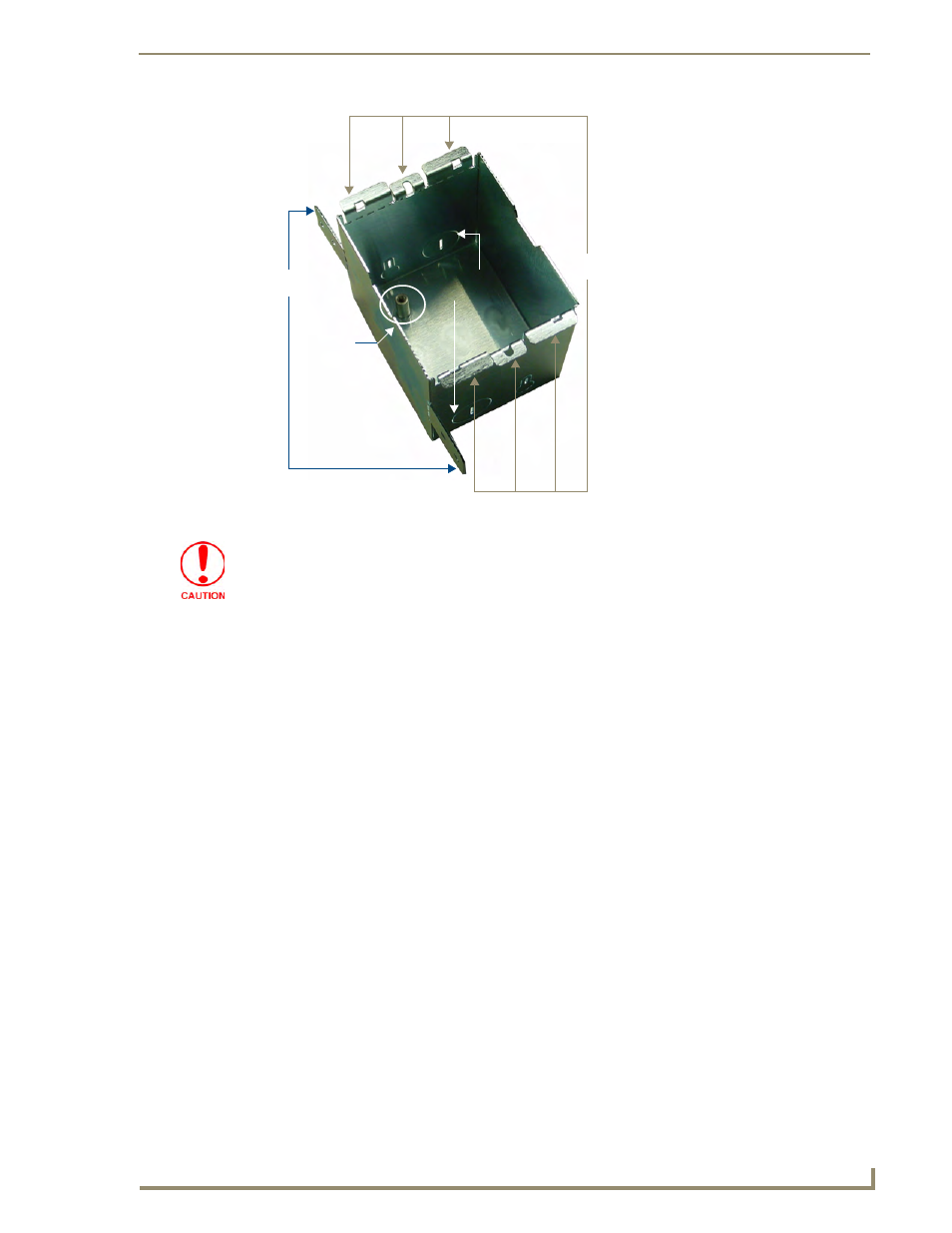

FIG. 17

Metreau Entry Communicators wall box

Expansion clip

installation tabs

Rough-in

installation tabs

Keyhole Ethernet

cable access

Earth

ground

point

The device and wall box must have an Earth ground.
