GAK; Reviewed:
WCH 7/7/2003 Solution & Interoperability Test Lab Application Notes
©2003 Avaya Inc. All Rights Reserved.
3 of 31
intel-lag-notes.doc
Avaya(TM) P882
Gigabit Ethernet Switch
Windows 2000 Server with
Intel PRO/1000MT Dual
Port Server Adapter
IP: 100.0.0.2/24
Gateway: 100.0.0.1
VLAN 100
802.1Q Trunk
with 1000BaseT
LAG
Port 4/4
Port 4/5
Module 2 - M8024-100TX 24-port L2/L3
Module 3 - M8024-100TX 24-port L2/L3
Module 4 - M8008R-1000T 8-port 1000BaseT
Port 3/13
Port 3/12
VLAN 100
802.1Q Trunk
with 100BaseTX
LAG
Windows 2000 Server with
Intel PRO/100+ Dual
Port Server Adapter
IP: 100.0.0.3/24
Gateway: 100.0.0.1
Target Client1
IP: 100.0.0.100/24
Gateway: 100.0.0.1
Target Client2
IP: 100.0.0.101/24
Gateway: 100.0.0.1
Port 2/12 Port 2/13
VLAN 100 Clear Untagged
100BaseTX Links

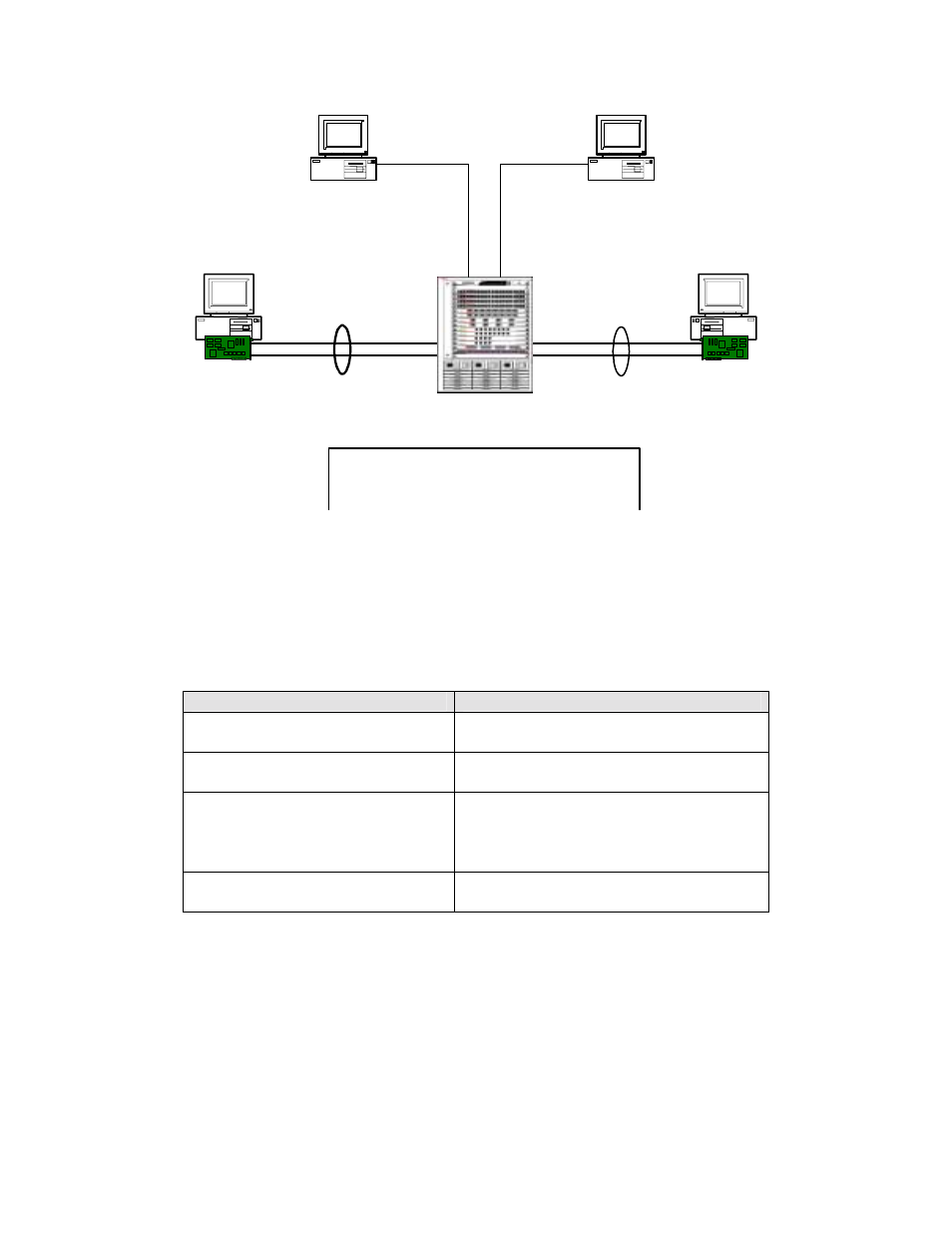

Figure 1: Sample Configuration
2. Equipment and Software Validated
The following equipment and software were used for the sample configuration provided:
Equipment Software
Server with Intel PRO/100+ Dual
Port Server Adapter Microsoft Windows 2000 Server with Intel
Adapter Driver 6.4 with PROSet
Server with Intel PRO/1000MT Dual
Port Server Adapter Microsoft Windows 2000 Server with Intel
Adapter Driver 6.4 with PROSet
Avaya™ P882 Gigabit Ethernet
Switch
2 - M8024-100TX modules
1 - M8008R-1000T modules Version 5.4 Gigabit Ethernet Switch
Software
Two Target PC’s equipped with
3Com 100BaseTX Adapters Microsoft Windows 2000 Professional
3. Avaya™ P882 Switch Web Agent Administration
3.1. Create the Virtual LAN
1. Select
Cajun Router ! L2 Switching !
! ! ! VLANs ! ! ! ! Configuration from the Web Agent.
The VLAN Configuration window opens (Figure 2).
