Avaya P882 - Manual (Page 12)

GAK; Reviewed:
WCH 7/7/2003 Solution & Interoperability Test Lab Application Notes
©2003 Avaya Inc. All Rights Reserved.
12 of 31
intel-lag-notes.doc
3. Enter a unique interface name (e.g vlan100) in the Name field.
4. Select
vlan100 from the VLAN drop-down menu.
5. Enter the IP address 100.0.0.1 in the Network Address field.
6. (OPTIONAL)
Select Enable from the RIP drop-down menu.
7. Click
the APPLY button.
3.6. Create the Hunt Groups
Create the necessary Hunt Groups for the sample configuration via the Web Agent.
1. Select
Hunt Groups under the Cajun Router ! L2 Switching folder. The Hunt Group
configuration window opens (Figure 15).

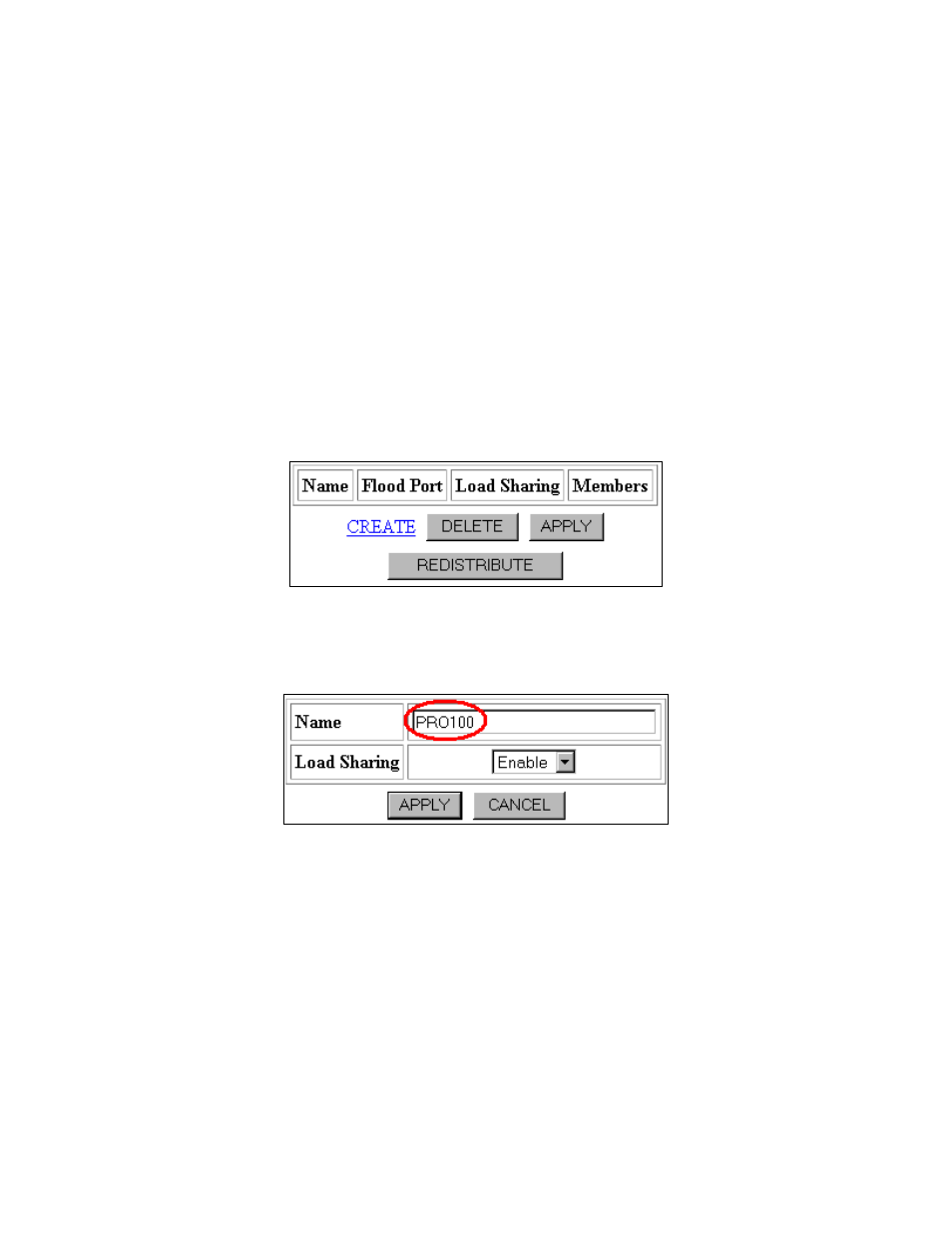

Figure 15: Hunt Group Configuration
2. Select
CREATE. The Create Hunt Group window opens (Figure 16).
Figure 16: Create Hunt Group
3. Enter a unique Hunt Group name (e.g PRO100) in the Name field.
4. Click
the APPLY button.
5. Select
CREATE. The Create Hunt Group window opens (Figure 17).
