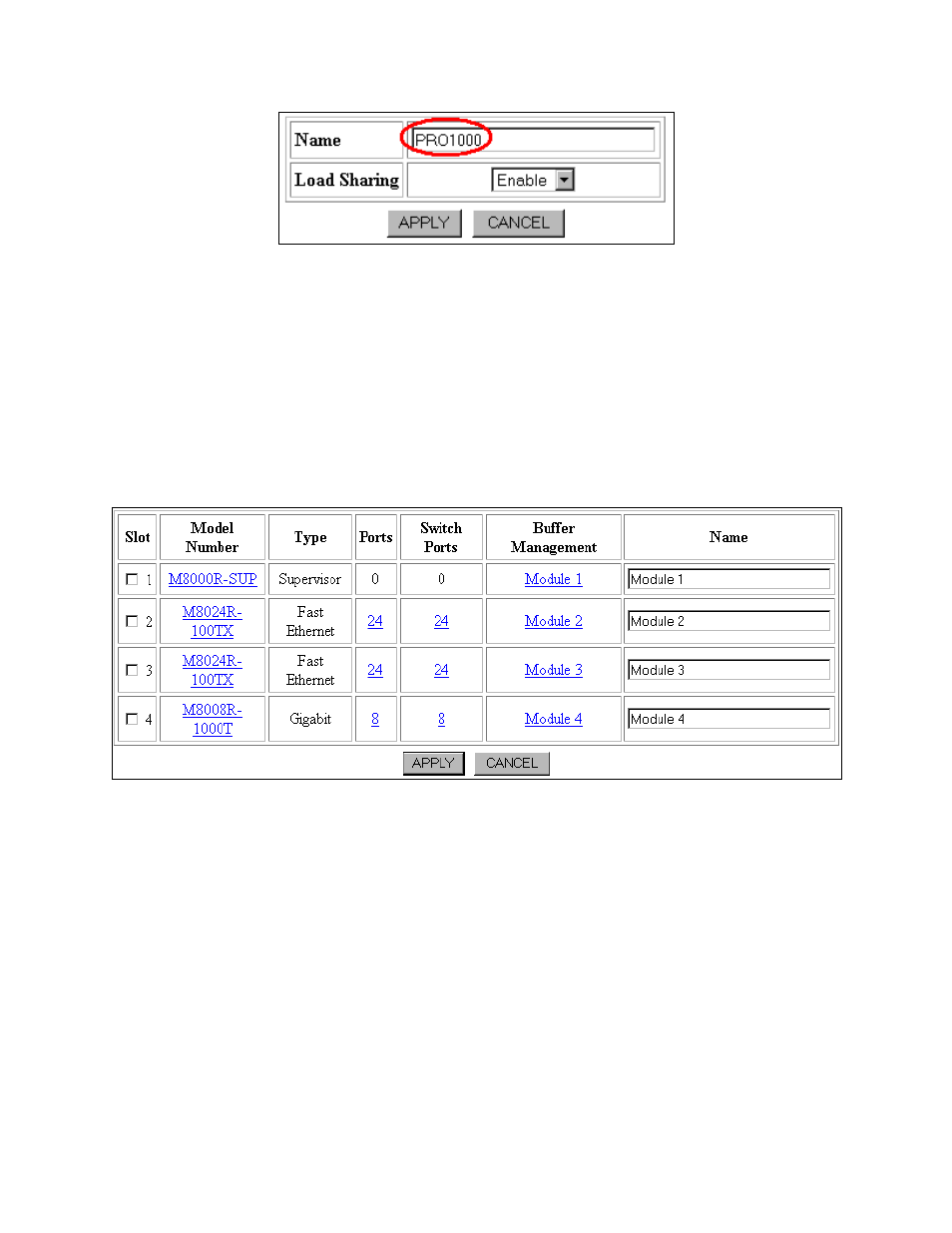

Figure 17: Create Hunt Group
6. Enter a unique Hunt Group name (e.g PRO1000) in the Name field.
7. Click
the APPLY button.
3.7. Disable Module 3 Ports Being Added to the Hunt Group
1. Select
Cajun Router ! Modules & Ports !
! ! ! Configuration from the Web Agent. The
Module Information window opens (Figure 18).
Figure 18: Module Information
2. Select the switch ports for Module 3 from the Ports column. The Physical Port
Configuration – Module 3 window opens (Figure 19).
