GAK; Reviewed:
WCH 7/7/2003

Solution & Interoperability Test Lab Application Notes

20 of 31

intel-lag-notes.doc

3.11. Enable the Module 3 Hunt Group Member Ports

1. Select

Cajun Router ! Modules & Ports !

! Configuration from the Web Agent. The

Module Information window opens (Figure 28).

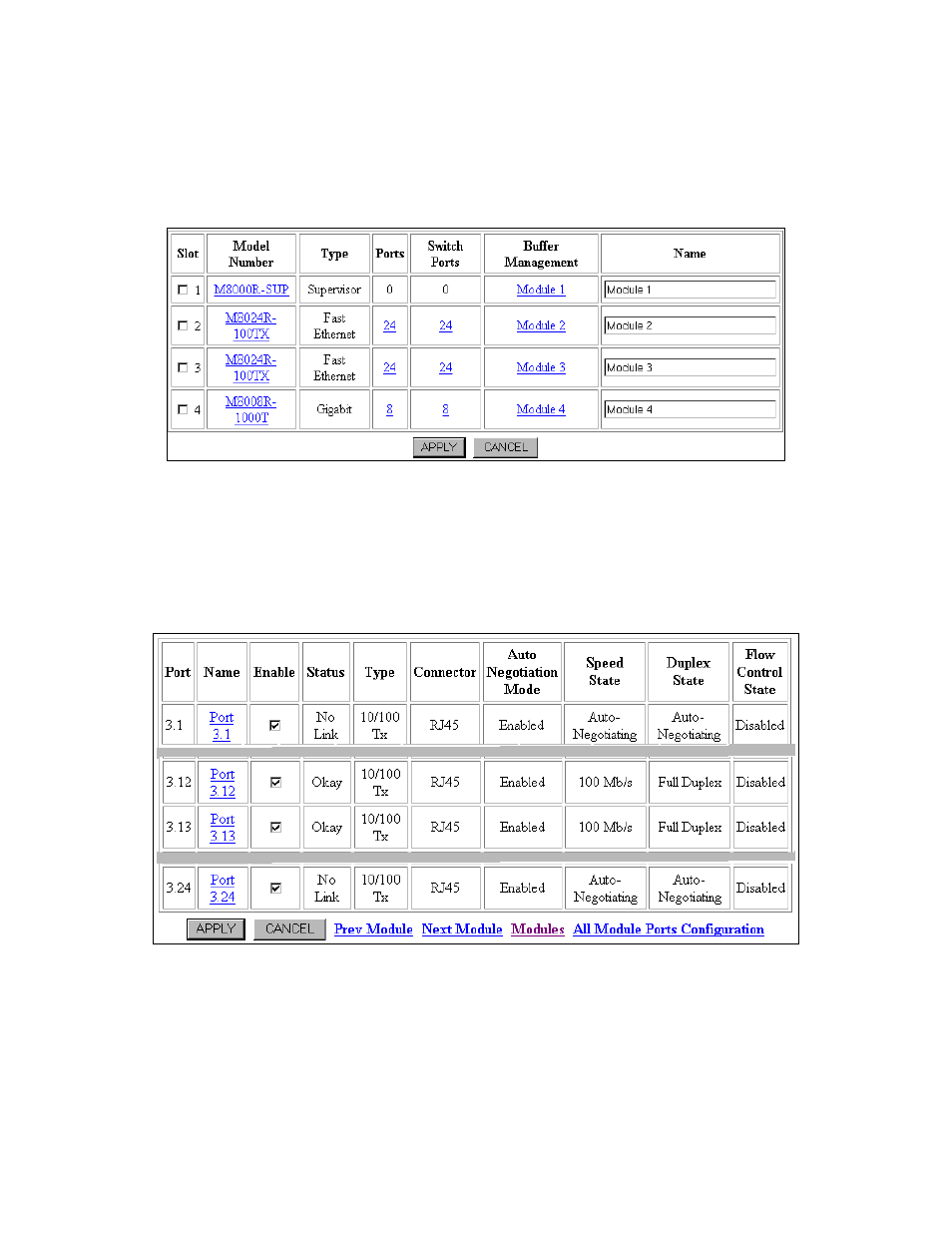

Figure 28: Module Information

2. Select the switch ports for Module 3 from the Ports column. The Physical Port

Configuration – Module 3 window opens (Figure 29).

Note: The Figure 31 image has been reduced for brevity.

Figure 29: Physical Port Configuration – Module 3 (reduced for brevity)

3. Check the checkboxes from the Enable column for Port 3.12 and Port 3.13 to enable each

Hunt Group member port.

4. Click

the

APPLY button.
