C-2 ACCESSORIES C-2
MAGNUM® PRO THRU THE ARM ROBOTIC TORCH
7. Remove Plug Cover ITEM 9. Pull back cable cover
and grip cable behind front hex and crimp. With the
robot axis J5 rotated down 90°, insert hex thru hous-
ing until it passes thru. Push cable cover forward
until it snaps into breakaway disc.
8. Remove 5mm set screw from nose cone air blast
port ITEM 1 and dicard. Install air blast fitting ITEM
2, tighten until snug using 2.5mm allen key.
9. Press Air hose ITEM 6 into air blast fitting ITEM 2 on
nose cone ITEM 7 to seat fully.
10. Assemble the Nose Cone ITEM 7 assembly to the
Housing ITEM 3. Secure with attached Socket
Head Cap screw ITEM 10. Reinstall plug cover
ITEM 9. Align Scribe Marks and secure with remain-
ing Socket Head Caps Screws ITEM 8. Torque to 8-
10 in-lbs. (.9-1.1Nm). (See Figure C.3)

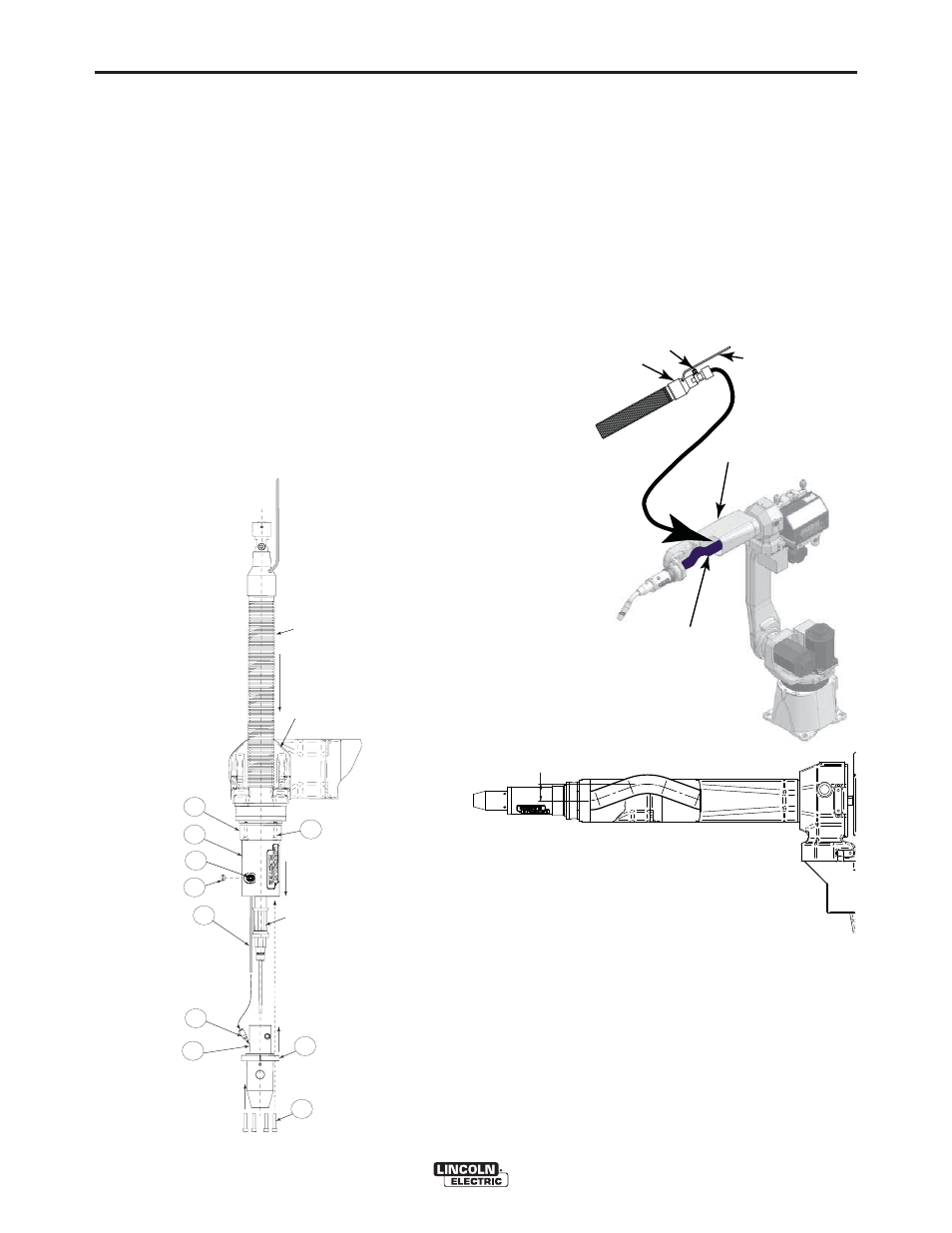

FIGURE C.3
11. Push approximatently 2 inches of air hose into torch
cable on feeder connector end to ensure that air blast
hose is slack at all times.
12. Insert Feeder Connector and air blast hose thru
Robot Arm cavity; secure feeder connection.
Make sure that the cable is not twisted when
installed. Connect gas hose to gas fitting on feed-
er connector. (See Figure C.4) Adjust feeder
location until approximately 1-1/2 inch cable rise
as shown in robot front view below.
FIGURE C.4
1
2
3
4
5
6
7
8
Cable Cover
Hex and Crimp
Robot Axis J5
rotated down 90°
9
10
INSERT FEEDER
CONNECTOR END HERE.
MAKE SURE THE CABLE
IS NOT TWISTED.
ROBOT ARM
FEEDER CONNECTOR END
GAS FITTING
AIR BLAST HOSE
1-1/2 IN.
PROVIDE CABLE RISE (ROBOT FRONT VIEW)
