B-6

INSTALLATION

MAGNUM® PRO THRU THE ARM ROBOTIC TORCH

B-6

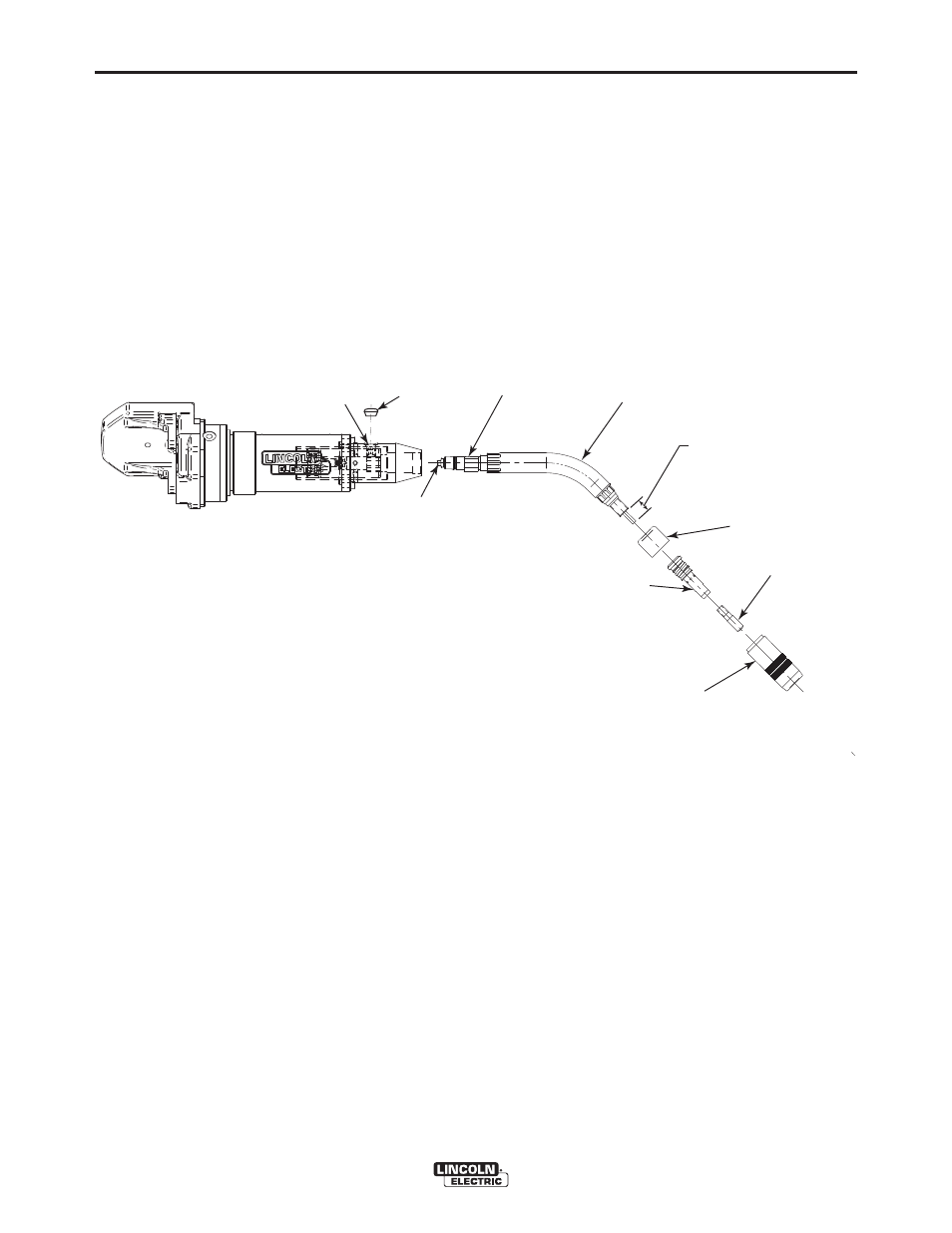

CONNECTING GOOSENECK AND CON-
SUMABLES

(See Figure B.10)

Slide Jump Liner into desired gooseneck assembly
from gooseneck rear. Remove plug cover from nose
cone. Loosen set screw. Insert gooseneck into nose
cone (spot-face facing up) and secure with set screw.
Replace plug cover. Trim jump liner to 5/8" (16.0 mm)
stickout from end of gooseneck. Attach desired
Magnum Pro comsumables to gooseneck.

SET SCREW

SET SCREW

PLUG COVER

PLUG COVER

JUMP LINER

JUMP LINER

SPOT FACE

SPOT FACE
ON GOOSENECK

ON GOOSENECK

GUN TUBE (GOOSENECK)

GUN TUBE (GOOSENECK)

GAS DIFFUSER

GAS DIFFUSER

TIP

TIP

GAS NOZZLE

GAS NOZZLE

INSULATOR

INSULATOR

LINER TRIM

LINER TRIM

LENGTH

LENGTH

5/8" (16.0 mm)

5/8" (16.0 mm)

FIGURE B.10
