AFL2-W10A-N28 Panel PC

Page 36

3.11.5 Stand Mounting

To mount the AFL2-W10A-N28 using the stand mounting kit, please follow the steps

below.

Step 1:

Locate the screw holes on the rear of the AFL2-W10A-N28. This is where the

bracket will be attached.

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the AFL2-W10A-N28 insert the retention screws into

the screw holes and tighten them.

S

te

p

0

:

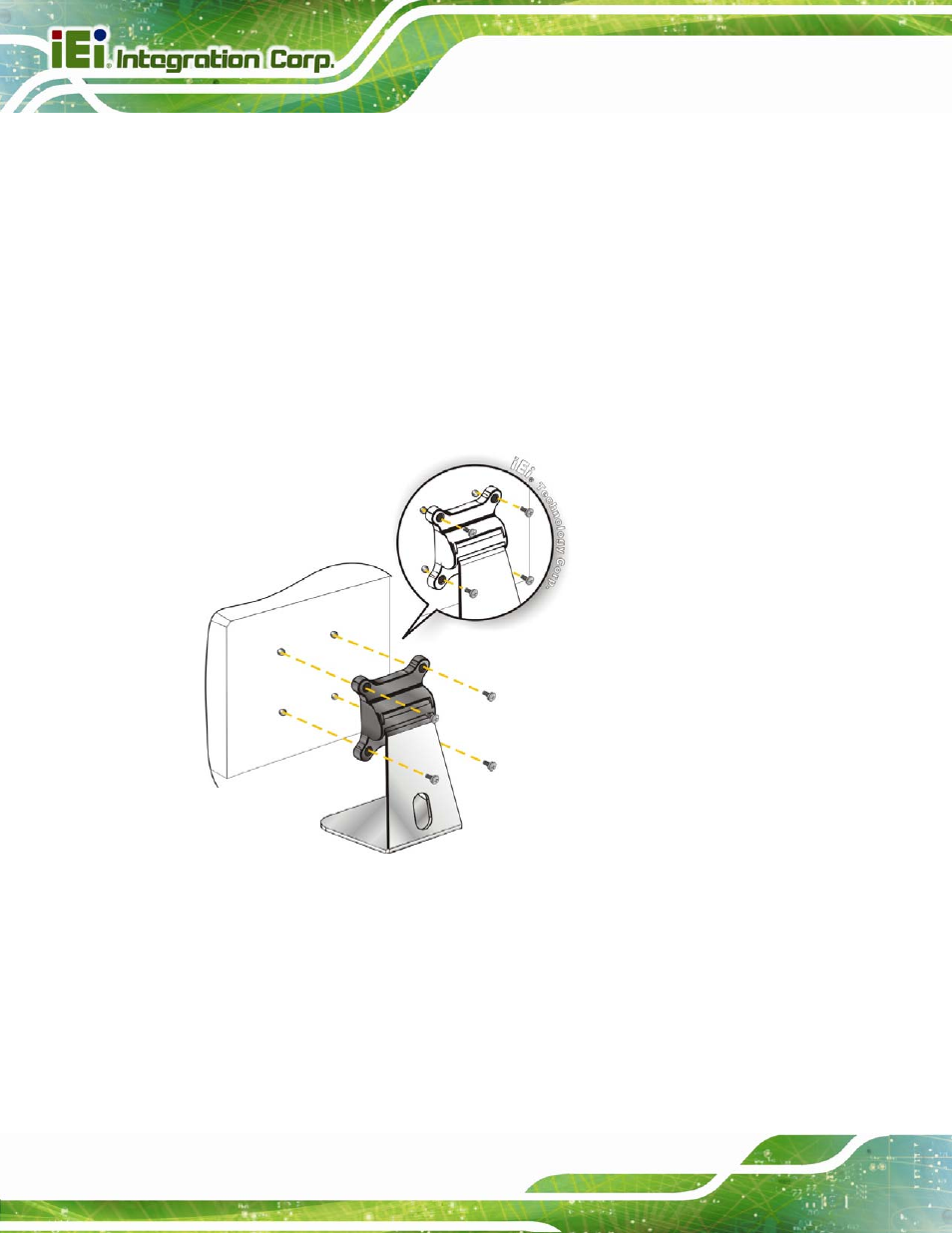

Figure 3-22: Stand Mounting (Stand-A/Bxx)

3.11.6 V-Stand Mounting

To mount the AFL2-W10A-N28 using the V-Stand mounting kit, please follow the steps

below.
