AFL2-W10A-N28 Panel PC
Page 109
Step 2: Lift the internal cover off the AFL2-W10A-N28.
Step 3: The internal parts will all be viewable.

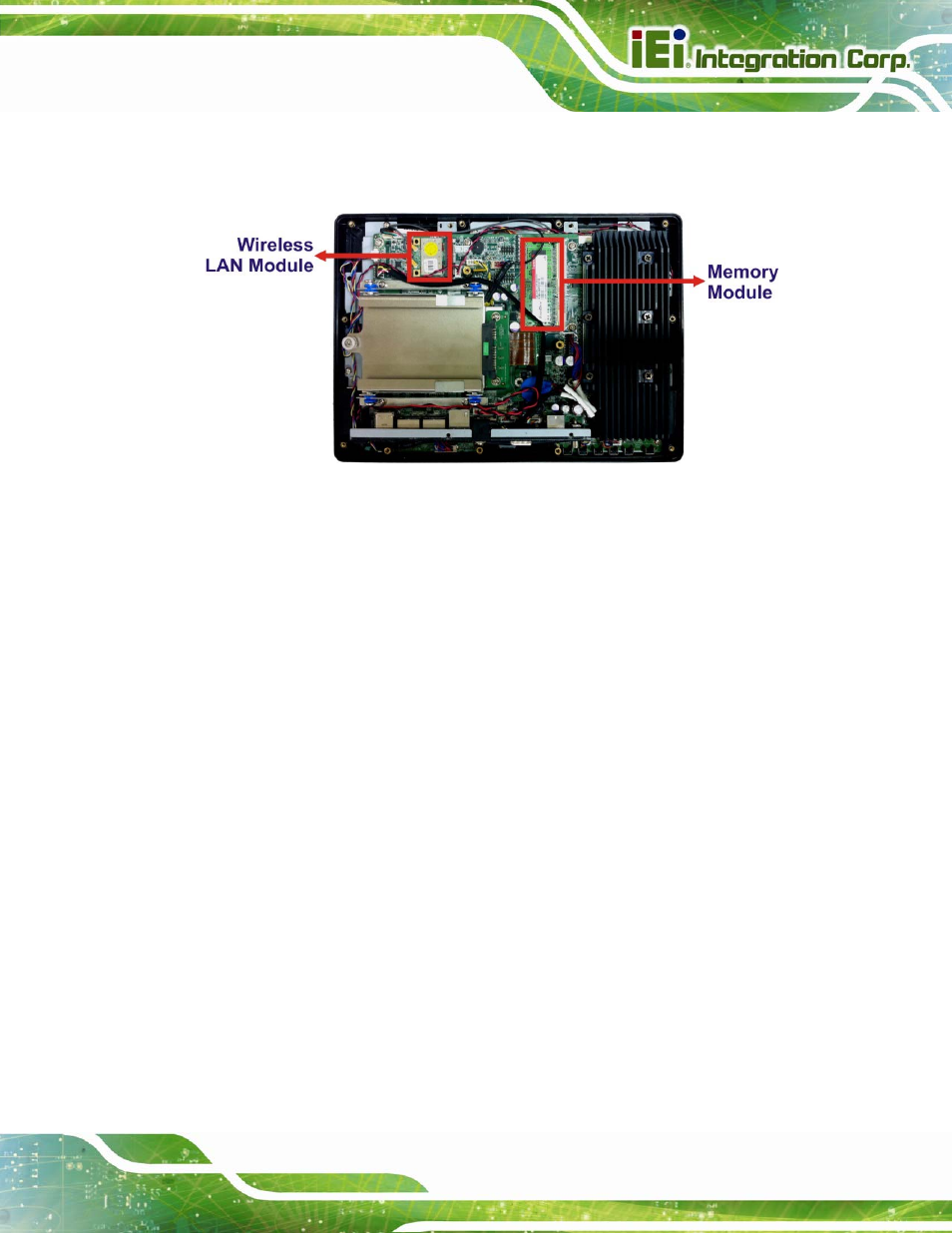

Figure 6-3: Internal Components
6.5 Replacing Components
6.5.1 Memory Module Replacement
The flat bezel panel PC is preinstalled with one 2.0 GB DDR3 memory module. If the
memory module fails, follow the instructions below to replace the memory module.
Step 1: Follow all anti-static procedures. See Section
9
6.2.
Step 2: Turn off the power. See Section
9
6.3.
Step 3: Remove the back cover. See Section
9
6.4.1 above.
Step 4: Remove the internal back cover. See Section
9
6.4.2 above.
Step 5: Locate the DDR3 SO-DIMM on the motherboard.
Step 6: Remove the DDR3 memory module by pulling both the spring retainer clips
outward from the socket.
Step 7: Grasp the DDR3 memory module by the edges and carefully pull it out of the
socket.
