Step 8: Install the new DDR3 memory module by pushing it into the socket at an angle
(
9
Figure 6-4).
Step 9: Gently pull the spring retainer clips of the SO-DIMM socket out and push the
rear of the DDR memory module down (
9
Figure 6-4).
Step 10: Release the spring retainer clips on the SO-DIMM socket. They clip into place
and secure the DDR memory module in the socket.

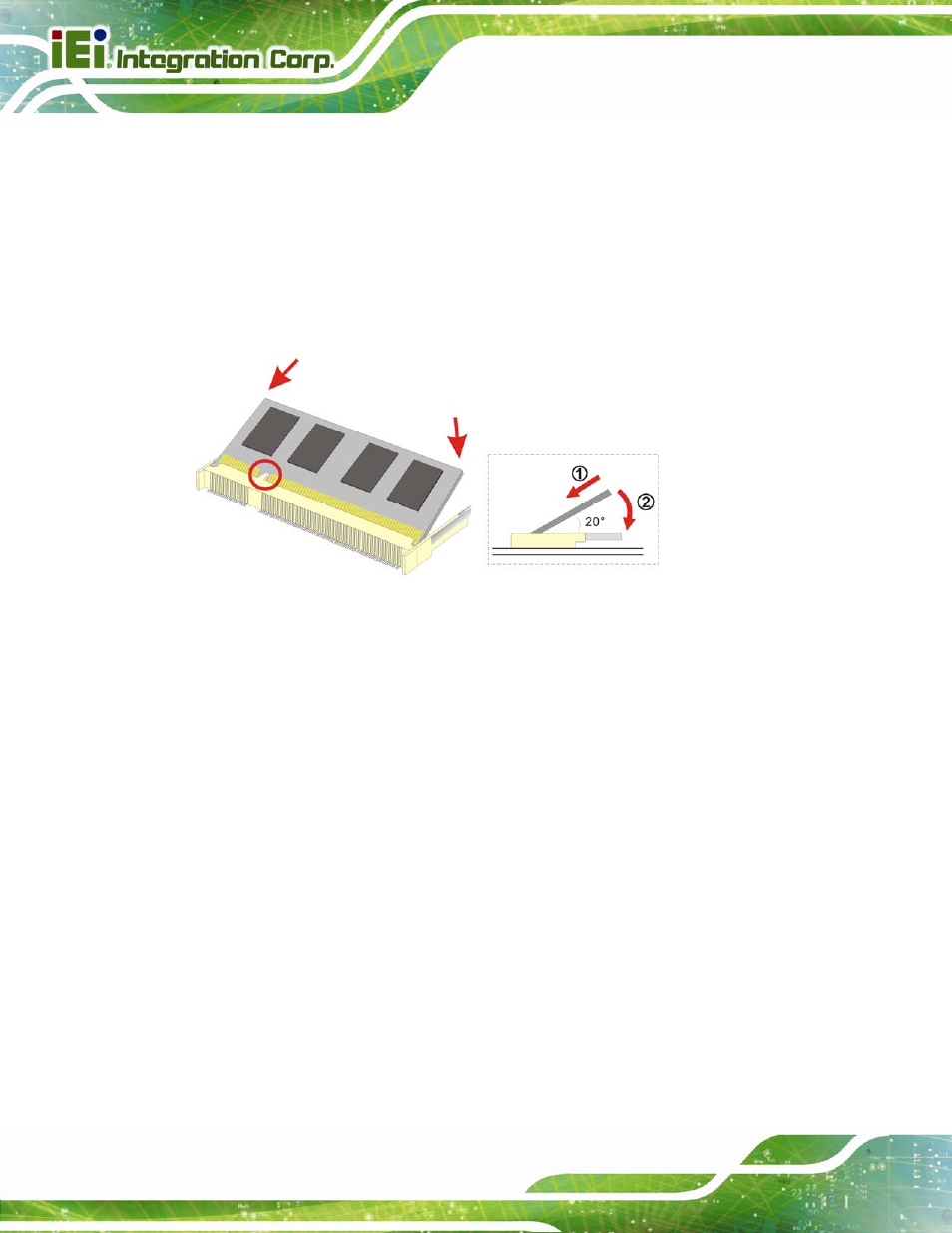

Figure 6-4: DDR SO-DIMM Module Installation
Step 11: Replace the internal cover and secure it to the chassis using the previously
removed retention screws.
Step 12: Replace the back cover and secure it using the previously removed retention
screws. Step 0:
6.5.2 WLAN Card Replacement
The AFL2-W10A-N28 has one WLAN card slot. To replace the WLAN card, follow the
instructions below.
Step 1: Follow all anti-static procedures. See Section
9
6.2.
Step 2: Turn off the power. See Section
9
6.3.
Step 3: Remove the back cover. See Section
9
6.4.1 above.
Step 4: Remove the internal back cover. See Section
9
6.4.2 above.
