AFL2-W10A-N28 Panel PC

Page 108

Step 3:

Remove a total of eleven (11) retention screws from the back cover (

9

Figure 6-1).

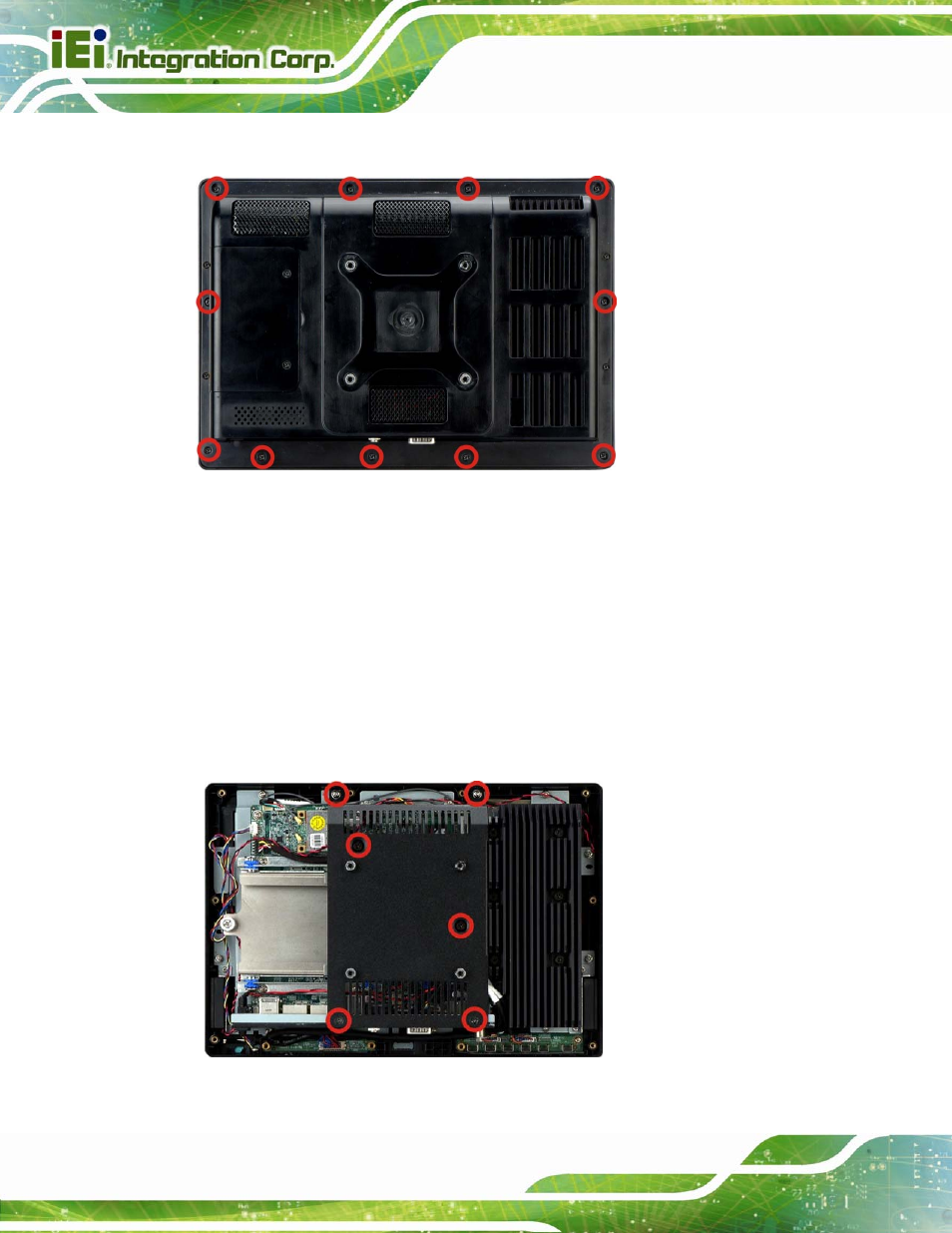

Figure 6-1: Back Cover Retention Screws

Step 4:

Carefully separate the back cover from the chassis and lift the cover clear of the

device

Step 0:

6.4.2 Removing the Internal Cover

To remove the internal cover, follow the steps below.

Step 1:

Remove the six (6) retention screws securing the internal cover to the chassis

(

9

Figure 6-2).

Figure 6-2: Internal Cover Retention Screws
