AFL-F08A-N270 Panel PC

Page 45

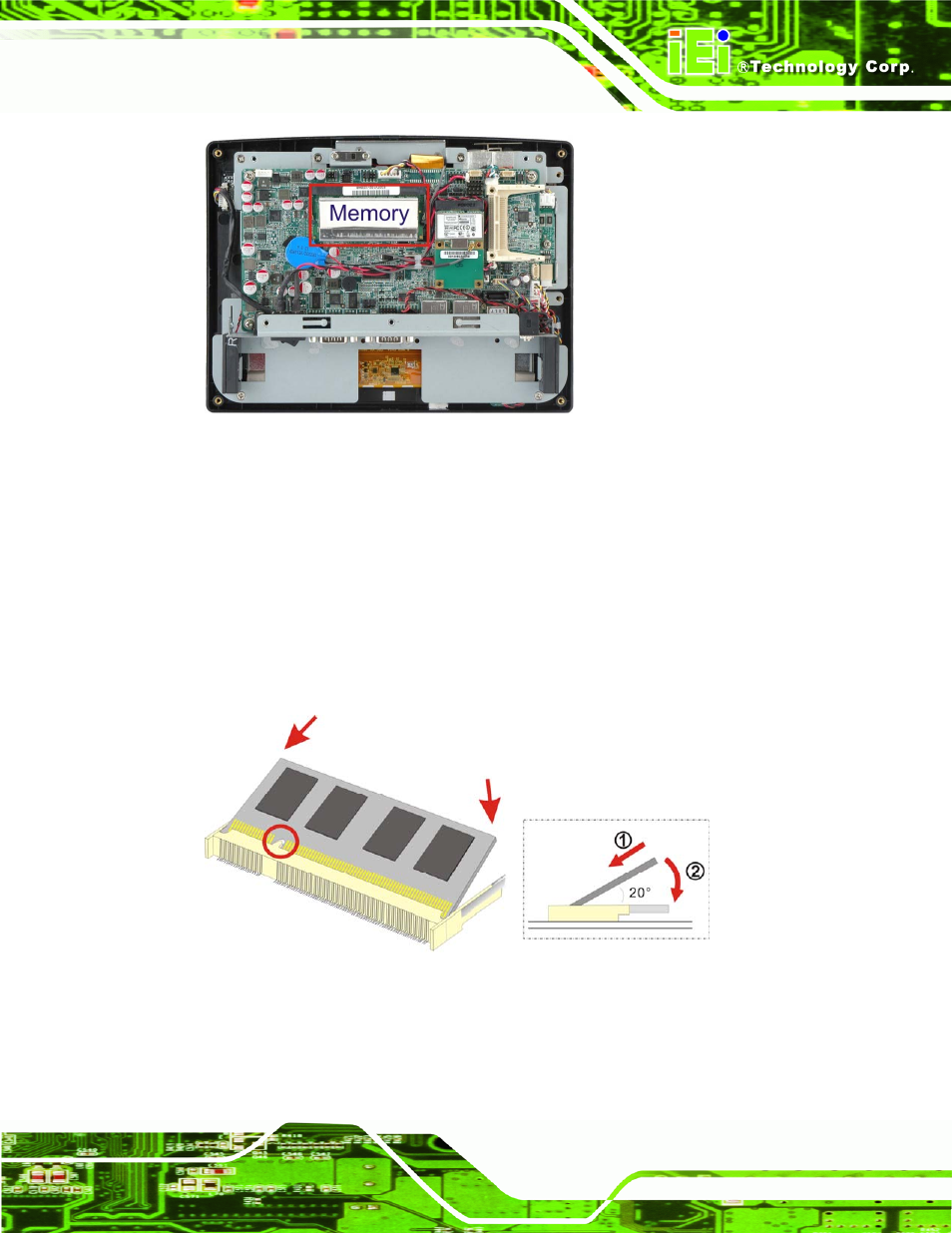

Figure 4-1: AFL-F08A-N270 SO-DIMM Socket Location

Step 2:

Remove the SO-DIMM by pulling both the spring retainer clips outward from the

socket.

Step 3:

Grasp the SO-DIMM by the edges and carefully pull it out of the socket.

Step 4:

Install the new SO-DIMM by pushing it into the socket at an angle (

77

Figure 4-2

).

Step 5:

Push the SO-DIMM down. The spring retainer clips on the SO-DIMM socket clip

into place and secure the SO-DIMM in the socket.

Step 0:

Figure 4-2: SO-DIMM Module Installation
