AFL-F08A-N270 Panel PC
Page 28

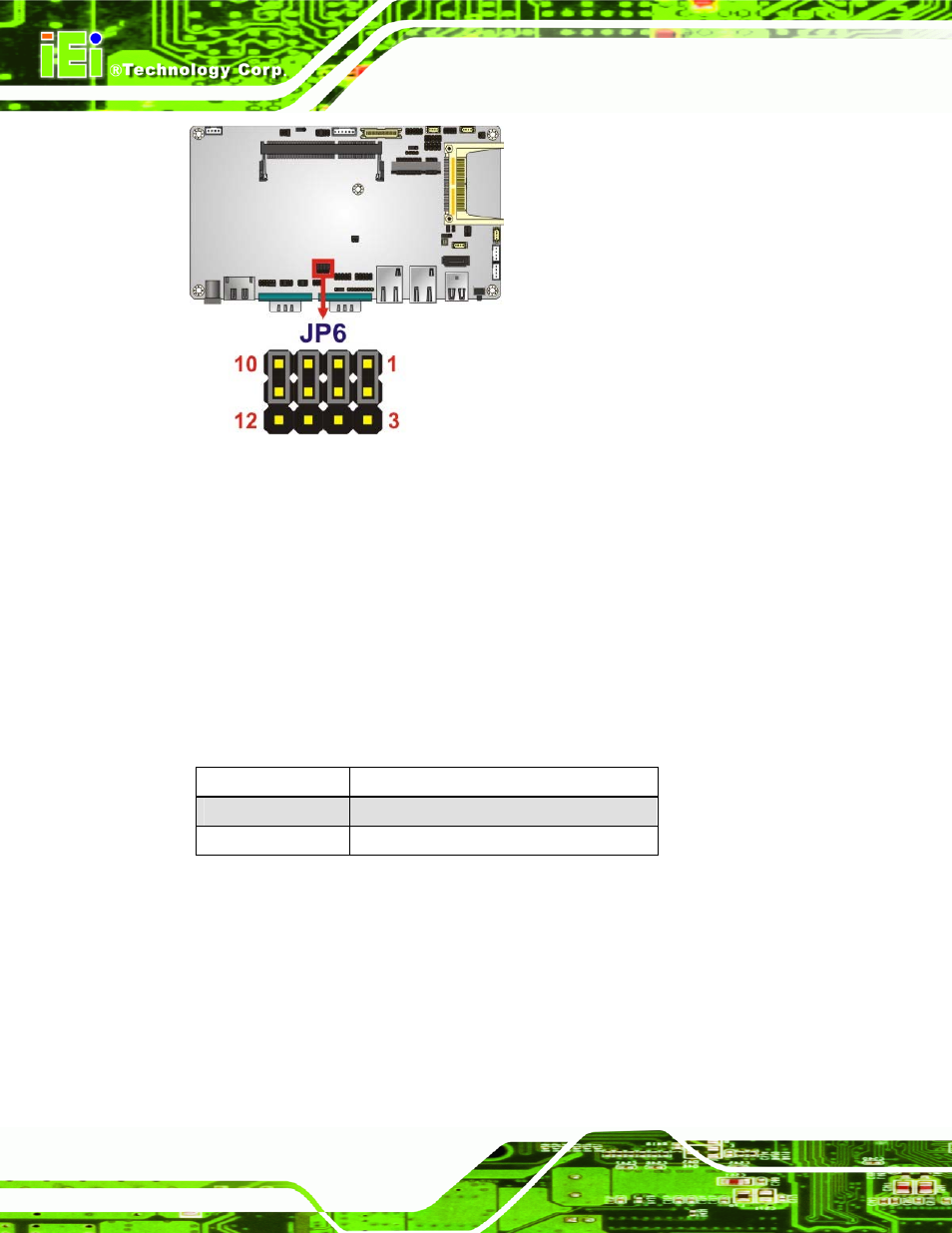

Figure 3-12: COM3 RS-232/422/485 Serial Port Select Jumper Location
3.7.9 CompactFlash® Setup
Jumper Label: JCF1
Jumper Type: 2-pin header
Jumper Settings: See
7
Table 3-11
Jumper Location:
See
7
Figure 3-13
The CompactFlash® slot is connected through an IDE connection. This jumper sets the
CompactFlash® card as the master or slave IDE device.
Setting Description
Open Master (Default)
Short Slave
Table 3-11: CompactFlash® Setup Jumper Settings
